Water Ring Pelletizing Production Line: Complete Guide to Equipment Components, Production Process, Features, and Applications
Introduction
With the rapid growth of the plastics recycling industry, plastic compounding, masterbatch manufacturing, and biodegradable material production, the demand for efficient and intelligent pelletizing equipment continues to increase. Among various pelletizing technologies, the Water Ring Pelletizing Production Line has become one of the most widely used systems due to its compact structure, continuous operation, excellent pellet quality, and high degree of automation.
As a professional Plastic Extrusion Production Line Manufacturer, we specialize in designing and manufacturing complete Water Ring Pelletizing Systems for PP, PE, EVA, TPR, TPE, TPU, ABS, PS, PC, engineering plastics, recycled plastics, filler masterbatch, color masterbatch, and biodegradable materials.
Our Water Ring Pelletizing Machine integrates advanced extrusion technology, precision pellet cutting, intelligent PLC control, and energy-efficient operation, providing customers worldwide with reliable and high-performance pelletizing solutions.
What Is a Water Ring Pelletizing Production Line?
A Water Ring Pelletizing Production Line is an advanced plastic extrusion system that converts molten polymer into uniform plastic pellets by cutting the material directly at the die face while simultaneously cooling it with a circulating water ring.
Unlike traditional strand pelletizing systems, water ring pelletizing eliminates the need for long cooling tanks and strand handling equipment. Molten plastic exits through the die plate and is immediately cut into pellets by high-speed rotary knives. Cooling water surrounding the die rapidly solidifies the pellets and transports them to the drying system.
The complete production process includes:
Raw Material Feeding → Extrusion → Plasticizing → Melt Filtration → Water Ring Pelletizing → Cooling → Dewatering → Vibrating Screening → Automatic Conveying → Storage → Packaging
This technology is especially suitable for plastics with excellent melt flow characteristics and is widely used in both virgin material processing and plastic recycling industries.
Main Components of Water Ring Pelletizing Production Line
A complete Plastic Pelletizing Production Line consists of several integrated systems designed to achieve continuous and stable production.
1. Automatic Feeding System
The automatic feeding system ensures uninterrupted material supply throughout the production process.
Main Equipment
l Vacuum Loader
l Screw Conveyor
l Hopper Loader
l Automatic Dosing System (Optional)
l Loss-in-Weight Feeder (Optional)
Functions
l Continuous raw material feeding
l Accurate material dosing
l Reduced labor costs
l Stable production capacity
l Improved automation
Suitable Materials
l Virgin plastic pellets
l Recycled plastic flakes
l Plastic regrind
l Powder materials
l Calcium carbonate
l Talc
l Color masterbatch
l Additives
2. High-Performance Extruder
The extruder is the core equipment of the Plastic Pelletizing Machine.
Different materials require different extrusion configurations.
Single Screw Extruder
Suitable for:
l PE
l PP
l EVA
l LDPE
l HDPE
l LLDPE
Advantages
l Stable extrusion
l High output
l Low energy consumption
l Easy maintenance
l Long service life
Twin Screw Extruder
Recommended for:
l Color Masterbatch
l Filler Masterbatch
l Engineering Plastics
l Plastic Compounds
l Biodegradable Materials
Advantages
l Excellent mixing performance
l Uniform plasticizing
l Superior dispersion
l High production efficiency
The screw design can be customized according to material characteristics and production requirements.
3. Hydraulic Screen Changer
The Hydraulic Screen Changer removes impurities from molten plastic before pelletizing.
Functions
l Continuous filtration
l Automatic screen replacement
l Stable melt pressure
l Improved pellet quality
l Protection of die plate
For recycled plastic processing, a double-piston hydraulic screen changer is highly recommended.
4. Melt Pump (Optional)
For high-capacity production, a gear-type melt pump is installed between the screen changer and die head.
Advantages
l Stable melt pressure
l Consistent extrusion
l Better pellet uniformity
l Reduced pressure fluctuation
l Increased production capacity
5. Water Ring Pelletizing Head
The Water Ring Pelletizer is the most important component of the production line.
Working Principle
Molten plastic exits through multiple die holes.
A rotating knife cuts the material immediately at the die face.
Cooling water surrounds the die plate and instantly cools the pellets.
The pellets are transported by circulating water into the centrifugal dryer.
Main Components
l Die Plate
l Rotary Knife
l Knife Holder
l Water Ring Chamber
l Water Circulation Cover
l Cutting Motor
Advantages
l Uniform pellet size
l Smooth pellet surface
l Excellent roundness
l High cutting precision
l Continuous operation
6. Water Circulation Cooling System
The cooling system consists of:
l Stainless Steel Water Tank
l Water Pump
l Heat Exchanger
l Water Filter
l Temperature Controller
Functions
l Instant pellet cooling
l Stable pellet formation
l Continuous circulation
l Energy-efficient cooling
Automatic temperature control ensures stable pellet quality throughout production.

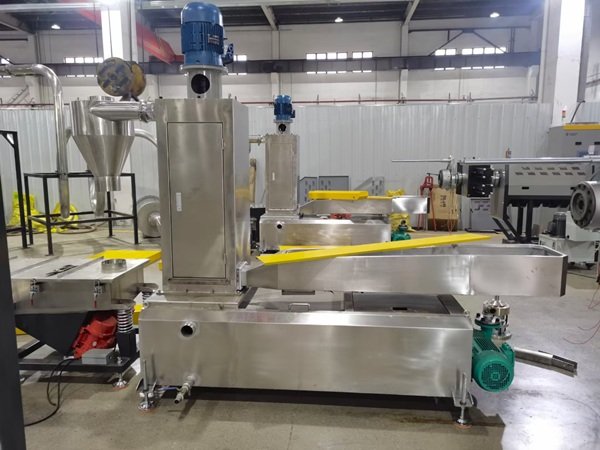

7. Centrifugal Dewatering Machine
After pelletizing, pellets enter the Centrifugal Dryer.
Functions
l Remove surface moisture
l Prevent pellet sticking
l Improve drying efficiency
l Reduce moisture content
The centrifugal dryer operates continuously with low energy consumption.
8. Vibrating Screening Machine
The vibrating screen separates qualified pellets from fines and oversized particles.
Benefits
l Uniform pellet size
l Improved product appearance
l Better packaging quality
l Reduced dust content
9. Air Conveying System
Qualified pellets are transported pneumatically into storage silos.
Advantages
l Dust-free conveying
l Automatic transportation
l Stable operation
l Reduced manual handling
10. Storage Silo and Automatic Packing System
The final section includes:
l Stainless Steel Storage Silo
l Buffer Hopper
l Automatic Weighing Machine
l Bag Filling Machine
l Bag Sewing Machine
l Robot Palletizer (Optional)
This fully automated packaging system significantly improves production efficiency.
Production Process of Water Ring Pelletizing Production Line
Step 1: Raw Material Preparation
Raw materials are selected according to product requirements.
Typical materials include:
l PE
l PP
l ABS
l EVA
l TPE
l TPU
l Engineering plastics
l Plastic recycling materials
l Calcium carbonate
l Additives
l Color masterbatch
Step 2: Automatic Feeding
The automatic feeding system continuously transports raw materials into the extruder.
Benefits include:
l Stable feeding
l Accurate dosing
l Continuous production
l Lower labor costs
Step 3: Plasticizing and Extrusion
Inside the extruder:
l Materials are heated
l Melted
l Mixed
l Plasticized
l Pressurized
The screw ensures homogeneous melting before the material reaches the die head.
Step 4: Melt Filtration
Molten plastic passes through the hydraulic screen changer.
Functions
l Remove contaminants
l Improve pellet quality
l Protect die holes
l Ensure continuous production
Step 5: Water Ring Pelletizing
The molten plastic exits through the die plate.
The rotary cutter immediately cuts the melt into pellets.
Cooling water rapidly solidifies the pellets.
Compared with strand pelletizing, this process offers:
l Higher automation
l Smaller installation space
l Faster production
l Better pellet consistency
Step 6: Dewatering
Pellets enter the centrifugal dryer.
Surface moisture is removed efficiently.
Dry pellets are then transferred to the vibrating screen.
Step 7: Vibrating Screening
Qualified pellets are separated from:
l Dust
l Broken pellets
l Oversized pellets
Only qualified pellets proceed to packaging.
Step 8: Automatic Conveying and Packaging
Finished pellets are transported into storage silos and packed automatically.
Packaging options include:
l 25 kg bags
l Jumbo bags
l Bulk storage
l Automatic palletizing
Advantages of Water Ring Pelletizing Production Line
High Production Capacity
Production capacity ranges from:
l 100 kg/h -2000 kg/h
Excellent Pellet Quality
Finished pellets feature:
l Uniform size
l Smooth surface
l High density
l Consistent shape
l Low dust content
Compact Equipment Layout
Compared with traditional strand pelletizing systems:
l Less installation space
l Shorter production line
l Easier maintenance
l Faster installation
Intelligent PLC Control
The entire production line can be equipped with:
l Siemens PLC
l Siemens Touch Screen
l ABB Inverter
l Schneider Electrical Components
Functions include:
l Automatic temperature control
l Pressure monitoring
l Production data recording
l Alarm system
l Remote diagnosis (optional)
Energy Saving
Advanced screw design and optimized heating systems reduce energy consumption while maintaining high output.
Suitable for Plastic Recycling
The Plastic Recycling Pelletizing Line efficiently processes:
l Plastic film waste
l Injection molding scrap
l Blow molding scrap
l Industrial plastic waste
l Post-consumer plastics
l Post-industrial plastics
Easy Maintenance
Quick-change die plate
Hydraulic screen changer
Wear-resistant cutting blades
Modular equipment design
These features reduce maintenance costs and downtime.
Applications of Water Ring Pelletizing Production Line
Plastic Recycling Industry
Suitable for:
l PE Recycling
l PP Recycling
l HDPE Recycling
l LDPE Recycling
Plastic Compounding Industry
Production of:
l Filled compounds
l Reinforced plastics
l Engineering compounds
Masterbatch Manufacturing
Suitable for:
l Black Masterbatch
l White Masterbatch
l Color Masterbatch
l Functional Masterbatch
Why Choose Our Water Ring Pelletizing Machine?
As a professional Plastic Extrusion Machine Manufacturer, we provide complete turnkey solutions, including:
l Customized production capacity
l High-efficiency extrusion technology
l Precision water ring pelletizing system
l Intelligent PLC control
l Energy-saving design
l CE-compliant manufacturing
l Global installation and commissioning
l Technical training
l Lifetime after-sales support
l Spare parts supply
Whether you are producing recycled plastic pellets, engineering compounds, masterbatch, or biodegradable materials, our Water Ring Pelletizing Production Line delivers reliable performance, excellent pellet quality, and maximum production efficiency.
