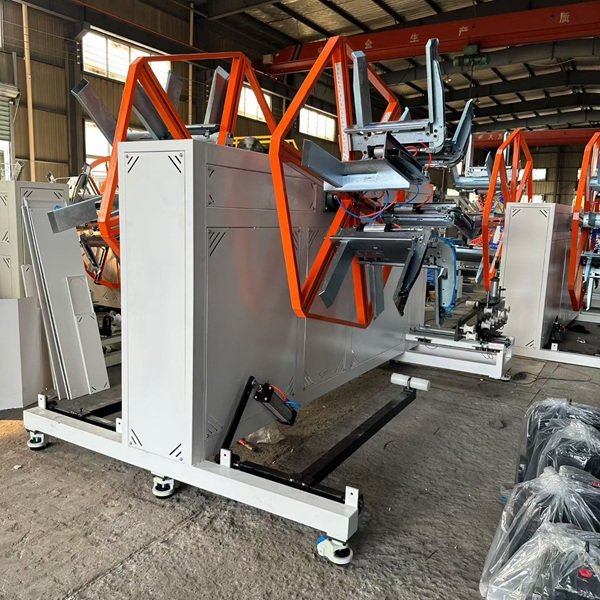

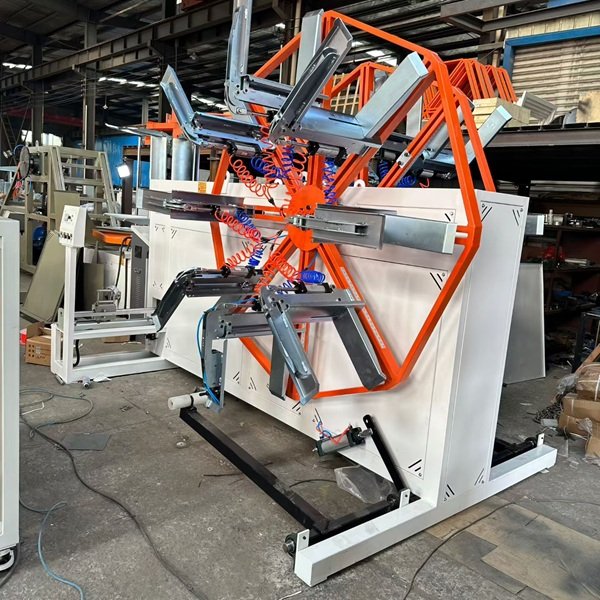

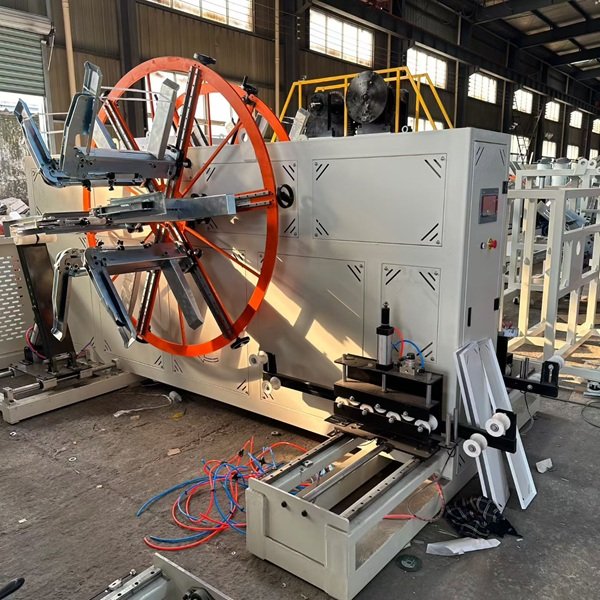

Single-Station Pipe Winding Machine for Plastic Pipe Extrusion Lines

A Single-Station Pipe Winding Machine is an important downstream unit for continuous plastic pipe production. It is mainly used to automatically wind flexible plastic pipes into neat and compact coils after the pipe has been formed, cooled, and hauled off by the Plastic Pipe Extrusion Line.

For manufacturers producing PE, PVC, PPR, and other flexible plastic pipes, a reliable Pipe Winding Machine can improve production efficiency, simplify handling, and provide consistent coil formation. Our single-station design offers a practical solution for plastic pipe manufacturers looking for stable and space-saving winding equipment.

What Is a Single-Station Pipe Winding Machine?

The Single-Station Pipe Winding Machine is designed to collect continuously extruded plastic pipe and wind it into coils automatically. It is normally installed at the end of a Plastic Extrusion Production Line, after the cooling and haul-off sections.

During production, the Extruder melts and plasticizes the raw material before the pipe passes through the extrusion die, sizing and cooling equipment, and haul-off unit. The finished pipe is then guided to the Pipe Winding Machine, where it is wound evenly onto the winding frame.

The basic production process is:

Raw Material → Extruder → Pipe Die → Vacuum Calibration/Cooling → Haul-Off → Pipe Winding Machine → Coiled Pipe

The exact equipment configuration depends on the pipe material, diameter, wall thickness, production speed, and required coil size.

Main Features of the Pipe Winding Machine

Automatic Pipe Winding

The machine continuously winds the finished pipe into a coil, reducing the need for manual collection. The winding speed can be coordinated with the upstream Extrusion Line to maintain smooth production.

Neat and Uniform Coils

A controlled winding system helps arrange the pipe evenly and reduces overlapping or loose winding. Proper coil formation makes the finished product easier to package, transport, store, and install.

Single-Station Design

Compared with multi-station winding systems, the single-station configuration has a relatively simple structure and compact layout. It is suitable for production lines where one coil is wound and removed before the next winding cycle begins.

Adjustable Winding Speed

The winding speed can be matched to the output of the Plastic Pipe Extrusion Machine. This helps reduce excessive tension and supports stable pipe collection during continuous production.

Automatic Tension Control

For flexible pipes, excessive pulling force may affect the pipe shape. A properly configured Pipe Winding Machine maintains controlled pipe tension during winding, helping protect the finished pipe.

Applications in Plastic Pipe Production

The Single-Station Pipe Winding Machine can be used with different types of flexible plastic pipe production lines. Typical applications include:

· PE flexible pipe

· PVC flexible pipe

· PPR pipe

· Irrigation pipe

· Agricultural pipe

· Water supply pipe

· Gas and utility pipe

· Small-diameter plastic tubing

For small and medium-diameter pipes, coiling is often more convenient than cutting the pipe into fixed-length sections. Coiled products require less storage space and can be transported and installed efficiently.

The final application depends on the pipe material, diameter, flexibility, and technical requirements of the production line.

How Does a Pipe Winding Machine Work?

After leaving the haul-off section, the finished pipe enters the winding unit through a guiding system. The winding mechanism rotates continuously while the pipe is arranged around the coil.

The winding speed is adjusted according to the extrusion output. When the preset coil length or coil diameter is reached, the winding cycle can be stopped for coil removal and preparation of the next production cycle.

The machine can be integrated with the control system of the Plastic Pipe Extrusion Line, allowing the winding speed and production speed to work together more effectively.

This coordination is particularly important for high-speed Plastic Extrusion Production Lines, where unstable winding can cause pipe accumulation, excessive tension, or irregular coils.

Advantages for Plastic Pipe Manufacturers

A suitable Pipe Winding Machine can provide several practical benefits.

Higher production efficiency: Automatic winding reduces manual pipe collection and supports continuous operation.

Better coil quality: Controlled winding produces more uniform coils with a cleaner appearance.

Reduced labor requirements: Operators mainly monitor the machine and handle finished coils instead of manually winding the pipe.

Compact production layout: The single-station structure is suitable for factories with limited installation space.

Easy integration: The winding unit can be connected with the haul-off and control system of the existing Plastic Extrusion Line.

Convenient packaging and transportation: Coiled pipes are easier to bundle, store, and transport than long loose pipes.

How to Choose a Single-Station Pipe Winding Machine

Choosing the right Pipe Winding Machine requires consideration of the complete production process rather than the winding unit alone.

The main factors include:

1. Pipe Diameter
The winding mechanism should match the diameter and flexibility of the pipe.

2. Pipe Material
PE, PVC, PPR, and other materials have different flexibility and winding characteristics.

3. Extrusion Output
The winding speed should be compatible with the output of the Extruder and haul-off machine.

4. Coil Diameter
The required inner and outer coil dimensions should be determined according to packaging and application requirements.

5. Pipe Length per Coil
Different customers may require different coil lengths, so the control system should support the required production cycle.

6. Factory Layout
The machine size, pipe direction, and connection position should be considered before installation.

A professional Plastic Machinery Manufacturer can configure the winding system according to the pipe specifications and the complete extrusion process.

Complete Plastic Pipe Extrusion Solutions

As a professional plastic machinery manufacturer, we provide equipment for complete Plastic Pipe Extrusion Lines, from extrusion and forming to cooling, hauling, winding, and cutting.

A typical line can include a material feeding system, Plastic Extruder, extrusion die, vacuum calibration tank, cooling tank, haul-off machine, Pipe Winding Machine, cutting machine, and related auxiliary equipment.

We can customize the production line according to pipe material, diameter range, production capacity, coil specifications, factory layout, and automation requirements.

Conclusion

The Single-Station Pipe Winding Machine is a practical downstream solution for flexible plastic pipe manufacturing. By automatically collecting and winding continuously extruded pipe, it helps improve production efficiency, coil consistency, and overall line automation.

When correctly matched with the Extruder, haul-off machine, and other equipment, the Pipe Winding Machine can become an efficient part of a complete Plastic Pipe Extrusion Line.

For manufacturers producing PE, PVC, PPR, irrigation, agricultural, and other flexible plastic pipes, selecting a winding system based on actual pipe specifications and production requirements is essential for achieving stable and reliable operation.
