Strand Pelletizing Production Line: Complete Guide to Equipment Components, Advantages, Applications, and Plastic Extrusion Technology

Introduction

With the continuous development of the global plastics industry, the demand for high-quality plastic pellets has increased significantly across plastic recycling, compounding, masterbatch production, engineering plastics, and biodegradable materials. As one of the most mature and reliable pelletizing technologies, the Strand Pelletizing Production Line has become the preferred solution for manufacturers requiring stable operation, excellent pellet quality, and flexible material processing.

As a professional Plastic Extrusion Production Line Manufacturer, we specialize in designing and manufacturing complete Strand Pelletizing Production Lines for various thermoplastic materials, including PP, PE, ABS, PS, PA, PC, PET, EVA, TPE, TPU, PVC, engineering plastics, recycled plastics, color masterbatch, filler masterbatch, and biodegradable compounds.

Our Strand Pelletizing Machine integrates advanced extrusion technology, precise temperature control, efficient cooling, and automatic pellet cutting to deliver high-quality plastic granules while reducing production costs and improving manufacturing efficiency.

Whether you are producing virgin plastic pellets, recycled plastic granules, engineering compounds, or customized polymer formulations, our Plastic Pelletizing Production Line provides reliable performance and long-term production stability.

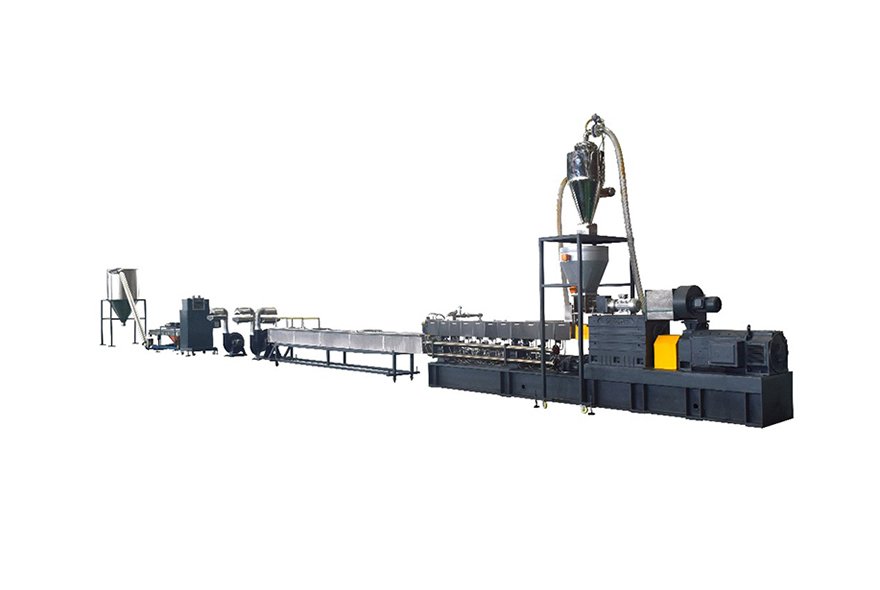

What Is a Strand Pelletizing Production Line?

A Strand Pelletizing Production Line is an extrusion-based plastic granulation system that converts molten polymer into continuous plastic strands. These strands are cooled in a water tank, dried, and then cut into uniform plastic pellets using a strand pelletizer.

Compared with water ring pelletizing systems, strand pelletizing provides better flexibility for processing engineering plastics, reinforced materials, high-viscosity polymers, and temperature-sensitive compounds.

The complete production process includes:

Raw Material Feeding → Plastic Extrusion → Plasticizing → Melt Filtration → Strand Extrusion → Water Cooling → Air Drying → Strand Pellet Cutting → Vibrating Screening → Automatic Conveying → Storage → Packaging

The finished pellets are widely used in injection molding, blow molding, extrusion, film production, pipe manufacturing, sheet extrusion, profile extrusion, cable production, and automotive applications.

Main Components of a Strand Pelletizing Production Line

A complete Plastic Strand Pelletizing Line consists of multiple integrated systems designed to ensure continuous, stable, and efficient production.

1. Automatic Feeding System

The automatic feeding system delivers raw materials continuously into the extruder.

Main Equipment

l Vacuum Loader

l Screw Conveyor

l Hopper Dryer

l Automatic Dosing System

l Loss-in-Weight Feeder (Optional)

Functions

l Continuous material supply

l Precise dosing

l Reduced labor costs

l Improved production efficiency

l Stable extrusion performance

Suitable materials include:

l Virgin plastic resin

l Recycled plastic flakes

l Plastic regrind

l Powder materials

l Calcium carbonate

l Talc

l Color masterbatch

l Additives

2. High-Performance Plastic Extruder

The extruder is the core equipment of the Plastic Pelletizing Machine.

Different materials require different extrusion solutions.

Single Screw Extruder

Suitable for:

l PE

l PP

l HDPE

l LDPE

l LLDPE

l EVA

Advantages:

l Stable extrusion

l Low energy consumption

l Easy maintenance

l High production capacity

Twin Screw Extruder

Suitable for:

l Engineering plastics

l Color masterbatch

l Filler masterbatch

l Plastic compounds

l Biodegradable materials

Advantages:

l Excellent mixing

l Superior dispersion

l Uniform plasticizing

l High output

l Flexible screw configuration

The screw and barrel are manufactured from wear-resistant alloy steel to ensure long service life.

3. Hydraulic Screen Changer

The Hydraulic Screen Changer removes contaminants from the molten polymer before extrusion.

Main Functions

l Continuous filtration

l Stable melt pressure

l Improved pellet quality

l Protection of die head

l Reduced machine downtime

For recycled plastic applications, automatic hydraulic screen changers greatly improve production efficiency.

4. Melt Pump (Optional)

A melt pump is installed between the screen changer and die head for high-output production.

Advantages include:

l Stable melt pressure

l Uniform extrusion

l Better pellet consistency

l Higher production efficiency

5. Strand Die Head

The strand die head forms the molten plastic into multiple continuous strands.

The die head determines:

l Number of strands

l Strand diameter

l Material distribution

l Extrusion stability

Precision-machined die heads ensure smooth strand surfaces and consistent pellet quality.

6. Stainless Steel Cooling Water Tank

After leaving the die head, the plastic strands enter the cooling tank.

Functions

l Rapid cooling

l Shape stabilization

l Continuous strand transport

l Surface protection

The cooling tank is equipped with:

l Stainless steel body

l Water circulation system

l Adjustable guide rollers

l Water level control

Proper cooling prevents strand deformation and ensures uniform pellet dimensions.

7. Air Knife or Air Dryer

Before pellet cutting, the strands pass through an air drying system.

Functions include:

l Removing surface moisture

l Preventing pellet adhesion

l Improving cutting quality

l Increasing production stability

8. Strand Pelletizer

The Strand Pelletizer is the key machine in the pelletizing line.

Working Principle:

The cooled plastic strands are fed into rotating cutting blades, producing uniform cylindrical plastic pellets.

Main Components:

l Feed rollers

l Rotary cutter

l Fixed knife

l Adjustable cutting system

l Variable frequency motor

Advantages:

l Uniform pellet size

l Smooth cutting surface

l Stable operation

l Low noise

l Long blade life

Blade speed can be adjusted according to pellet length requirements.

9. Vibrating Screen

After pelletizing, the pellets pass through a vibrating screen.

Functions:

l Remove fines

l Separate oversized pellets

l Improve pellet consistency

l Enhance product appearance

10. Pneumatic Conveying System

Qualified pellets are transported automatically into storage silos.

Advantages:

l Dust-free conveying

l Continuous transportation

l Reduced labor

l Automatic production

11. Storage Silo and Packaging System

The finished pellets are stored before packaging.

Optional equipment includes:

l Stainless Steel Storage Silo

l Automatic Weighing Machine

l Bag Filling Machine

l Sewing Machine

l Robot Palletizer

This system significantly improves production efficiency while reducing manual handling.

Advantages of Strand Pelletizing Production Line

Excellent Pellet Quality

The Strand Pelletizing Machine produces pellets with:

l Uniform length

l Smooth surface

l High density

l Consistent appearance

l Low dust content

These pellets are ideal for high-quality injection molding and extrusion applications.

Wide Material Compatibility

One of the biggest advantages of strand pelletizing is its ability to process a broad range of materials, including:

l Polypropylene (PP)

l Polyethylene (PE)

l ABS

l Polystyrene (PS)

l Polyamide (PA)

l Polycarbonate (PC)

l PET

l PVC (with suitable configuration)

l EVA

l TPU

l TPE

l Engineering plastics

l Glass fiber reinforced plastics

l Mineral-filled compounds

l Color masterbatch

l Black masterbatch

l White masterbatch

l Biodegradable plastics

High Production Efficiency

Production capacities are available from:

l 100 kg/h

l 200 kg/h

l 300 kg/h

l 500 kg/h

l 800 kg/h

l 1000 kg/h

l 1500 kg/h

l 2000 kg/h

Customized production capacities are also available.

High Degree of Automation

The complete production line can be equipped with:

l Siemens PLC

l Siemens Touch Screen

l ABB Frequency Inverter

l Schneider Electrical Components

Automatic functions include:

l Temperature control

l Pressure monitoring

l Motor protection

l Alarm system

l Production data recording

l Remote diagnosis (Optional)

Stable Continuous Production

Advanced extrusion technology ensures:

l Stable melt pressure

l Continuous extrusion

l Consistent pellet dimensions

l Reliable long-term operation

Energy Saving

Optimized screw design and efficient heating systems reduce electricity consumption while maintaining high productivity.

Easy Maintenance

The modular equipment design allows:

l Quick blade replacement

l Easy cleaning

l Fast maintenance

l Reduced downtime

Long Equipment Service Life

Main mechanical parts use:

l Nitrided alloy steel

l Wear-resistant barrel

l High-quality gearbox

l Precision bearings

This ensures excellent durability even under continuous industrial production.

Applications of Strand Pelletizing Production Line

The Plastic Pelletizing Production Line is widely used in many industries.

Plastic Recycling

Suitable for:

l PE Recycling

l PP Recycling

l ABS Recycling

l Engineering Plastic Recycling

Plastic Compounding

Production of:

l Filled compounds

l Reinforced plastics

l Functional compounds

Masterbatch Manufacturing

Production of:

l Color Masterbatch

l Black Masterbatch

l White Masterbatch

l Functional Masterbatch

Engineering Plastics

Processing:

l PA

l PC

l PET

l PBT

l PPO

l ABS

Cable Compounds

Manufacturing:

l Cable insulation

l Cable sheathing

l Flame-retardant compounds

Biodegradable Plastics

Suitable for:

l PLA

l PBAT

l PBS

l Starch-based compounds

Why Choose Our Strand Pelletizing Production Line?

As a leading Plastic Extrusion Machine Manufacturer, we provide complete turnkey solutions tailored to customer requirements.

Our services include:

l Customized machine design

l High-efficiency extrusion systems

l Precision strand pelletizing technology

l CE-certified manufacturing

l PLC intelligent control

l Global installation and commissioning

l Technical training

l Lifetime technical support

l Spare parts supply

l Professional after-sales service

Our equipment has been exported to Europe, Central Asian countries, Russia, Belarus, Georgia, Armenia, and many other countries and regions, where it has earned the trust of customers worldwide thanks to its reliable performance and excellent product quality.

Conclusion

A Strand Pelletizing Production Line is an efficient, reliable, and versatile solution for manufacturing high-quality plastic pellets. With its stable extrusion process, excellent pellet quality, wide material compatibility, and high level of automation, it is widely used in plastic recycling, compounding, masterbatch production, and engineering plastics manufacturing.

Choosing a professional Plastic Pelletizing Machine Manufacturer ensures optimized production efficiency, reduced operating costs, and consistent product quality. Our advanced Strand Pelletizing Systems are designed to help customers achieve sustainable growth, improve productivity, and remain competitive in the global plastics industry.
