Meter Weight Control System for Plastic Extrusion Lines: Precision Gravimetric Measurement and Automatic Output Control

Introduction to the Meter Weight Control System

In modern plastic processing, stable product quality depends not only on the performance of the Plastic Extruder, but also on accurate control of material output and product weight. For pipes, profiles, cables, sheets, films, and other continuously extruded products, even small fluctuations in extrusion output can result in inconsistent dimensions, unstable meter weight, excessive material consumption, and higher production costs.

A Meter Weight Control System is designed to monitor and automatically regulate the amount of plastic material used per unit length of an extruded product. By combining a precision Meter Weight Measuring Instrument, production speed measurement, material feeding or Extruder speed control, and intelligent PLC software, the system helps manufacturers maintain a stable target meter weight throughout continuous production.

As a professional plastic machinery manufacturer, we provide customized Meter Weight Control Systems for different types of Plastic Extrusion Lines, including PE Pipe Production Lines, PVC Pipe Production Lines, PP Pipe Production Lines, profile extrusion lines, cable extrusion lines, and other continuous extrusion applications.

The system can help manufacturers improve product consistency, reduce material waste, optimize production efficiency, and achieve more intelligent extrusion process control.

What Is a Meter Weight Control System?

A Meter Weight Control System is an automatic measurement and feedback system used on a Plastic Extrusion Production Line to control the weight of extruded material per meter.

In simple terms, the system answers an important production question:

How much plastic material is being used to produce one meter of finished product?

For example, if a pipe is designed to have a target meter weight of 500 g/m, the system continuously monitors the actual production conditions and compares the measured value with the preset target.

When the actual meter weight becomes higher than the target, the control system can adjust the material output. When the meter weight becomes lower than the target, the system can increase the corresponding output.

The control process can involve:

· Extruder screw speed

· Gravimetric or volumetric feeding

· Production line speed

· Haul-off speed

· Material throughput

· Online product measurement

This closed-loop control approach allows the Plastic Extrusion Machine to operate more consistently and efficiently.

How Does the Meter Weight Control System Work?

The working principle is based on continuous measurement, calculation, comparison, and automatic adjustment.

First, the Meter Weight Measuring Instrument collects production data. Depending on the application, the system can obtain information such as product length, line speed, material output, and actual product weight.

The control software then calculates the actual meter weight according to the measured production parameters.

The measured value is compared with the preset target value.

If a deviation is detected, the controller sends a correction signal to the relevant equipment, such as the Plastic Extruder, feeder, or haul-off system.

The basic control process can be summarized as:

Material Feeding → Extrusion → Product Formation → Length/Speed Measurement → Meter Weight Calculation → Target Comparison → Automatic Adjustment

This process is continuously repeated during production.

The result is more stable extrusion output and improved consistency of the finished product.

Main Components of a Meter Weight Control System

A complete Meter Weight Control System can be configured according to the requirements of different extrusion applications.

Meter Weight Measuring Instrument

The Meter Weight Measuring Instrument is one of the key components of the system.

It collects production data and provides the control system with real-time information about the relationship between product length and material consumption.

Depending on the application, the measurement system can be combined with:

· Precision weighing equipment

· Length measurement devices

· Encoder systems

· Speed sensors

· Digital counters

· Production data acquisition modules

High-quality measurement equipment helps improve the accuracy and stability of the entire control process.

PLC Control System

The PLC acts as the control center of the Meter Weight Control System.

It receives signals from sensors and measurement devices, processes production data, calculates deviations, and sends adjustment commands to the Extruder or other equipment.

A touchscreen HMI can display:

· Target meter weight

· Actual meter weight

· Extruder speed

· Production speed

· Material output

· Production length

· Operating status

· Alarm information

· Historical production data

Operators can adjust production parameters directly through the user-friendly interface.

Extruder Speed Control

The Extruder is the core processing machine in most plastic extrusion lines.

By controlling screw speed, the system can influence the amount of molten plastic delivered to the extrusion die.

Variable-frequency drives or servo systems can be used to provide accurate speed adjustment.

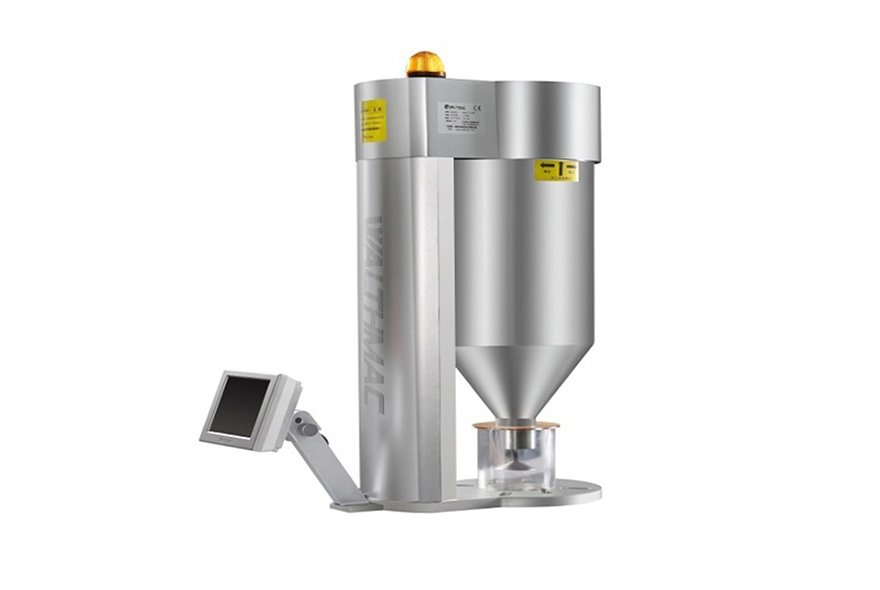

For applications requiring higher control accuracy, the system can be integrated with a gravimetric feeding system or other precision dosing equipment.

Haul-Off Speed Control

For pipe and profile extrusion, the relationship between extrusion output and haul-off speed is extremely important.

If the Pipe Haul-Off Machine moves too slowly while extrusion output remains high, the product may become heavier per meter.

If the haul-off speed becomes too high, the product may become lighter.

The Meter Weight Control System can therefore coordinate extrusion output and line speed to maintain the desired product weight.

Why Is Meter Weight Control Important in Plastic Extrusion?

Traditional extrusion production often relies on manual adjustment and periodic sampling.

Although this method can produce acceptable results, it may not respond quickly enough to production fluctuations.

Material characteristics, temperature changes, screw speed, melt pressure, cooling conditions, and line speed can all affect extrusion output.

An automatic Meter Weight Control System provides continuous monitoring and faster response.

Improved Product Consistency

Stable meter weight helps manufacturers maintain more consistent product specifications.

For plastic pipes, this can contribute to more stable wall thickness and overall product quality when integrated with appropriate dimensional control systems.

Reduced Material Waste

Over-extrusion means that more material is used than necessary.

For high-volume production, even a small reduction in excess material can create significant annual savings.

Automatic meter weight control helps manufacturers move closer to the target production weight.

Higher Production Efficiency

Automatic adjustment reduces the need for frequent manual intervention.

Operators can monitor production conditions through the HMI while the control system continuously performs measurement and correction.

Better Production Management

Modern systems can record production data, making it easier to analyze:

· Material consumption

· Production output

· Meter weight

· Production speed

· Extruder performance

· Production deviations

This information can support process optimization and factory management.

Applications in Plastic Extrusion Production Lines

The Meter Weight Control System can be integrated into many types of continuous extrusion equipment.

PE Pipe Production Line

For PE Pipe Production Lines, meter weight control can help stabilize material consumption and production output.

It is suitable for applications involving HDPE, LDPE, MDPE, and other polyethylene materials.

PVC Pipe Production Line

A PVC Pipe Production Line can use meter weight monitoring to improve consistency during continuous extrusion.

The system can be configured according to pipe diameter, wall thickness, production speed, and material formulation.

PP Pipe Production Line

For PP Pipe Extrusion Lines, automatic output monitoring helps maintain stable production conditions during long production runs.

Plastic Profile Extrusion Line

The system can also be used for PVC, PE, PP, WPC, and other plastic profile extrusion applications.

Cable and Wire Extrusion Line

For cable production, precise material consumption is particularly important because insulation and sheathing materials must be applied consistently.

Sheet and Film Extrusion Line

The technology can also be adapted to selected sheet and film extrusion applications where material consumption per unit length is an important production parameter.

Integration with Modern Plastic Extrusion Machines

A major advantage of a modern Meter Weight Control System is its ability to communicate with other equipment.

The system can be integrated with:

· Plastic Extruder

· Gravimetric Feeder

· Pipe Haul-Off Machine

· Pipe Cutting Machine

· Online diameter measurement systems

· Laser measurement systems

· PLC control systems

· Industrial computers

· Factory production management systems

For example, on a complete PE Pipe Production Line, the system can collect information from the Extruder, haul-off unit, encoder, and measurement devices.

The PLC then calculates the actual production condition and adjusts the appropriate parameters.

This creates a more intelligent and coordinated extrusion process.

Meter Weight Control vs. Manual Production Adjustment

Manual adjustment requires operators to periodically check product weight and make corrections.

This approach has several limitations:

· Delayed feedback

· Greater dependence on operator experience

· Increased risk of over-extrusion

· More material waste

· Difficulty maintaining stable production during long runs

By contrast, an automatic Meter Weight Control System continuously collects production information and provides real-time feedback.

The operator can set the target value, while the system performs automatic adjustments within the configured control range.

However, meter weight control should not be regarded as a replacement for all quality-control equipment. For applications such as pipe manufacturing, it is often best used together with online diameter, wall-thickness, temperature, and pressure monitoring systems.

Intelligent Control and Data Management

Modern Plastic Extrusion Production Lines are increasingly moving toward digital and automated manufacturing.

A new-generation Meter Weight Control System can provide more than basic feedback control.

Optional functions include:

· Production data recording

· Historical trend monitoring

· Automatic alarm notifications

· Recipe management

· Parameter storage

· Production report generation

· Remote monitoring

· Communication with factory management systems

These functions help manufacturers better understand their extrusion processes and identify production abnormalities at an early stage.

How to Choose the Right Meter Weight Control System

Different extrusion applications require different control configurations.

When selecting a Meter Weight Measuring Instrument or Meter Weight Control System, manufacturers should consider:

Product Type

Pipe, profile, cable, sheet, film, or other products may require different measurement methods.

Production Capacity

The measurement and control system should match the output range of the Plastic Extruder.

Required Accuracy

Higher-value products or applications with strict material-consumption requirements may require more precise measurement and feedback control.

Material Characteristics

PE, PP, PVC, WPC, engineering plastics, and recycled materials can have different processing characteristics.

Automation Level

The system can range from basic measurement and display to a fully automatic closed-loop control system.

Existing Equipment

For existing extrusion lines, communication with the current PLC, inverter, Extruder, feeder, and haul-off equipment should be considered.

As an experienced plastic machinery manufacturer, we can customize the control configuration according to the customer's extrusion process, product specifications, production capacity, and automation requirements.

Advantages of Our Meter Weight Control System

Our Meter Weight Control System is designed for reliable operation in demanding industrial extrusion environments.

Key advantages include:

· Real-time meter weight monitoring

· Automatic production adjustment

· High measurement stability

· PLC-based intelligent control

· User-friendly touchscreen operation

· Reduced material consumption

· Improved production consistency

· Lower dependence on manual adjustment

· Production data recording

· Flexible integration with Plastic Extrusion Lines

· Customized control solutions

· Professional technical support

The system can be supplied as an independent control unit or integrated into a complete extrusion line.

Conclusion

A Meter Weight Control System is an important technology for manufacturers seeking greater precision, efficiency, and material utilization in modern plastic extrusion.

By continuously monitoring meter weight and coordinating the Plastic Extruder, feeding system, haul-off equipment, and production speed, the system helps manufacturers maintain more stable production conditions and reduce unnecessary material consumption.

For PE Pipe Production Lines, PVC Pipe Production Lines, PP Pipe Extrusion Lines, profile extrusion, cable extrusion, and other continuous manufacturing applications, a properly configured Meter Weight Measuring Instrument and automatic control system can become an important part of intelligent extrusion production.

As a professional plastic machinery manufacturer, we provide customized Meter Weight Control Systems and complete Plastic Extrusion Production Lines according to different materials, products, output requirements, and factory automation levels. Our engineering team can design the appropriate measurement, control, and communication configuration to help customers achieve reliable production and long-term operating efficiency.
