PVC Pelletizing Production Line: Complete Guide to Equipment, Production Process, Advantages, and Applications

Introduction

As the demand for high-quality PVC compounds continues to grow in the construction, electrical, automotive, medical, and consumer goods industries, efficient and reliable PVC Pelletizing Production Lines have become essential for plastic manufacturers worldwide. PVC pellets offer superior processing consistency, easier storage and transportation, and improved production efficiency compared with PVC powder.

As a professional Plastic Extrusion Machine Manufacturer, we specialize in designing and manufacturing complete PVC Pelletizing Production Lines for rigid PVC (UPVC), soft PVC, cable compounds, medical-grade PVC, shoe sole compounds, recycled PVC, and customized PVC formulations.

Our PVC Pelletizing Machine combines advanced extrusion technology, precision temperature control, efficient cooling systems, and automatic pelletizing equipment to produce high-quality PVC granules with stable performance, excellent plasticizing quality, and high production efficiency.

Whether you are manufacturing virgin PVC compounds, recycled PVC pellets, cable compounds, or specialty PVC materials, our PVC Pelletizing Production Line provides a reliable turnkey solution tailored to your production requirements.

What Is a PVC Pelletizing Production Line?

A PVC Pelletizing Production Line is a complete extrusion system designed to convert PVC powder and additives into uniform plastic pellets through mixing, plasticizing, extrusion, cooling, pelletizing, and packaging.

Compared with processing PVC powder directly, PVC granules provide numerous advantages:

· Stable product quality

· Better feeding performance

· Reduced dust pollution

· Easier storage and transportation

· Improved processing efficiency

· Consistent material formulation

PVC pelletizing technology is widely used in the production of:

· PVC Pipes

· PVC Profiles

· PVC Sheets

· PVC Flooring

· PVC Cable Compounds

· Medical PVC Products

· PVC Shoes

· Injection Molded Products

· Automotive Components

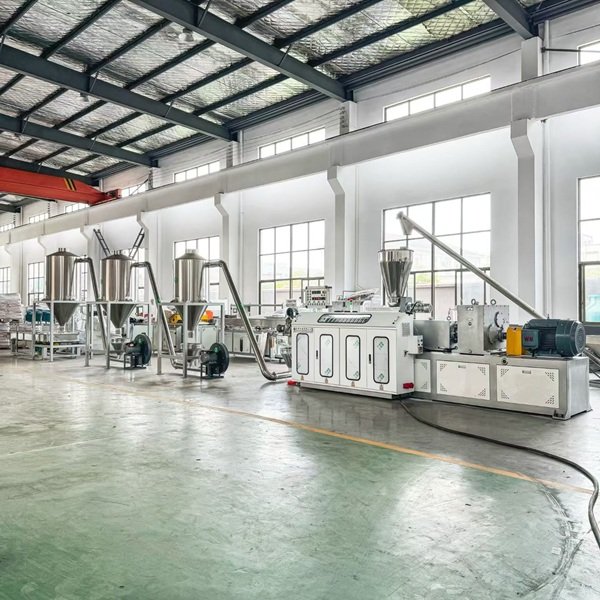

Main Components of a PVC Pelletizing Production Line

A complete PVC Granule Making Machine consists of several integrated systems designed for continuous and efficient production.

1. High-Speed Mixer Unit

The production process begins with a PVC High-Speed Mixer, where PVC resin, stabilizers, lubricants, plasticizers, fillers, pigments, and additives are uniformly blended.

Main Equipment

· High-Speed Hot Mixer

· Cooling Mixer

· Automatic Material Conveying System

Functions

· Uniform mixing

· Heating and cooling

· Improved material dispersion

· Stable formulation

Advantages

· Short mixing time

· Excellent homogeneity

· Consistent batch quality

· Reduced manual operation

2. Automatic Feeding System

The mixed PVC material is automatically transported into the extruder through a vacuum feeding system.

Main Equipment

· Vacuum Loader

· Screw Conveyor

· Storage Hopper

Advantages

· Continuous feeding

· Stable production

· Reduced labor cost

· Improved automation

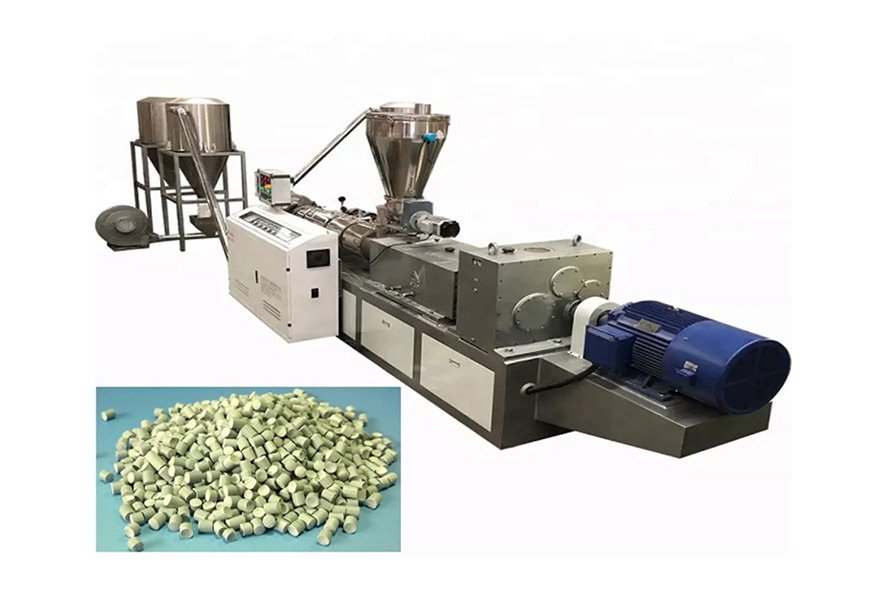

3. PVC Twin Screw Extruder

The Counter-Rotating Twin Screw Extruder is the core machine of the PVC Pelletizing Production Line.

Compared with a single screw extruder, the twin screw extruder provides better mixing and lower shear, making it ideal for PVC processing.

Main Features

· Uniform plasticizing

· Stable extrusion pressure

· Excellent mixing

· Low material degradation

· High production efficiency

Typical Models

· SJSZ51/105

· SJSZ65/132

· SJSZ80/156

· SJSZ92/188

Production Capacity

· 150 kg/h

· 250 kg/h

· 400 kg/h

· 600 kg/h

· 800 kg/h

4. Hydraulic Screen Changer

The hydraulic screen changer removes impurities from molten PVC.

Functions

· Continuous filtration

· Stable pressure

· Improved pellet quality

· Protection of die head

Especially recommended when processing recycled PVC materials.

5. Pelletizing Die Head

The die head distributes molten PVC evenly before pelletizing.

High-quality die heads provide:

· Stable melt flow

· Uniform strand formation

· Consistent pellet dimensions

· Smooth pellet surface

6. Strand Cooling Water Tank

Molten PVC strands enter a stainless-steel cooling tank for rapid cooling.

Equipment Includes

· Stainless steel water tank

· Guide rollers

· Water circulation system

· Temperature control

Functions

· Rapid cooling

· Shape stabilization

· Continuous conveying

7. Air Drying System

After cooling, PVC strands pass through an air knife or air dryer.

Functions

· Remove moisture

· Prevent pellet sticking

· Improve cutting accuracy

8. PVC Strand Pelletizer

The cooled PVC strands are cut into uniform pellets by the PVC Pelletizing Machine.

Main Components

· Feed Rollers

· Rotary Cutting Knife

· Fixed Knife

· Variable Frequency Motor

Advantages

· Uniform pellet size

· Adjustable pellet length

· Low noise

· High cutting precision

· Long blade life

9. Vibrating Screen

The vibrating screen removes fines and oversized pellets.

Benefits

· Better appearance

· Uniform pellet size

· Reduced dust

· Improved product quality

10. Automatic Conveying and Packaging System

Finished PVC pellets are transported into storage silos before packaging.

Optional Equipment

· Storage Silo

· Automatic Weighing Machine

· Bagging Machine

· Sewing Machine

· Robot Palletizer

PVC Pelletizing Production Process

The complete manufacturing process follows these steps:

Step 1 – Raw Material Preparation

PVC resin is mixed with:

· Stabilizers

· Plasticizers

· Lubricants

· Calcium Carbonate

· Processing Aids

· Pigments

Step 2 – High-Speed Mixing

Materials are heated and mixed uniformly in the hot mixer before entering the cooling mixer.

Step 3 – Automatic Feeding

The mixed material is automatically transferred into the twin screw extruder.

Step 4 – Plasticizing and Extrusion

Inside the extruder:

· Heating

· Mixing

· Plasticizing

· Compression

· Homogenization

The PVC compound becomes a uniform molten material.

Step 5 – Melt Filtration

The hydraulic screen changer removes contaminants to ensure smooth extrusion.

Step 6 – Strand Extrusion

Molten PVC exits the die head as multiple strands.

Step 7 – Cooling

The strands are cooled in a stainless-steel water tank.

Step 8 – Air Drying

Surface moisture is removed before pellet cutting.

Step 9 – Pellet Cutting

The strand pelletizer cuts the cooled strands into cylindrical PVC pellets.

Step 10 – Screening

Qualified pellets are separated from dust and oversized particles.

Step 11 – Packaging

Finished pellets are weighed, bagged, and prepared for transportation.

Advantages of PVC Pelletizing Production Line

Excellent Plasticizing Performance

The twin screw extruder provides:

· Uniform melting

· Excellent dispersion

· Stable extrusion

· High pellet quality

High Automation

The production line can be equipped with:

· Siemens PLC

· Siemens Touch Screen

· ABB Inverter

· Schneider Electrical Components

Automatic Functions

· Temperature control

· Pressure monitoring

· Alarm system

· Production recording

· Remote diagnosis

Energy Saving

Optimized screw geometry and efficient heating systems reduce power consumption while maintaining high productivity.

Stable Production

The production line offers:

· Continuous operation

· Stable pressure

· Uniform pellet quality

· High production efficiency

Wide Material Compatibility

Suitable for producing:

· Rigid PVC

· Soft PVC

· Transparent PVC

· Cable PVC Compound

· Medical PVC Compound

· Recycled PVC Compound

· Shoe Sole PVC Compound

· Injection Grade PVC

· Extrusion Grade PVC

Easy Maintenance

Modular machine design allows:

· Quick cleaning

· Easy maintenance

· Fast blade replacement

· Reduced downtime

Long Service Life

Main mechanical components adopt:

· Alloy Steel Screw

· Nitrided Barrel

· High-Quality Gearbox

· Imported Bearings

This ensures reliable operation over many years.

Applications of PVC Pellets

PVC pellets produced by this line are widely used in:

· PVC Pipe Manufacturing

· PVC Profile Extrusion

· PVC Sheet Production

· PVC Ceiling Panels

· PVC Wall Panels

· PVC Cable Insulation

· Medical Tubing

· Garden Hoses

· Automotive Parts

· Injection Molding Products

· Shoe Soles

· Flexible PVC Products

Why Choose Our PVC Pelletizing Production Line?

As an experienced Plastic Extrusion Production Line Manufacturer, we provide complete turnkey solutions including:

· Customized production capacity

· European-standard manufacturing

· Energy-efficient design

· CE-certified machinery

· Intelligent PLC control

· Installation and commissioning

· Operator training

· Global after-sales service

· Spare parts support

· Lifetime technical assistance

Our PVC Pelletizing Machines have been successfully exported to Europe, Central Asia, Russia, Belarus, Georgia, Armenia, and many other countries and regions. Thanks to reliable performance, advanced engineering, durable components, and consistent product quality, our equipment has earned the trust of customers in the global plastics industry.

Conclusion

A PVC Pelletizing Production Line is an ideal solution for manufacturers seeking high-quality PVC compounds with stable performance and efficient production. Featuring advanced twin screw extrusion technology, precision pelletizing, intelligent control systems, and flexible configurations, it is widely used in the production of rigid and flexible PVC materials for various industrial applications.

Investing in a reliable PVC Pelletizing Machine not only improves production efficiency and pellet quality but also reduces operating costs and enhances long-term competitiveness. With customized designs, comprehensive technical support, and proven global performance, our PVC Pelletizing Production Line is the perfect choice for modern PVC processing facilities.
