PVC Pipe Extrusion Line PVC Pipe Production Line

Welcome to our advanced PVC Pipe Production Line, a complete and intelligent manufacturing solution designed to produce high-quality PVC pipes with outstanding efficiency, precision, and reliability. Combining advanced extrusion technology, intelligent automation, and energy-saving design, our production line delivers consistent performance while meeting the demands of modern plastic pipe manufacturing.

The production process begins with raw material preparation. High-quality PVC resin is accurately blended with stabilizers, lubricants, processing aids, fillers, pigments, and other additives according to the required product formulation. A high-speed mixer ensures that all materials are evenly dispersed, providing excellent processing performance and consistent product quality. After mixing, the material is cooled and automatically conveyed to the storage hopper, ready for extrusion.

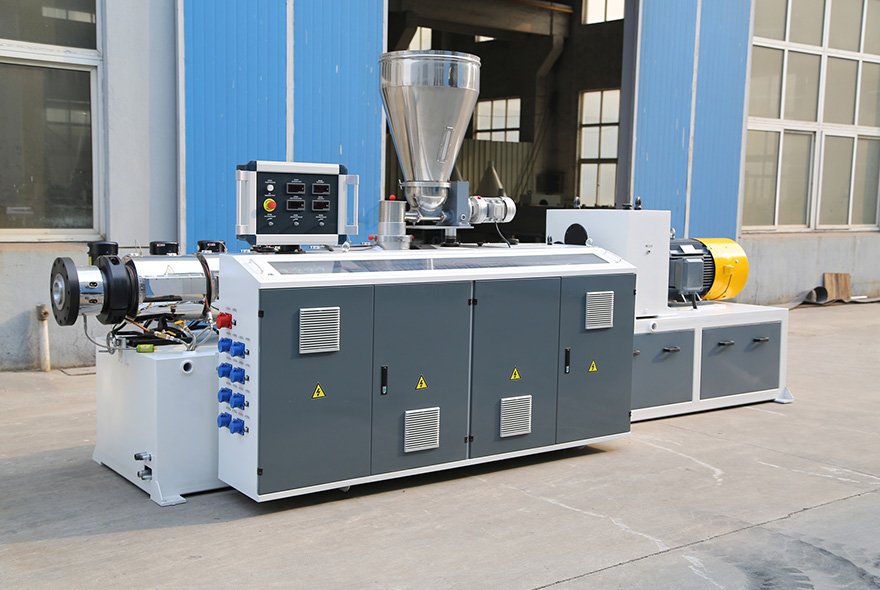

At the heart of the production line is the conical twin-screw extruder. Specially designed for PVC processing, it offers excellent plasticizing performance, stable output, and low energy consumption. The optimized screw structure ensures uniform melting and efficient material conveying while maintaining stable pressure throughout the extrusion process.

The extruder barrel features multiple independent heating zones with precise temperature control. Combined with an efficient cooling system, it maintains ideal processing conditions throughout continuous production. The intelligent control system allows operators to monitor key parameters such as screw speed, barrel temperature, motor load, and production output in real time through an easy-to-use touchscreen interface.

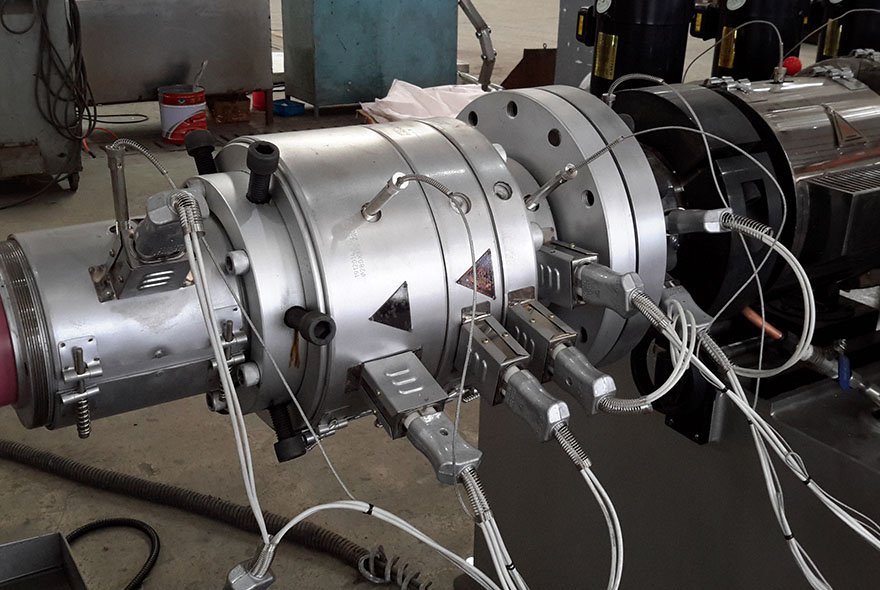

The molten PVC then enters the precision extrusion die. Manufactured from high-quality alloy steel using advanced CNC machining technology, the die ensures balanced material flow and produces pipes with uniform wall thickness and excellent dimensional accuracy. Different die sets can be installed quickly to accommodate various pipe sizes and production requirements.

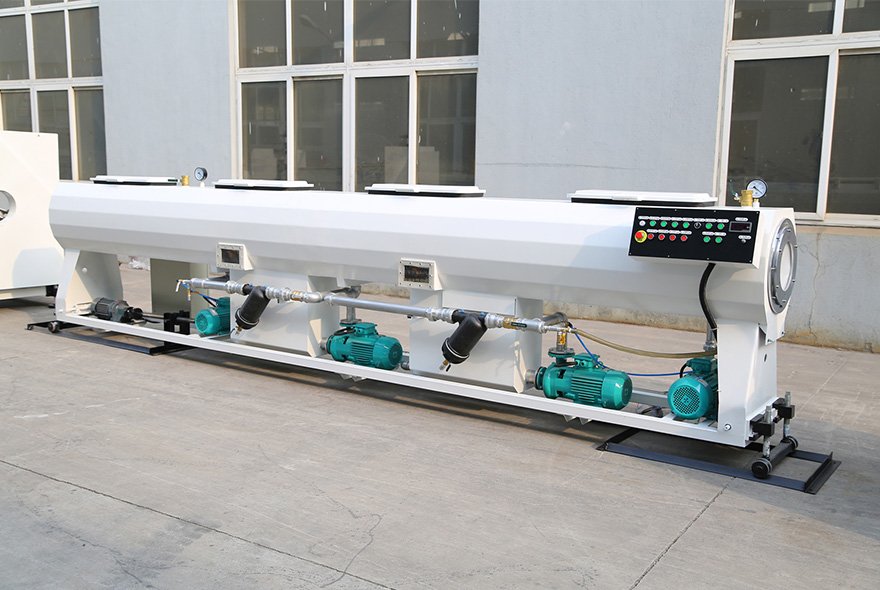

After leaving the die, the hot pipe enters the vacuum calibration tank. Here, precision calibration sleeves and a stable vacuum system accurately shape the pipe while maintaining its roundness and dimensional consistency. At the same time, circulating cooling water rapidly removes heat from the pipe surface, ensuring excellent surface finish and preventing deformation.

The pipe then passes through several spray cooling tanks, where high-efficiency water nozzles cool the pipe evenly from all directions. This gradual cooling process minimizes internal stress and guarantees long-term dimensional stability. A closed-loop water circulation system reduces water consumption while maintaining consistent cooling performance.

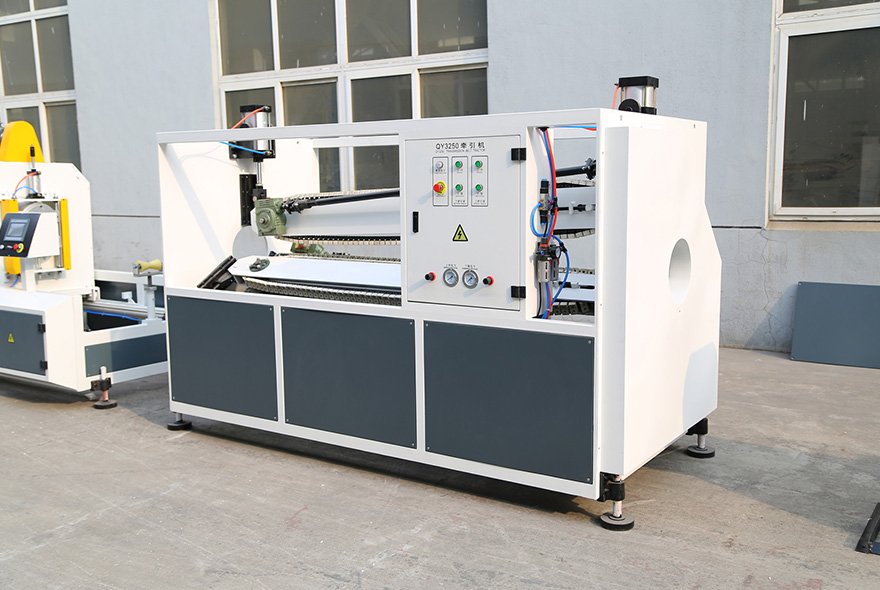

Next, the pipe reaches the haul-off machine. Equipped with synchronized rubber belts and frequency-controlled motors, the haul-off unit pulls the pipe smoothly and steadily without damaging its surface. Adjustable clamping pressure allows the machine to handle pipes of different diameters and wall thicknesses while maintaining precise synchronization with the extrusion speed.

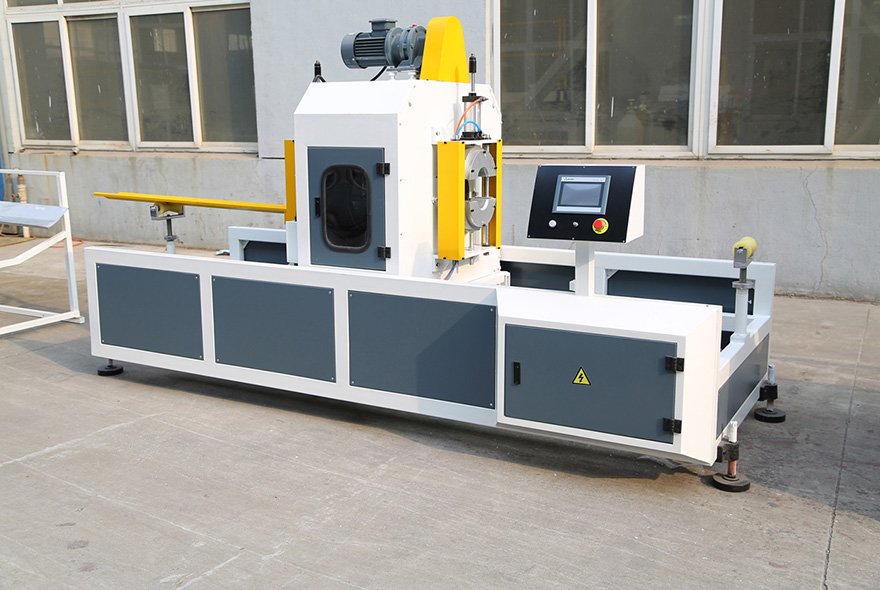

Once the required pipe length is reached, the automatic cutting machine performs accurate and clean cutting without interrupting production. The flying cutter moves in synchronization with the pipe, ensuring square and burr-free pipe ends. Depending on customer requirements, the production line can be equipped with either a planetary cutting system or a dust-free cutter for cleaner operation and improved working conditions.

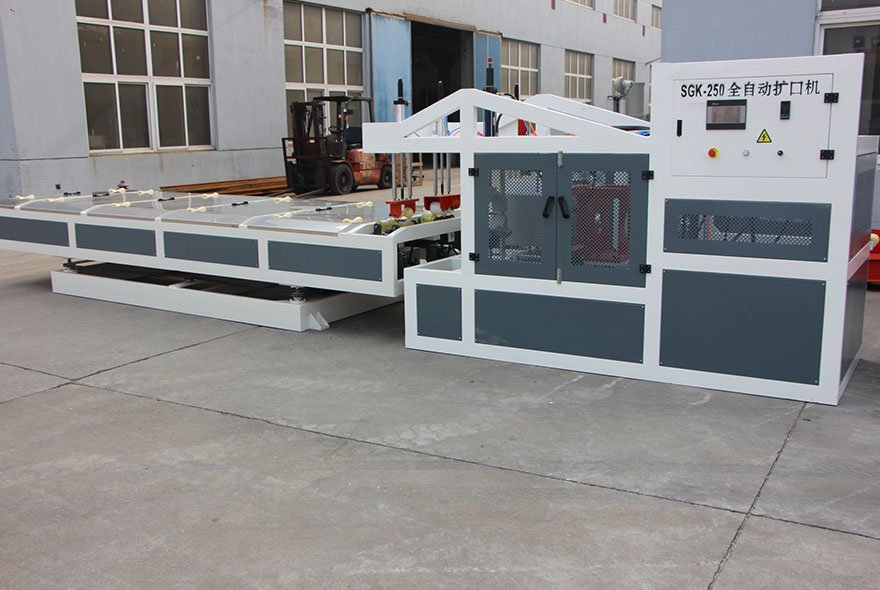

For pipes requiring socket connections, the automatic belling machine completes the next stage of production. The pipe end is heated evenly using infrared or hot-air technology before being formed into a precision socket. Advanced temperature control and automated forming ensure excellent dimensional accuracy and reliable joint performance. The entire socketing process, including feeding, heating, forming, cooling, and unloading, is completed automatically to maximize production efficiency.

After processing, the finished pipes are transferred to the automatic stacking system. Servo-controlled handling equipment arranges the pipes neatly while preventing scratches or impact damage. Optional conveying and packaging systems can further automate the entire production process, reducing labor requirements and improving overall efficiency.

Quality control is integrated throughout every stage of production. Online measuring systems continuously monitor pipe diameter, wall thickness, and dimensional consistency. Any deviation beyond preset tolerances is immediately detected, allowing operators to make adjustments without interrupting production. This ensures stable product quality and minimizes material waste.

The intelligent PLC control system connects all equipment into one integrated operating platform. Operators can monitor production status, adjust processing parameters, store product recipes, and review alarm information through a centralized Human-Machine Interface. Production data can also be recorded for quality traceability and process optimization.

Energy efficiency is another important feature of our PVC pipe production line. High-efficiency motors, variable frequency drives, optimized screw design, and intelligent heating control work together to reduce power consumption while maintaining high production capacity. The water recycling system further minimizes environmental impact and operating costs.

Safety is fully considered throughout the equipment design. Protective covers, emergency stop systems, overload protection, and intelligent fault diagnosis ensure reliable and safe operation. The modular machine structure also simplifies maintenance, reducing downtime and improving long-term productivity.

This production line can manufacture a wide range of PVC pipe products, including water supply pipes, drainage pipes, electrical conduit pipes, agricultural irrigation pipes, cable protection pipes, ventilation ducts, and industrial piping systems. Different pipe diameters, wall thicknesses, and international standards can be achieved by simply changing the tooling and adjusting production parameters.

Before delivery, every production line undergoes complete assembly, testing, and trial production to ensure stable operation and excellent product quality. Our experienced engineering team provides comprehensive technical support, including factory layout design, equipment installation, commissioning, operator training, and long-term after-sales service.

With reliable performance, advanced automation, energy-efficient operation, and flexible configuration, our PVC Pipe Production Line provides an ideal solution for manufacturers seeking higher productivity, superior product quality, and lower operating costs.

Driven by innovation and built with precision, our equipment helps customers around the world achieve sustainable growth and long-term success.

Thank you for watching. We look forward to working with you and creating greater value together through advanced plastic extrusion technology.
