PE Vacuum Extrusion Insulated Jacket Pipe Production Line

High-Performance PE Jacket Pipe Extrusion Line for District Heating and Pre-Insulated Pipe Manufacturing

As global demand for energy-efficient district heating, district cooling, oil and gas transportation, and industrial pipeline insulation continues to grow, PE vacuum extrusion insulated jacket pipes have become the preferred solution for protecting pre-insulated steel pipes from corrosion, moisture, and environmental damage. Our PE Vacuum Extrusion Insulated Jacket Pipe Production Line is specifically engineered to manufacture high-quality HDPE protective jacket pipes with excellent dimensional accuracy, superior surface finish, and long-term durability.

Combining advanced vacuum extrusion technology with intelligent automation, this production line integrates high-efficiency material feeding, PE extrusion, vacuum sizing, precision calibration, water cooling, haul-off, cutting, stacking, and PLC control into one fully automated manufacturing system. Designed for continuous heavy-duty production, the line delivers high output, excellent concentricity, low energy consumption, and stable long-term operation.

Whether you manufacture pre-insulated pipes for district heating networks, underground pipelines, chemical plants, or industrial infrastructure, our PE Vacuum Extrusion Insulated Jacket Pipe Production Line offers a reliable and cost-effective turnkey solution.

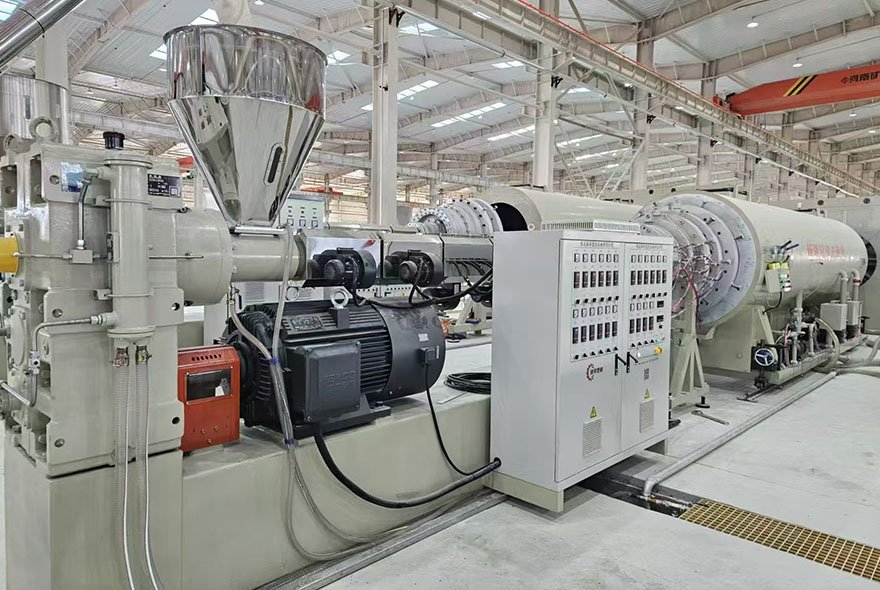

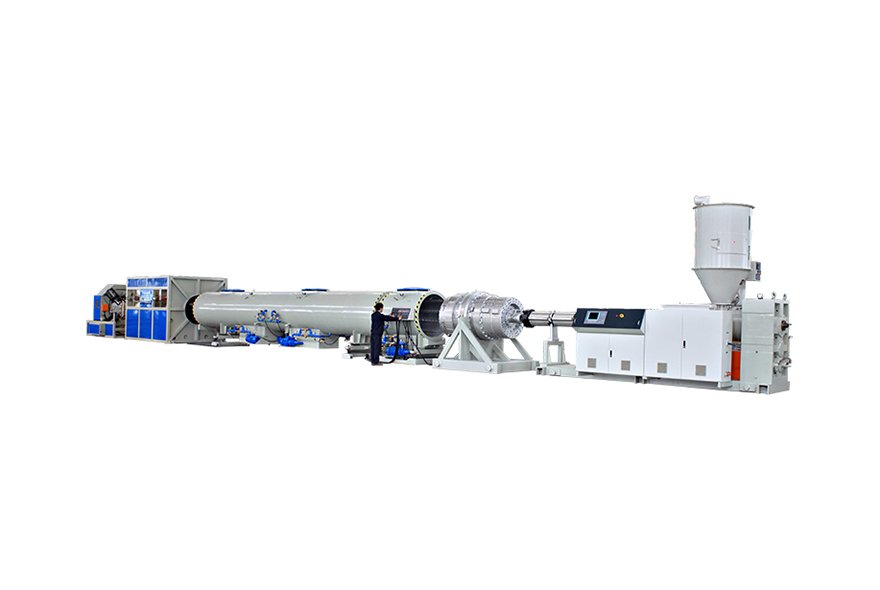

Complete PE Jacket Pipe Manufacturing Process

The production line consists of the following major equipment:

· Automatic Material Feeding System

· High-Efficiency Single Screw Extruder

· Spiral Extrusion Die Head

· Vacuum Calibration Tank

· Stainless Steel Water Cooling Tank

· Multi-Track Precision Haul-Off Machine

· Planetary Cutting Machine

· Automatic Pipe Stacker

· PLC Intelligent Control System

Each unit is carefully synchronized to ensure smooth production, accurate pipe dimensions, and continuous operation.

High-Efficiency PE Extrusion Technology

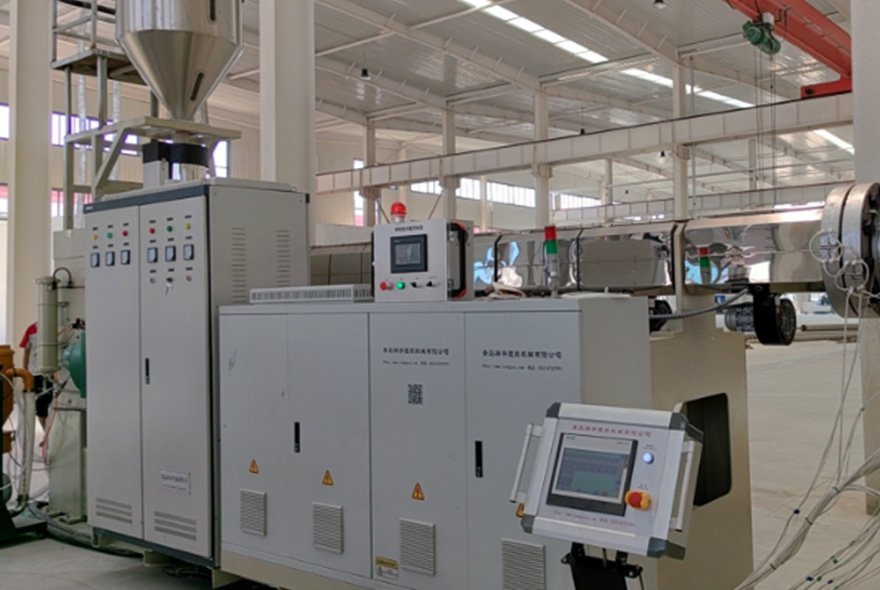

The production process begins with a high-performance single screw extruder specially designed for processing HDPE, MDPE, and other polyethylene materials.

The optimized screw structure provides:

· Excellent plasticizing performance

· Stable melt pressure

· Uniform material mixing

· High extrusion capacity

· Low energy consumption

· Long service life

The advanced barrel heating system ensures consistent melt temperature throughout production, minimizing material degradation while improving extrusion efficiency.

Advanced Vacuum Extrusion System

Unlike conventional extrusion methods, the vacuum extrusion process produces PE jacket pipes with superior dimensional accuracy and smoother surfaces.

The vacuum calibration system offers several advantages:

· Accurate pipe diameter

· Excellent roundness

· Uniform wall thickness

· Improved concentricity

· Smooth glossy surface

· Reduced material shrinkage

Stable vacuum pressure ensures precise calibration, making the finished jacket pipe ideal for polyurethane foam insulation applications.

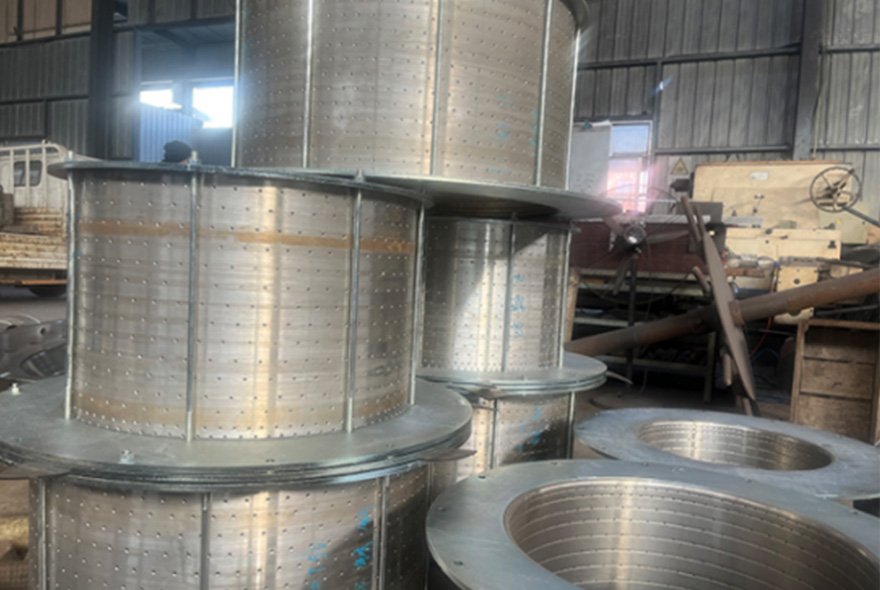

Precision Calibration and Cooling

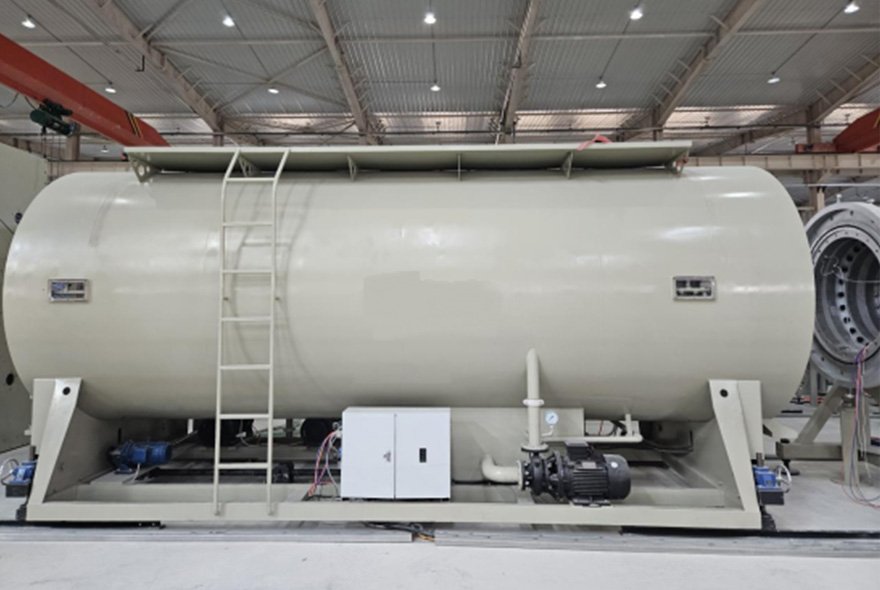

After leaving the extrusion die, the molten PE pipe enters the vacuum sizing tank, followed by multiple stainless steel water cooling tanks.

The optimized cooling system provides:

· Fast and uniform cooling

· Stable pipe dimensions

· Reduced internal stress

· Excellent mechanical strength

· Improved impact resistance

Efficient cooling allows the production line to operate continuously at higher speeds without compromising product quality.

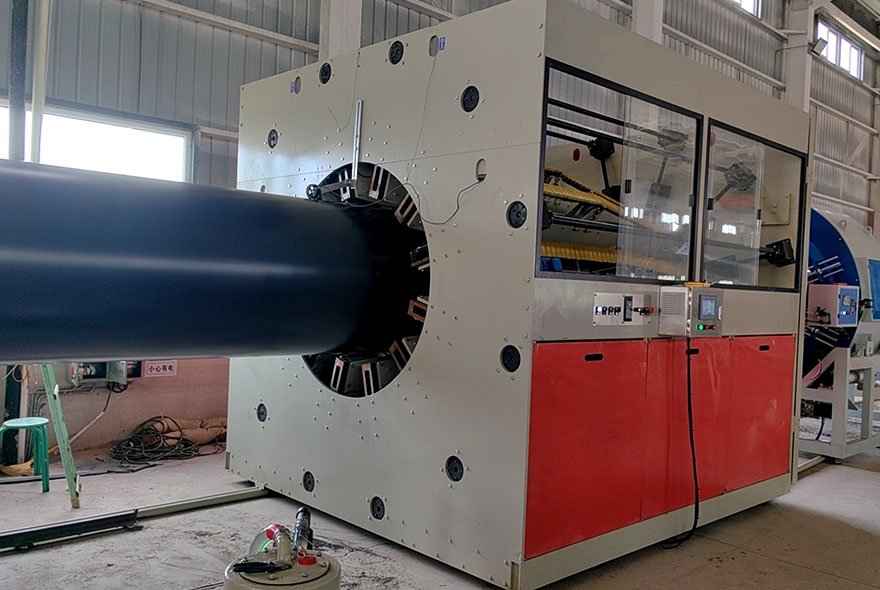

Intelligent Haul-Off and Cutting System

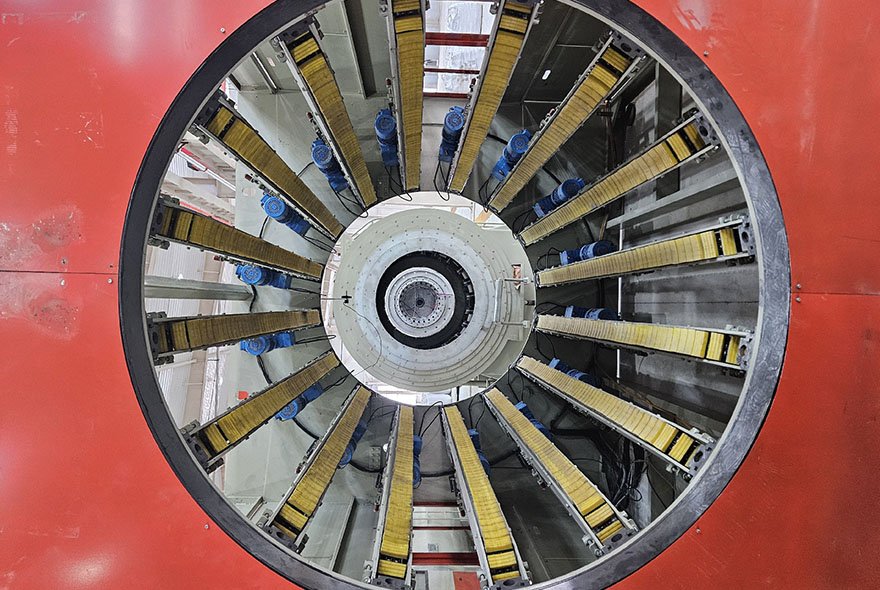

The servo-controlled haul-off machine maintains constant pulling speed throughout the production process.

Features include:

· Stable traction force

· Non-slip rubber belts

· Frequency-controlled motors

· Automatic speed synchronization

· High dimensional accuracy

The automatic planetary cutting machine delivers clean, burr-free pipe ends without deforming the pipe structure.

Optional dust-free cutting technology further improves the production environment.

Fully Automatic PLC Control System

The entire production line is equipped with an advanced PLC control system and user-friendly touchscreen interface.

Operators can easily monitor and adjust:

· Extrusion temperature

· Screw speed

· Vacuum pressure

· Cooling water temperature

· Haul-off speed

· Pipe length

· Alarm system

· Production statistics

The intelligent automation system greatly reduces manual operation while ensuring stable production quality.

Outstanding Advantages of the PE Vacuum Extrusion Insulated Jacket Pipe Production Line

High Production Efficiency

Optimized extrusion technology enables continuous high-speed production with maximum output and minimum downtime.

Excellent Pipe Quality

Vacuum calibration ensures precise pipe dimensions, smooth surfaces, and superior concentricity.

Energy-Saving Operation

Efficient motors, optimized screw design, and intelligent temperature control reduce electricity consumption while maintaining high productivity.

Stable Continuous Production

All production units operate synchronously through PLC control, ensuring reliable long-term operation.

Low Maintenance Cost

The modular machine structure simplifies maintenance and replacement of wear parts, reducing service time and operating expenses.

Long Equipment Lifespan

Manufactured with premium mechanical components and high-quality electrical systems, the production line provides years of reliable industrial operation.

Applications of PE Insulated Jacket Pipes

PE insulated jacket pipes produced by this extrusion line are widely used in:

· District heating networks

· District cooling systems

· Pre-insulated steel pipe manufacturing

· Underground hot water pipelines

· Oil and gas transportation

· Chemical processing plants

· Thermal power stations

· Municipal utility projects

· Industrial pipeline insulation

· Central heating systems

· Renewable energy infrastructure

· Pipeline corrosion protection

The HDPE outer jacket provides outstanding protection against moisture, UV exposure, corrosion, soil chemicals, and mechanical damage, significantly extending pipeline service life.

Technical Features

· High-Efficiency HDPE Extrusion

· Vacuum Sizing Technology

· Spiral Die Head Design

· PLC Intelligent Control

· Automatic Temperature Regulation

· Stainless Steel Vacuum Tank

· Multi-Stage Water Cooling

· Precision Haul-Off System

· Planetary Pipe Cutting

· Automatic Pipe Stacking

· Stable Continuous Production

· Energy-Saving Design

· Low Maintenance Cost

· High Automation Level

· Customized Pipe Diameter Solutions

Why Choose Our PE Vacuum Extrusion Insulated Jacket Pipe Production Line?

As an experienced manufacturer of plastic extrusion machinery, we provide complete turnkey solutions for insulated pipe production worldwide.

Our production lines feature:

· Advanced European extrusion technology

· Premium international electrical components

· Precision CNC machining

· Strict factory quality inspection

· Professional installation and commissioning

· Comprehensive operator training

· Lifetime technical support

· Global after-sales service

· Customized engineering solutions

From equipment selection to installation, commissioning, and production optimization, our engineering team supports customers throughout the entire project lifecycle.

Whether you produce PE jacket pipes for district heating, polyurethane insulated pipes, underground utility pipelines, or industrial insulation systems, our PE Vacuum Extrusion Insulated Jacket Pipe Production Line delivers the efficiency, precision, and reliability required to compete in today's global market.

Frequently Asked Questions (FAQ)

Q1: What materials can this production line process?

A: The line is designed for HDPE, MDPE, and PE100 polyethylene materials, which are commonly used for protective jacket pipes in pre-insulated pipeline systems.

Q2: What pipe diameters can the production line produce?

A: Standard production ranges from Ø90 mm to Ø1380 mm, with customized configurations available for larger or smaller pipe sizes.

Q3: Why is vacuum extrusion important?

A: Vacuum extrusion improves pipe roundness, wall thickness consistency, concentricity, and surface quality, resulting in higher-quality jacket pipes with better performance during polyurethane foam insulation.

Q4: What industries use PE insulated jacket pipes?

A: They are widely used in district heating, district cooling, oil and gas pipelines, municipal engineering, chemical processing, thermal power plants, and industrial insulation projects.

Q5: Is the production line fully automatic?

A: Yes. The system integrates automatic extrusion, vacuum calibration, cooling, haul-off, cutting, stacking, and PLC control for continuous automated production.

Q6: Can the machine produce different wall thicknesses?

A: Yes. Wall thickness can be adjusted by modifying the extrusion parameters and die configuration to meet various international standards and project requirements.

Q7: How many operators are required?

A: Typically, one to three operators can efficiently manage the complete production line, depending on the production capacity and automation level.

Q8: Do you provide installation and technical training?

A: Yes. We offer on-site installation guidance, equipment commissioning, operator training, maintenance support, and comprehensive after-sales technical services worldwide.

Q9: Can the production line be customized?

A: Absolutely. We provide customized solutions based on pipe diameter, output capacity, voltage standards, factory layout, automation requirements, and customer-specific production needs.

Q10: What are the main benefits of your production line?

A: Our production line offers high production efficiency, precise vacuum calibration, stable extrusion performance, low energy consumption, intelligent PLC automation, excellent pipe quality, and long-term operational reliability, making it an ideal solution for modern insulated pipe manufacturing.
