PVC Fiber Reinforced Hose Production Line

High-Speed PVC Fiber Reinforced Hose Extrusion Line for Flexible Hose Manufacturing

As industries around the world continue to demand durable, flexible, and high-pressure hose solutions, PVC fiber reinforced hoses have become one of the most widely used products in agriculture, construction, industrial fluid transfer, and household applications. Our PVC Fiber Reinforced Hose Production Line is designed to manufacture premium-quality reinforced PVC hoses with excellent transparency, flexibility, pressure resistance, and long service life.

Built with advanced extrusion technology and intelligent automation, this complete production line integrates PVC hose extrusion, vacuum calibration, water cooling, fiber braiding, secondary extrusion, haul-off, printing, winding, and PLC control into one highly efficient manufacturing system. The production line delivers stable operation, high output, low energy consumption, and outstanding product consistency, making it an ideal investment for hose manufacturers worldwide.

Whether you are starting a new hose manufacturing facility or expanding your current production capacity, our PVC fiber reinforced hose extrusion line provides a reliable and cost-effective solution.

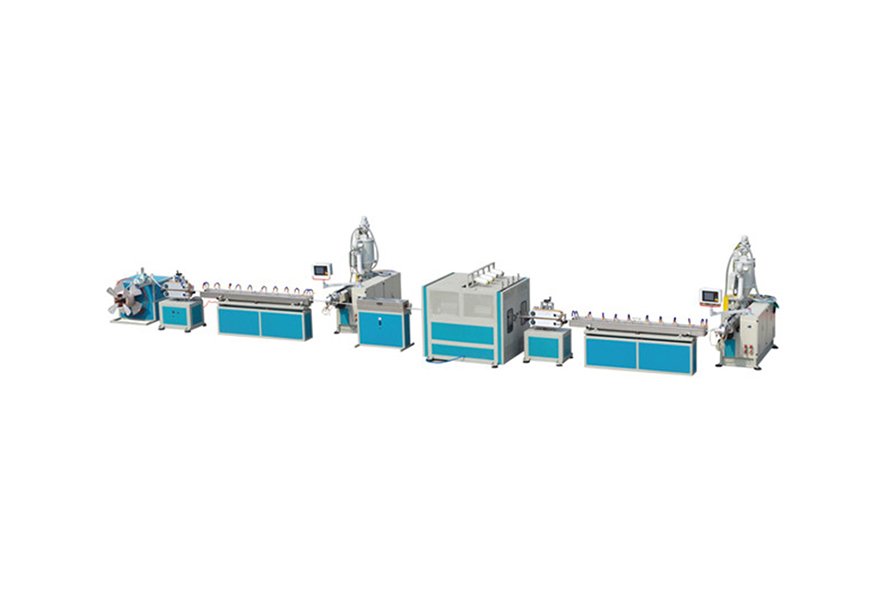

Complete PVC Fiber Reinforced Hose Production Process

The complete production line consists of the following equipment:

· High-Efficiency PVC Single Screw Extruder

· Inner Hose Extrusion Unit

· Vacuum Calibration & Cooling Tank

· Fiber Yarn Braiding Machine

· Outer Layer PVC Extrusion Unit

· Water Cooling Tank

· Precision Haul-Off Machine

· Online Printing System

· Automatic Winding Machine

· PLC Intelligent Control System

Each production stage is synchronized to ensure continuous, high-speed manufacturing with exceptional hose quality.

High-Efficiency PVC Extrusion System

The production process begins with a high-performance PVC single screw extruder specifically designed for soft PVC processing.

The optimized screw and barrel structure provides:

· Excellent plasticizing performance

· Stable melt pressure

· Uniform material flow

· Low energy consumption

· High production efficiency

The precision extrusion die produces a smooth and uniform inner PVC hose with accurate dimensions, providing the perfect foundation for fiber reinforcement.

Precision Fiber Braiding Technology

One of the most important components of the production line is the automatic fiber braiding machine.

High-strength polyester yarn is woven uniformly around the inner PVC hose, creating a reinforced middle layer that dramatically increases pressure resistance while maintaining flexibility.

Key advantages include:

· Uniform braiding angle

· Stable yarn tension

· High weaving speed

· Excellent reinforcement strength

· Consistent hose quality

The intelligent braiding system ensures every meter of hose achieves reliable mechanical performance for demanding applications.

Secondary PVC Coating Extrusion

After fiber reinforcement, the hose enters the second extrusion unit where an outer layer of transparent or colored PVC is evenly coated over the braided reinforcement.

The secondary extrusion process provides:

· Excellent adhesion between PVC and fiber

· Smooth hose surface

· High transparency

· Wear resistance

· UV resistance

· Long service life

The result is a durable PVC fiber reinforced hose with outstanding flexibility and pressure resistance.

Intelligent Cooling and Calibration System

The newly extruded hose passes through precision cooling tanks designed to stabilize the hose dimensions and improve product appearance.

The optimized cooling system ensures:

· Accurate hose diameter

· Stable wall thickness

· Smooth surface finish

· Excellent transparency

· Reduced deformation

Efficient cooling allows continuous production at higher speeds while maintaining premium product quality.

Automatic Haul-Off and Winding

The precision haul-off machine maintains constant pulling force to ensure stable hose dimensions throughout the production process.

The automatic winding system features:

· Adjustable winding speed

· Uniform roll formation

· Automatic tension control

· Continuous production

· Easy packaging and transportation

Optional automatic coiling and cutting systems can further improve production efficiency.

Intelligent PLC Control System

The entire PVC fiber reinforced hose production line is equipped with a modern PLC control system and touchscreen interface.

Operators can easily monitor and adjust:

· Extrusion temperature

· Screw speed

· Braiding speed

· Cooling parameters

· Production speed

· Winding settings

· Alarm monitoring

· Production data

The intelligent control system reduces manual intervention while improving operational stability and production efficiency.

Advantages of Our PVC Fiber Reinforced Hose Production Line

High Production Efficiency

The synchronized extrusion and braiding systems achieve continuous high-speed production with stable performance.

Excellent Hose Quality

Precision extrusion and uniform fiber reinforcement ensure excellent pressure resistance, flexibility, and dimensional accuracy.

Energy Saving Design

Optimized heating systems, efficient motors, and intelligent control significantly reduce power consumption.

Fully Automated Operation

The integrated production line minimizes labor costs while improving manufacturing consistency.

Easy Maintenance

Modular machine design allows convenient maintenance, quick replacement of components, and reduced downtime.

Long Equipment Service Life

Premium mechanical components and precision manufacturing ensure reliable long-term operation.

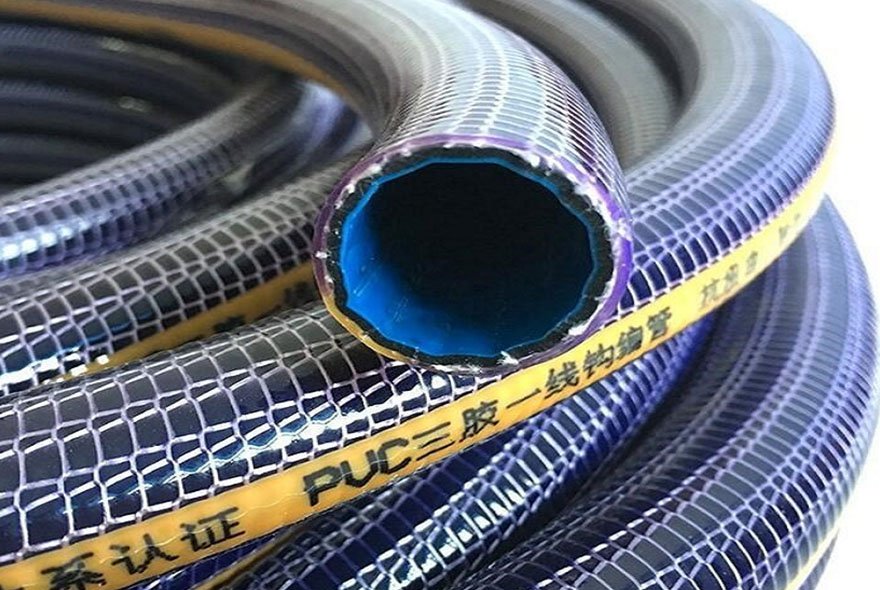

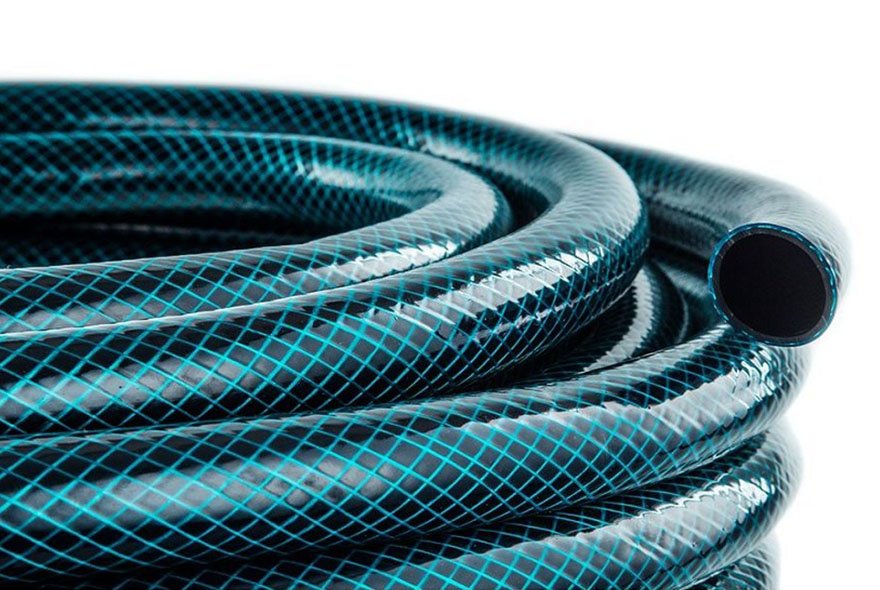

Applications of PVC Fiber Reinforced Hose

PVC fiber reinforced hoses are widely used in numerous industries, including:

· Agricultural irrigation systems

· Garden watering equipment

· Industrial water transfer

· Air compressor hoses

· Pneumatic tools

· Chemical liquid transportation

· Food-grade fluid delivery

· Construction sites

· Mining operations

· Household water supply

· Machinery cooling systems

· Factory fluid transportation

The reinforced structure allows the hose to withstand higher working pressure while remaining lightweight and flexible.

Technical Features

· High-Efficiency PVC Extrusion

· Precision Fiber Braiding Technology

· Dual Extrusion Process

· Intelligent PLC Control

· Automatic Temperature Regulation

· Stable Cooling System

· Precision Haul-Off

· Automatic Winding Machine

· Energy-Saving Design

· Continuous Production

· Easy Operation

· Low Maintenance Cost

· Customized Hose Specifications

· Long-Term Stable Performance

Why Choose Our PVC Fiber Reinforced Hose Production Line?

With years of experience in plastic extrusion machinery manufacturing, we provide complete turnkey solutions for PVC hose production.

Our production lines feature:

· Advanced European extrusion technology

· Premium international electrical components

· Precision machining and assembly

· Strict factory quality inspection

· Professional installation and commissioning

· Comprehensive operator training

· Lifetime technical support

· Worldwide after-sales service

We help customers improve production capacity, reduce manufacturing costs, and produce high-quality reinforced PVC hoses that meet international market standards.

Whether you manufacture industrial hoses, agricultural irrigation hoses, air hoses, or multi-purpose flexible hoses, our PVC Fiber Reinforced Hose Production Line offers the automation, precision, and reliability needed for long-term business success.

Frequently Asked Questions (FAQ)

Q1: What raw materials are suitable for this production line?

A: The production line is designed for soft PVC compounds and high-strength polyester fiber yarn. Different PVC formulations can be used depending on transparency, flexibility, pressure rating, and application requirements.

Q2: What hose sizes can the machine produce?

A: The production line can manufacture various hose diameters, typically ranging from 6 mm to 50 mm, with customized sizes available upon request.

Q3: Can the machine produce transparent reinforced hoses?

A: Yes. The extrusion system supports crystal-clear PVC formulations as well as colored and opaque PVC materials.

Q4: What is the maximum production speed?

A: Production speed depends on hose diameter and wall thickness. High-speed configurations can achieve 15–35 meters per minute, ensuring efficient and continuous manufacturing.

Q5: Is the fiber braiding machine fully automatic?

A: Yes. The automatic braiding system precisely controls yarn tension, weaving angle, and synchronization to produce consistent reinforcement quality.

Q6: Can different pressure ratings be produced?

A: Yes. Pressure performance can be adjusted by changing hose dimensions, PVC formulation, fiber type, and braiding density.

Q7: Is online printing available?

A: Yes. An optional online printing system can print company logos, specifications, production dates, and custom branding directly onto the hose.

Q8: How many operators are required?

A: Under normal operating conditions, one to two operators can efficiently manage the entire production line.

Q9: Do you provide installation and training?

A: Yes. We provide overseas installation guidance, equipment commissioning, operator training, maintenance instruction, and comprehensive after-sales technical support.

Q10: Can the production line be customized?

A: Absolutely. We offer customized configurations based on hose diameter, production capacity, voltage requirements, factory layout, automation level, and customer-specific production needs.
