High-Speed Inline Drip Irrigation Tape Production Line

Advanced Inline Drip Tape Extrusion Machine for Efficient Agricultural Irrigation Manufacturing

As global agriculture continues to demand higher water efficiency and sustainable irrigation solutions, the need for high-quality inline drip irrigation tape has never been greater. Our High-Speed Inline Drip Irrigation Tape Production Line is specifically engineered to produce premium-quality flat emitter drip tape with exceptional precision, stability, and productivity.

Designed with advanced automation technology, this complete production line integrates automatic emitter feeding, high-speed insertion, precision extrusion, online cooling, vacuum calibration, haul-off, punching, winding, and intelligent control systems into one seamless manufacturing process. It is the ideal solution for manufacturers seeking high production efficiency, low operating costs, and consistent product quality.

Whether you are establishing a new drip irrigation tape factory or upgrading an existing production line, this equipment delivers outstanding performance for modern agricultural irrigation applications worldwide.

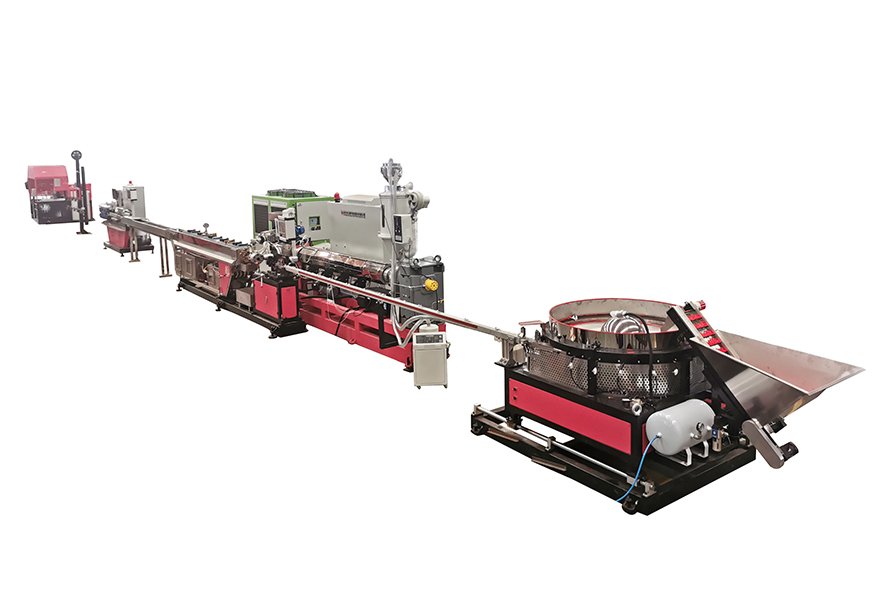

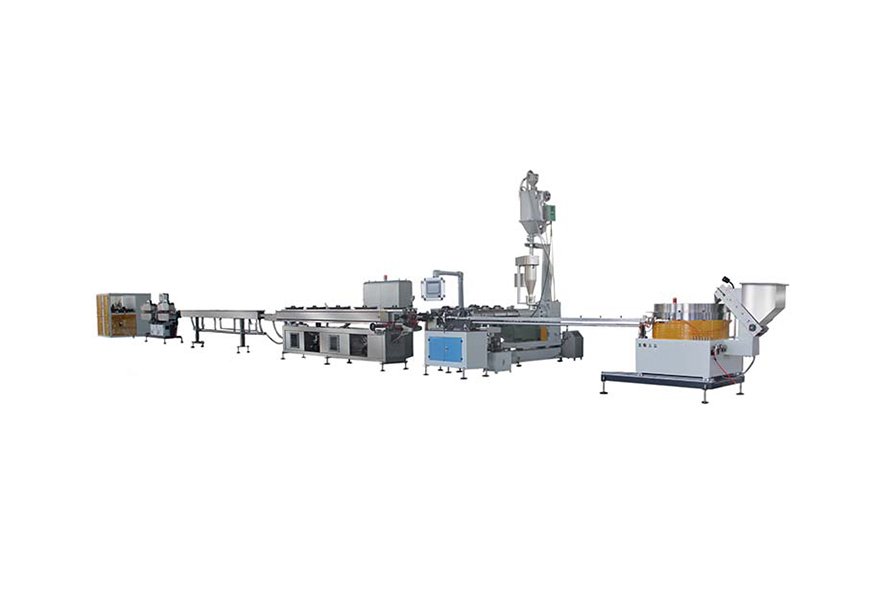

Complete High-Speed Production Solution

The complete inline drip irrigation tape production line consists of several integrated systems working together efficiently:

· Automatic Flat Emitter Feeding System

· Vibratory Emitter Sorting Machine

· High-Speed Emitter Inserting Unit

· Precision Single-Screw Extruder

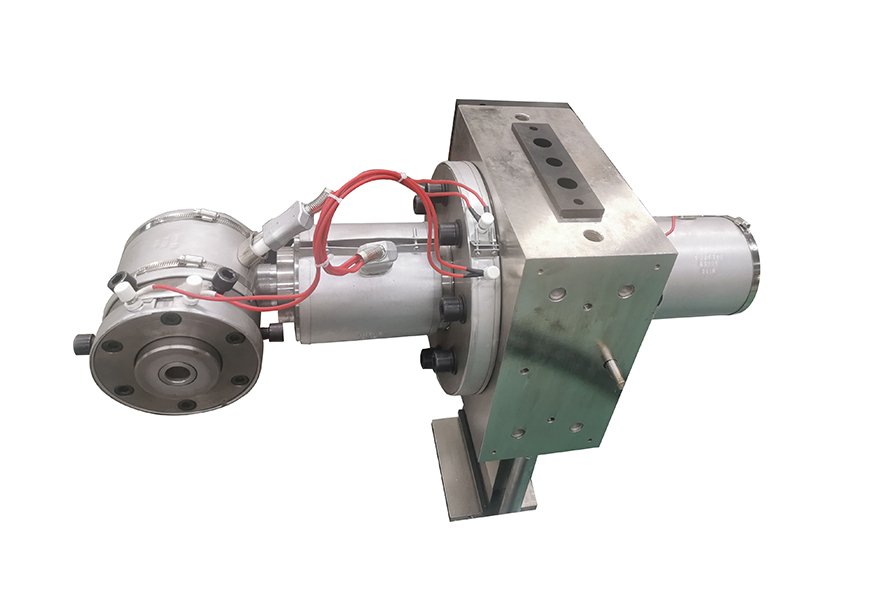

· Extrusion Die Head

· Vacuum Calibration Tank

· Water Cooling Tank

· Precision Haul-Off Machine

· Online Punching System

· Double Station Automatic Winder

· PLC Intelligent Control System

Each component is optimized to ensure maximum production speed while maintaining excellent tape quality.

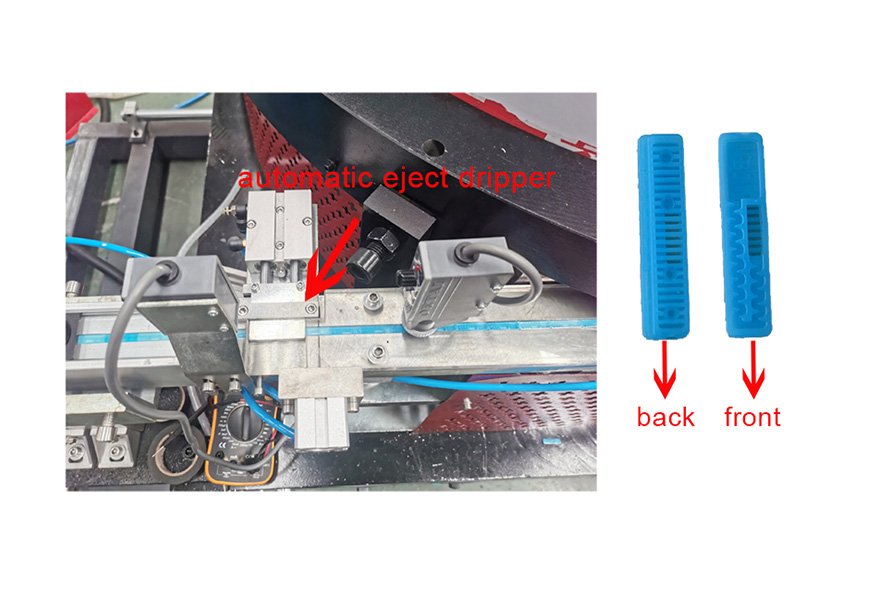

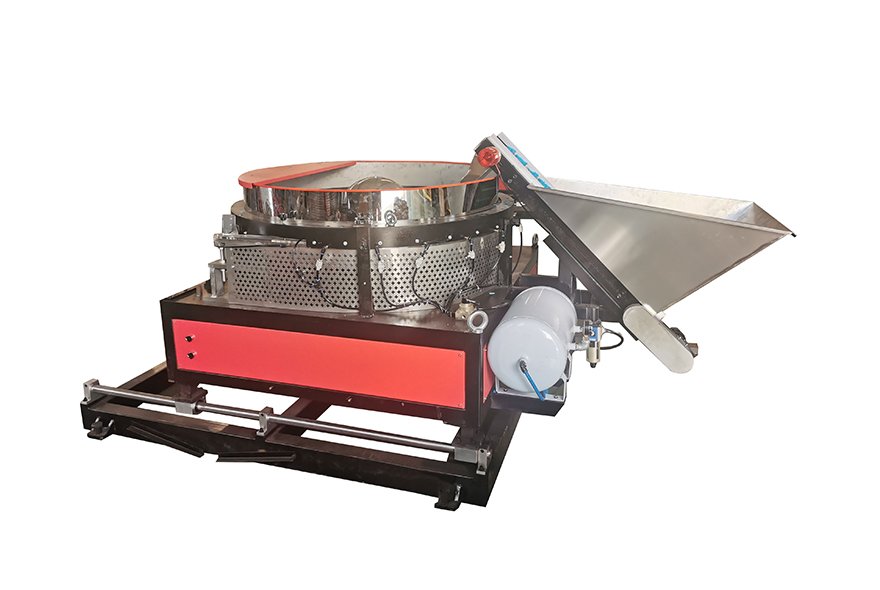

High-Speed Flat Emitter Feeding System

The production process begins with a fully automatic flat emitter feeding system. Thousands of emitters are automatically sorted, oriented, and transported into the inserting mechanism without manual intervention.

The intelligent vibration sorting technology ensures:

· Continuous emitter supply

· Accurate orientation

· Stable feeding

· Reduced labor costs

· Minimal emitter loss

The feeding system guarantees uninterrupted production even during long operating hours.

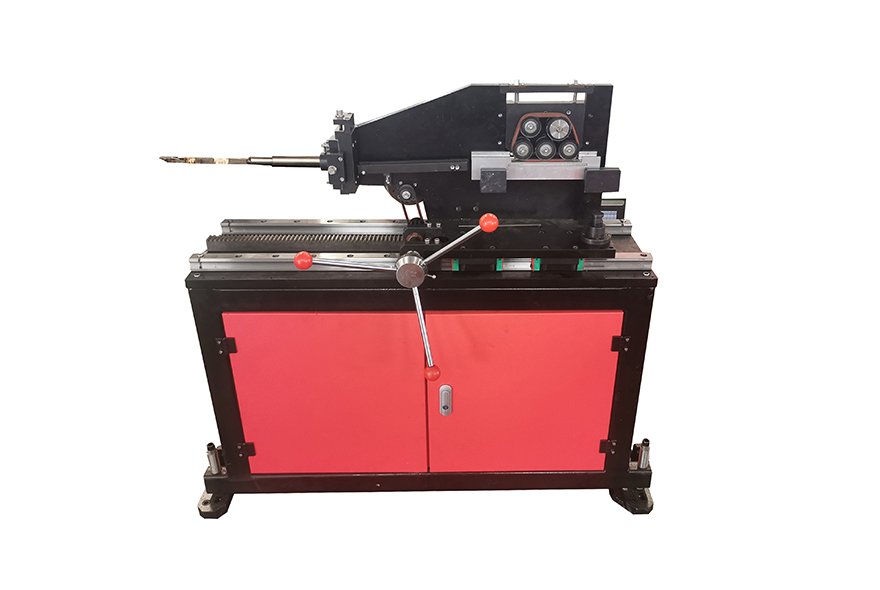

Precision High-Speed Emitter Insertion

One of the core technologies of this production line is the high-speed emitter inserting system.

The advanced servo-controlled mechanism inserts each flat emitter precisely into the molten PE pipe during extrusion. Accurate positioning ensures consistent emitter spacing throughout the entire production process.

Available emitter spacing includes:

· 100 mm

· 150 mm

· 200 mm

· 300 mm

· 400 mm

· Customized spacing available

High insertion accuracy significantly improves irrigation uniformity and product reliability.

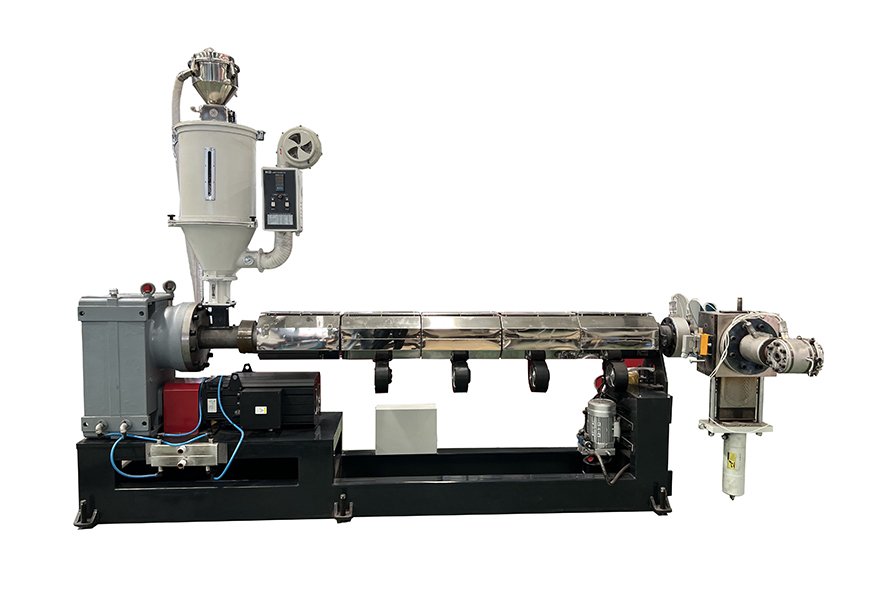

Advanced Extrusion Technology

The production line utilizes a high-efficiency single screw extruder specially designed for PE drip irrigation tape production.

Features include:

· High plasticizing efficiency

· Stable melt pressure

· Low energy consumption

· Excellent mixing performance

· Long service life

The optimized screw design produces uniform melt flow, resulting in smooth tape surfaces and excellent mechanical strength.

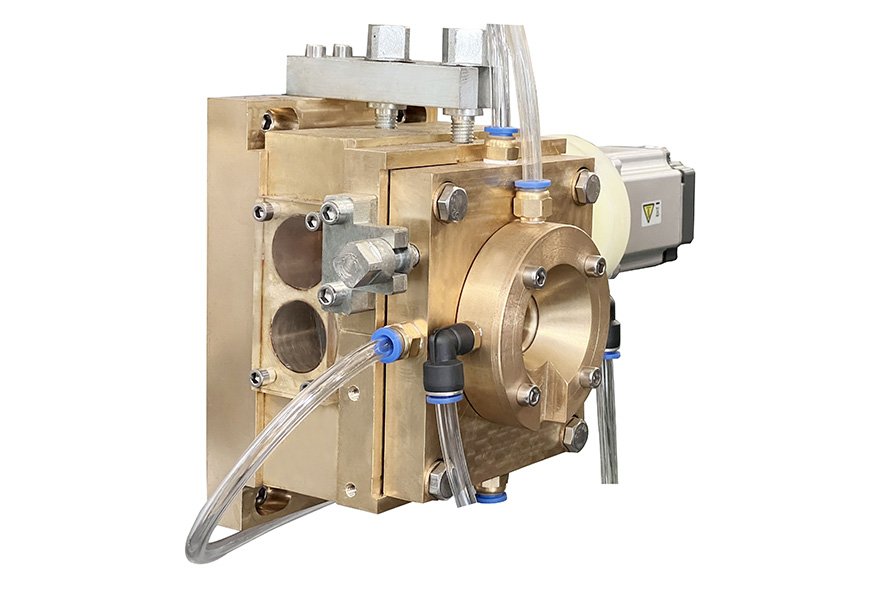

The precision extrusion die ensures perfect encapsulation of the emitters while maintaining uniform wall thickness.

Intelligent PLC Automation System

The entire production line is controlled through a modern PLC control system with a user-friendly touchscreen interface.

Operators can easily monitor and adjust:

· Extrusion temperature

· Production speed

· Emitter spacing

· Motor synchronization

· Alarm information

· Production statistics

Automatic synchronization between all production units minimizes manual adjustment while improving production consistency.

Stable Cooling and Calibration System

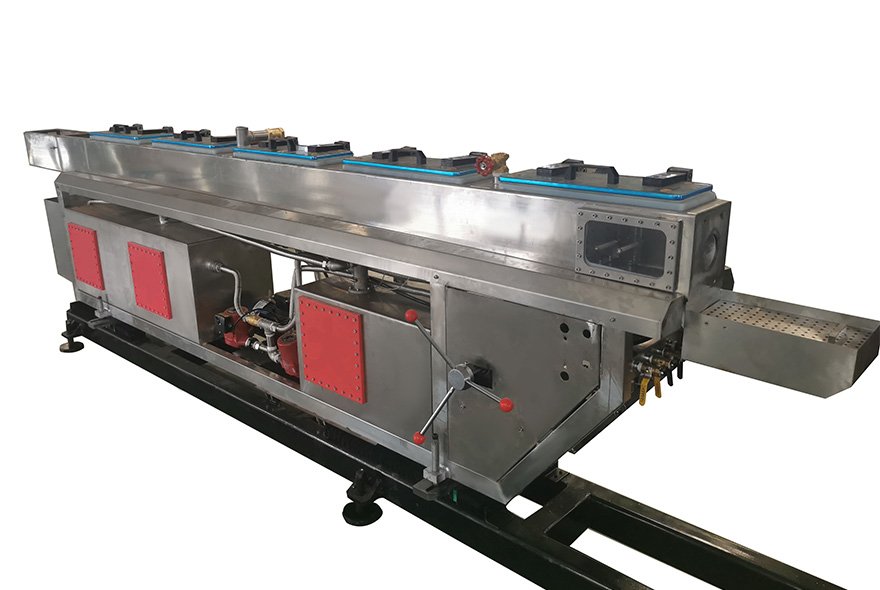

After extrusion, the drip tape enters the vacuum calibration tank and cooling system.

The optimized cooling design provides:

· Accurate tape dimensions

· Stable pipe diameter

· Smooth surface finish

· Excellent roundness

· Reduced deformation

Efficient cooling allows higher production speeds without sacrificing product quality.

High-Speed Haul-Off and Automatic Winding

The precision haul-off unit maintains constant pulling force throughout production.

Servo synchronization prevents tape deformation while ensuring stable production speed.

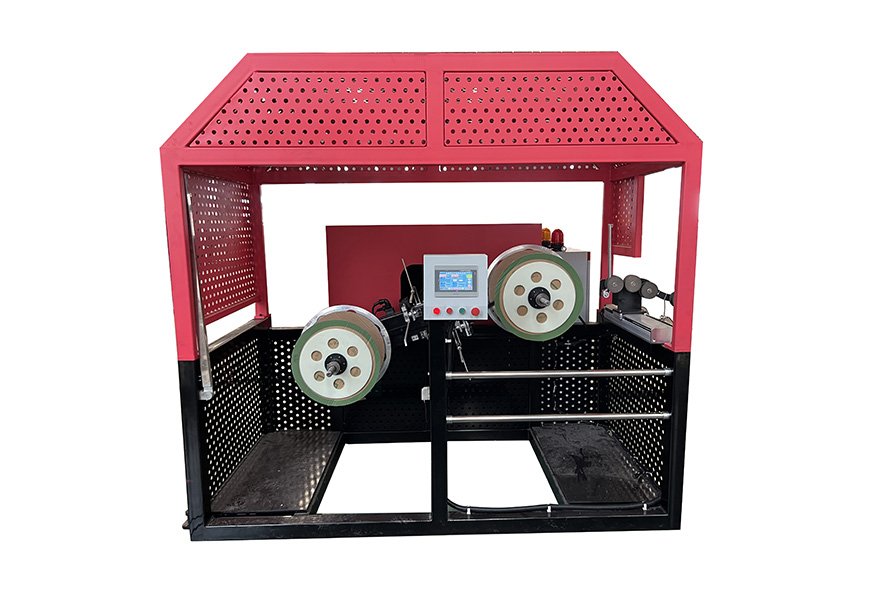

The automatic double-station winding machine provides:

· Automatic roll changing

· Uniform winding tension

· Neat finished rolls

· Reduced downtime

· Increased production efficiency

Finished drip tape rolls are compact, uniform, and easy to package and transport.

Outstanding Production Advantages

Compared with conventional drip tape manufacturing equipment, this high-speed production line offers significant advantages:

Higher Production Speed

Production speed can reach up to 300 meters per minute, greatly increasing factory output.

Excellent Product Quality

Precise emitter positioning and stable extrusion ensure consistent water flow performance and reliable irrigation efficiency.

Lower Operating Costs

Energy-saving motors, intelligent control systems, and optimized mechanical structures reduce electricity consumption and maintenance costs.

Fully Automatic Operation

Automation minimizes labor requirements while improving production stability and repeatability.

Easy Maintenance

The modular machine design allows quick maintenance, simple replacement of wearing parts, and shorter downtime.

Applications

The inline drip irrigation tape produced by this machine is widely used in:

· Agricultural irrigation

· Vegetable farming

· Greenhouse irrigation

· Orchard irrigation

· Vineyard irrigation

· Cotton cultivation

· Corn irrigation

· Sugarcane farming

· Landscape irrigation

· Nursery irrigation

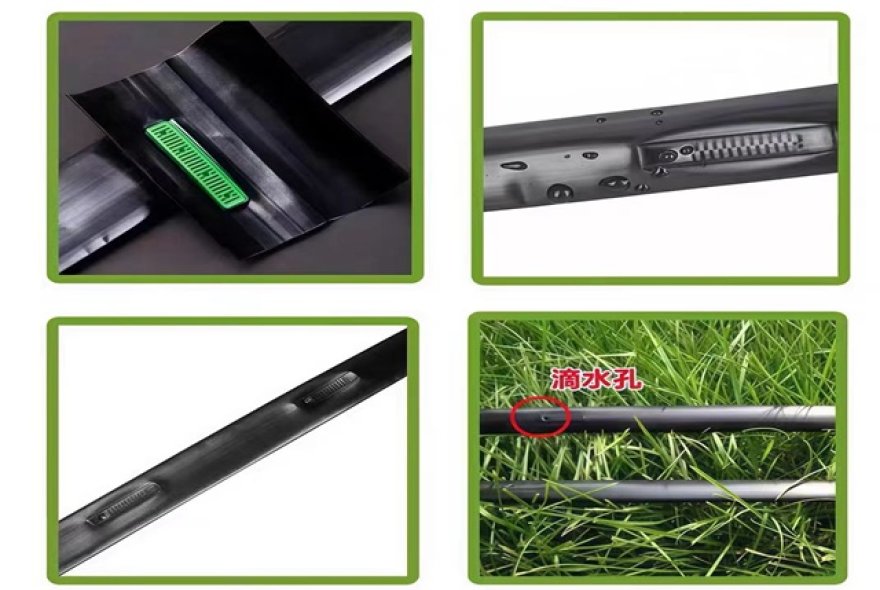

The produced drip tape provides uniform water distribution while significantly reducing water consumption and improving crop yields.

Technical Features

· High-Speed Flat Emitter Feeding

· Servo-Controlled Emitter Insertion

· Precision PE Extrusion

· PLC Intelligent Control

· Automatic Temperature Control

· Online Punching System

· Double Station Automatic Winder

· Stable Continuous Production

· Energy Saving Design

· Low Maintenance Cost

· Long Equipment Life

· Customized Configuration Available

Why Choose Our High-Speed Inline Drip Irrigation Tape Production Line?

With years of experience in plastic extrusion equipment manufacturing, we provide complete turnkey solutions for drip irrigation production.

Our machines feature:

· Reliable European-standard components

· Precision machining

· Strict quality inspection

· Professional installation guidance

· Technical training

· Lifetime technical support

· Worldwide after-sales service

We are committed to helping irrigation manufacturers improve production efficiency, reduce manufacturing costs, and produce world-class drip irrigation products.

Whether your factory is producing standard drip tape or customized irrigation products, our high-speed inline drip irrigation tape production line provides the performance, reliability, and automation required for long-term success.

FAQ – High-Speed Inline Drip Irrigation Tape Production Line

Q1: What materials can this production line process?

A: The machine is primarily designed for PE (Polyethylene) materials, including LDPE, LLDPE, and blended PE formulations suitable for drip irrigation tape production.

Q2: What is the maximum production speed?

A: Depending on the tape specification and emitter spacing, the production speed can reach up to 180 m/min.

Q3: Can the emitter spacing be customized?

A: Yes. Standard spacings include 100 mm, 150 mm, 200 mm, 300 mm, and 400 mm, with custom spacing available upon request.

Q4: Is the production line fully automatic?

A: Yes. The system integrates automatic emitter feeding, insertion, extrusion, cooling, punching, winding, and PLC control for continuous automated production.

Q5: What tape sizes can the machine produce?

A: Common tape diameters include 16 mm, 20 mm, and other customized specifications based on customer requirements.

Q6: Does the machine support different emitter types?

A: Yes. The production line can be configured to work with various flat inline emitters depending on the project requirements.

Q7: How many operators are required?

A: Typically, only one or two operators are needed to monitor and manage the complete production line.

Q8: Is installation and training provided?

A: Yes. We offer overseas installation guidance, operator training, commissioning, and comprehensive after-sales technical support.

Q9: What industries use inline drip irrigation tape?

A: Inline drip tape is widely used in agriculture, greenhouses, orchards, vineyards, landscaping, vegetable farms, nurseries, and precision irrigation projects.

Q10: Can the production line be customized?

A: Absolutely. We provide customized solutions based on production capacity, tape specifications, local power standards, and customer-specific manufacturing requirements.
