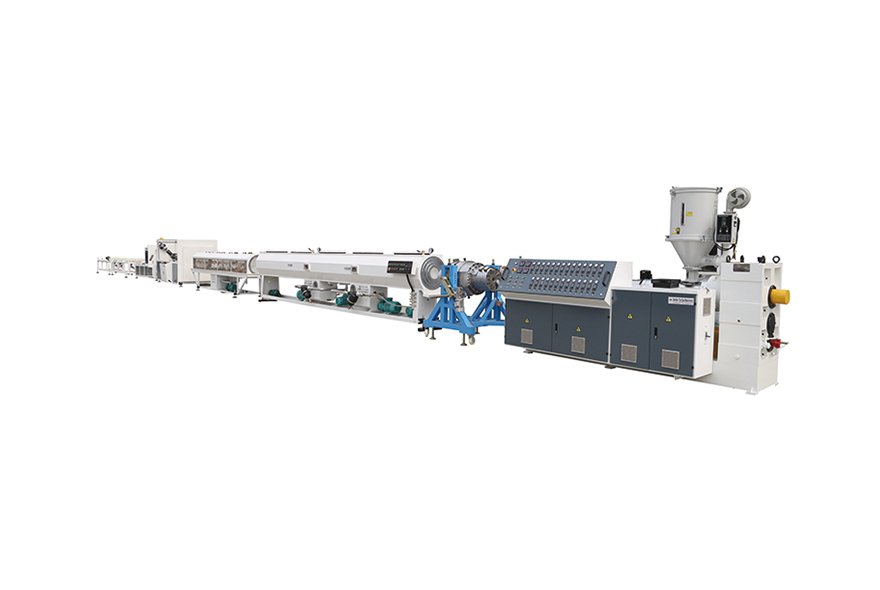

PE Pipe Production Line | HDPE Pipe Extrusion Line | Plastic Pipe Manufacturing Solution

Welcome to our advanced PE Pipe Production Line, a high-performance manufacturing solution designed for the production of HDPE pipes, PE water supply pipes, gas pipes, irrigation pipes, cable protection pipes, and industrial plastic piping systems.

As a professional PE pipe extrusion line manufacturer, we provide reliable, energy-efficient, and fully automated plastic pipe production equipment that helps customers improve productivity, reduce operating costs, and produce pipes that meet international quality standards.

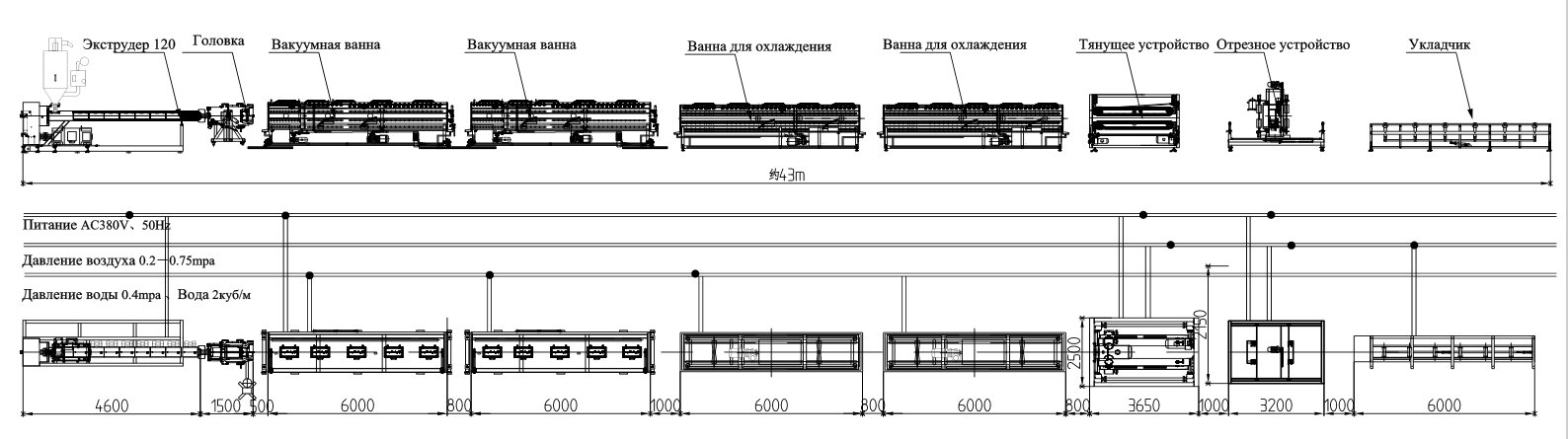

The production process begins with the automatic feeding system. High-quality HDPE or PE raw materials are transported from the storage hopper into the single screw extruder through a vacuum loader. Optional gravimetric dosing systems ensure precise material feeding, improving product consistency while reducing raw material waste.

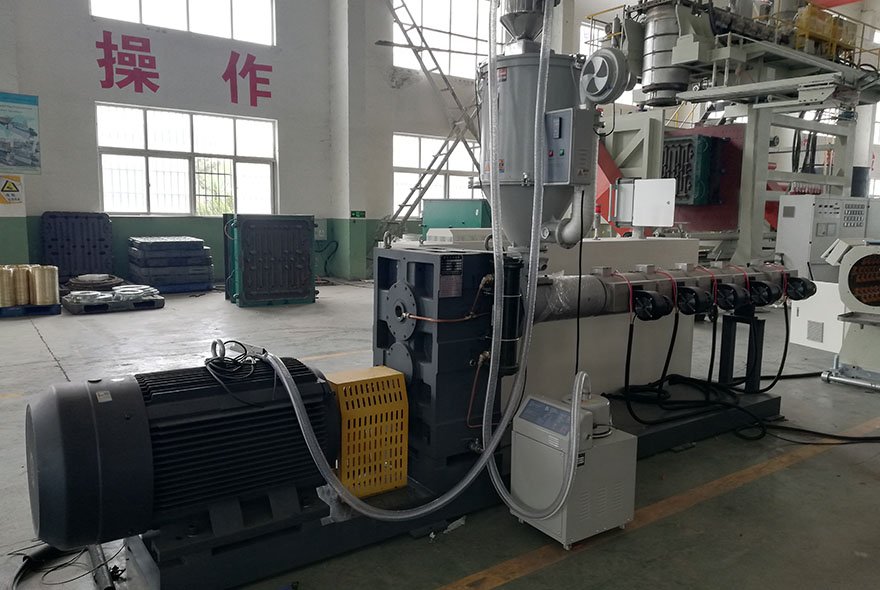

At the heart of the HDPE Pipe Extrusion Line is a high-efficiency single screw extruder. Designed with an optimized barrier screw and advanced mixing section, the extruder delivers excellent plasticizing performance, stable output, and low energy consumption. The specially engineered screw ensures uniform melting of polyethylene materials while maintaining high production capacity.

The barrel features multiple heating zones with intelligent temperature control. High-quality ceramic heaters and efficient cooling fans maintain stable processing temperatures throughout continuous production. The PLC control system automatically adjusts operating parameters to ensure consistent extrusion quality.

Driven by a high-performance AC motor or permanent magnet servo motor, the extrusion system offers reliable operation, low noise, and excellent energy efficiency. Compared with conventional extrusion equipment, our PE pipe manufacturing machine significantly reduces power consumption while maintaining high output.

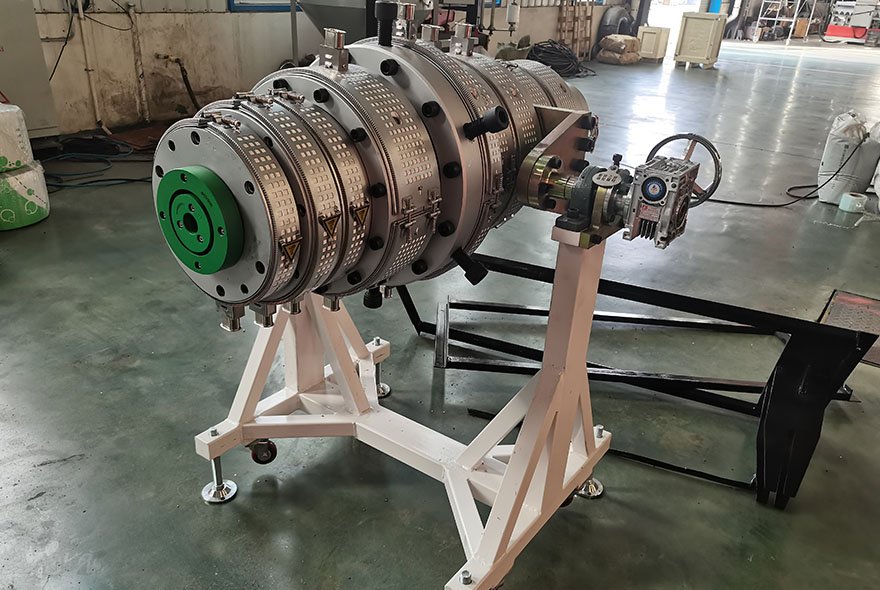

After plasticization, the molten material enters the precision extrusion die head. Manufactured using advanced CNC machining technology, the die provides balanced melt flow and produces pipes with uniform wall thickness, smooth inner and outer surfaces, and excellent concentricity.

Different die heads and calibration systems can be quickly replaced, allowing the production of PE pipes ranging from small communication conduit pipes to large-diameter water supply and drainage pipes. Our plastic pipe extrusion machine supports pipe diameters from 16 millimeters up to 1,600 millimeters or larger, depending on customer requirements.

The extruded pipe then enters the vacuum calibration tank, where precision calibration sleeves accurately shape the pipe while maintaining its diameter and roundness. The vacuum system continuously removes air from the calibration chamber, ensuring excellent dimensional accuracy throughout the production process.

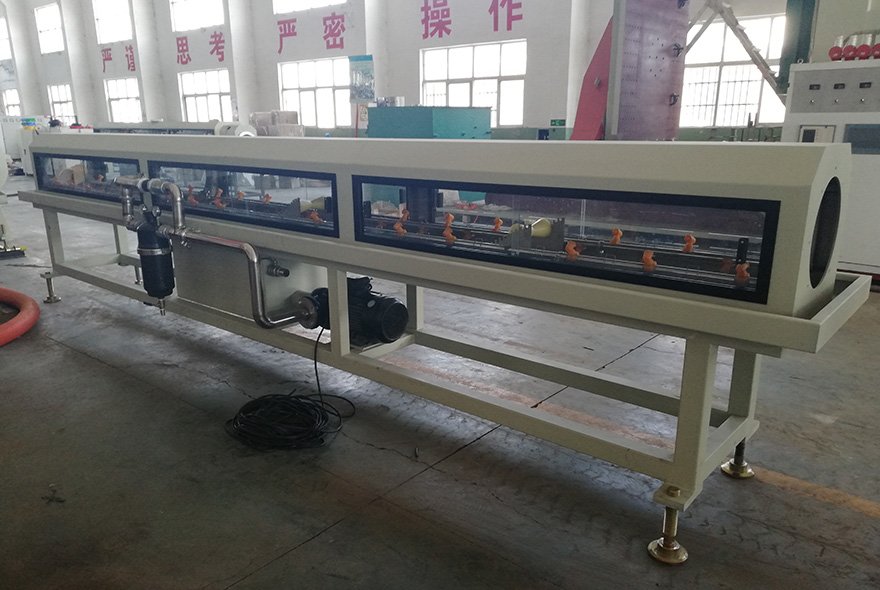

Multiple stainless-steel spray cooling tanks follow the vacuum calibration section. High-efficiency spray nozzles cool the pipe evenly, minimizing internal stress while improving long-term mechanical performance. The closed-loop water circulation system reduces water consumption and supports environmentally friendly production.

The cooled pipe is pulled forward by a synchronized haul-off machine. Depending on pipe diameter, the production line can be equipped with two-track, three-track, four-track, six-track, or eight-track haul-off units. Each track operates independently under frequency inverter or servo control, ensuring smooth and stable pulling speed without damaging the pipe surface.

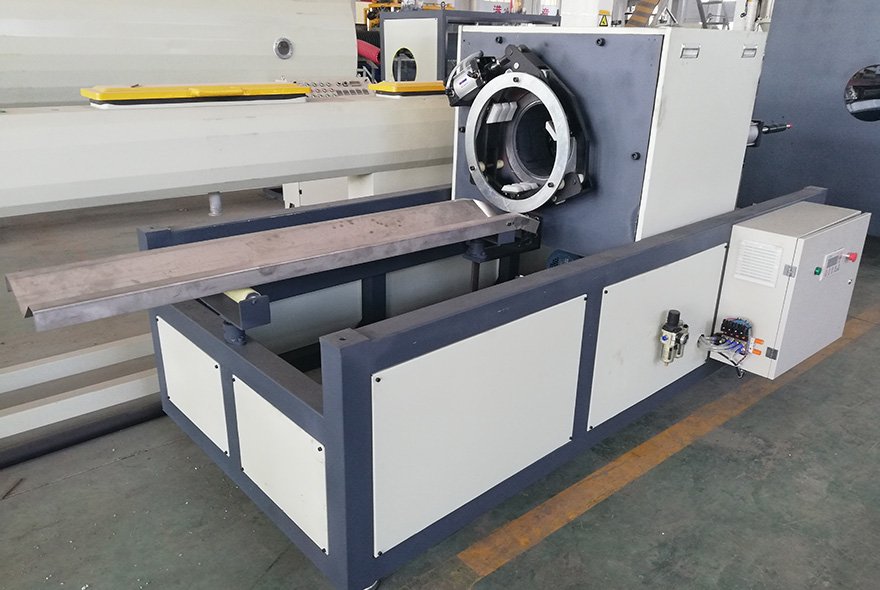

An automatic pipe cutting machine accurately cuts the finished pipe to the preset length. The flying cutter synchronizes with the extrusion speed, allowing continuous production without stopping the line. The cutting surface is smooth, square, and burr-free, meeting the requirements of modern pipe manufacturing.

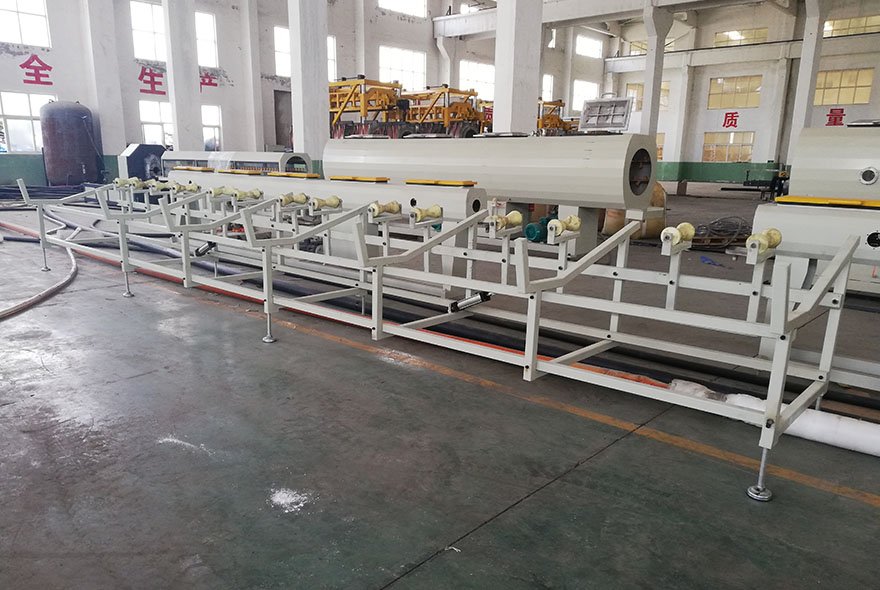

Finished pipes are transferred automatically to the stacking system, where they are neatly arranged for inspection, packaging, or transportation. Optional automatic conveying, labeling, printing, and packaging equipment can be integrated into the complete PE pipe production line, creating a fully automated manufacturing process.

Throughout production, intelligent online monitoring systems continuously measure pipe diameter, wall thickness, and production speed. Real-time production data are displayed on the touchscreen control panel, allowing operators to monitor equipment performance and adjust processing parameters immediately when necessary.

Our advanced PLC control system integrates every machine into one intelligent operating platform. Operators can easily manage the extruder, vacuum tank, cooling system, haul-off machine, cutter, and downstream equipment through a user-friendly Human-Machine Interface. Product recipes can be stored for different pipe specifications, reducing setup time and improving production efficiency.

Energy efficiency is one of the key advantages of our HDPE pipe manufacturing machine. High-efficiency motors, optimized screw design, intelligent heating control, and variable frequency drives work together to minimize electricity consumption while maintaining stable production capacity. The water recycling system further reduces operating costs and supports sustainable manufacturing.

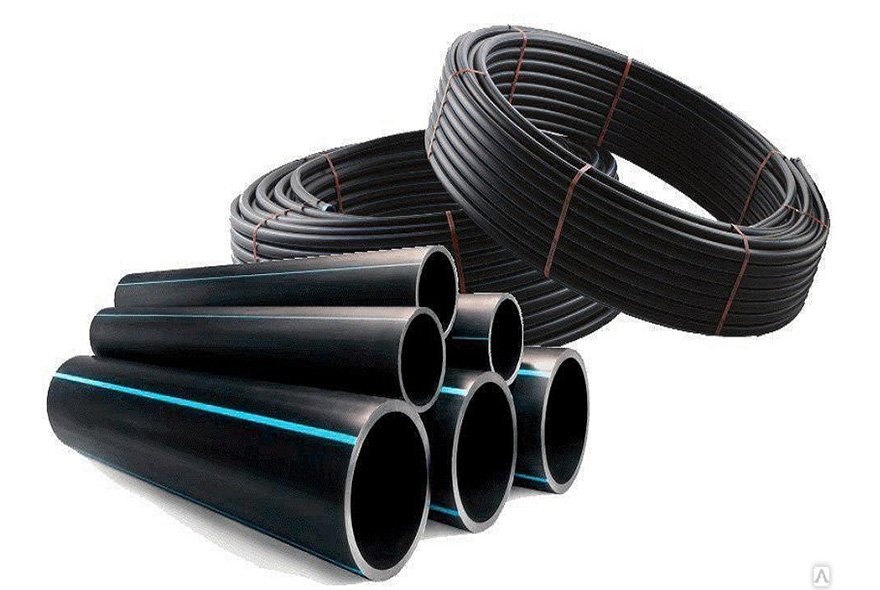

Our PE pipe extrusion line is suitable for manufacturing a wide range of polyethylene pipes, including HDPE water supply pipes, gas distribution pipes, agricultural irrigation pipes, drainage pipes, communication conduit pipes, cable protection pipes, geothermal pipes, and industrial pressure piping systems.

The finished pipes offer excellent corrosion resistance, high impact strength, outstanding flexibility, long service life, and superior chemical resistance, making them ideal for municipal infrastructure, construction projects, agriculture, mining, telecommunications, and industrial applications.

Before delivery, every plastic pipe extrusion line undergoes complete factory testing and trial production to ensure reliable mechanical performance and stable product quality. Our experienced engineers provide installation, commissioning, operator training, technical support, and comprehensive after-sales service to help customers achieve maximum production efficiency.

As a trusted PE pipe machine manufacturer, we are committed to delivering innovative extrusion technology, reliable equipment, and professional customer support. With years of experience in plastic extrusion machinery, our production lines have been successfully installed in markets across Asia, Europe, the Middle East, Africa, and South America.

Whether you are expanding an existing factory or building a new plastic pipe manufacturing facility, our PE Pipe Production Line offers the perfect combination of high productivity, intelligent automation, energy efficiency, and long-term reliability.

Thank you for choosing our plastic extrusion technology. We look forward to becoming your trusted partner for high-quality PE pipe production solutions and helping your business grow in the global plastic pipe industry.
