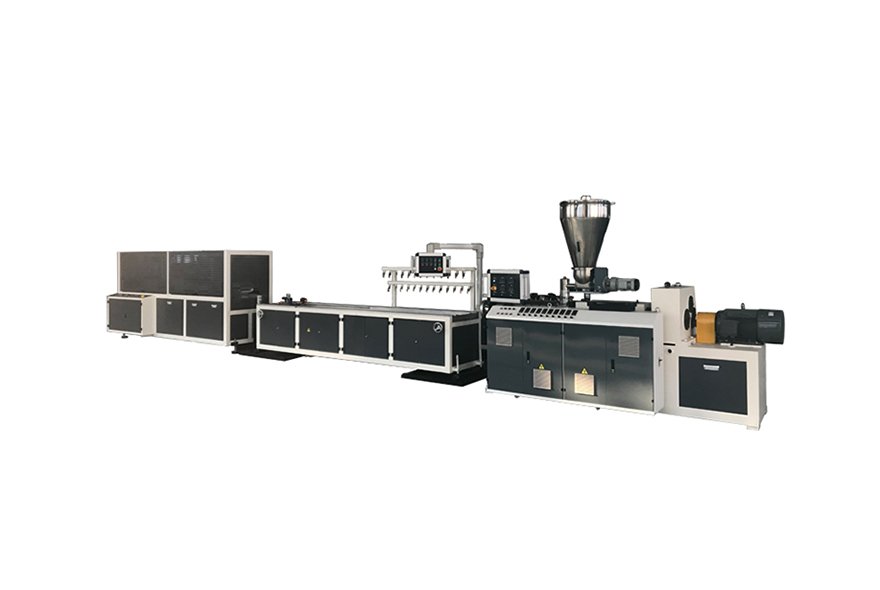

PVC/PE/PP Wood Plastic Composite (WPC) Profile Production Line
Introduction of PVC/PE/PP Wood Plastic Composite Profile Production Line
With the increasing demand for environmentally friendly building materials, Wood Plastic Composite (WPC) profiles have become an important alternative to traditional wood products. A PVC/PE/PP wood plastic composite profile production line is a complete extrusion system designed to manufacture high-quality WPC profiles by combining plastic resin (PVC, PE, or PP) with wood powder, bamboo fiber, or other natural fillers.
As a professional WPC profile extrusion line manufacturer, we provide advanced production solutions for different applications, including WPC decking, outdoor fencing, wall panels, door frames, decorative profiles, and landscaping products.
The PVC/PE/PP WPC profile production line adopts advanced extrusion technology to achieve continuous production, stable operation, high output, and excellent product quality. According to different raw materials and applications, the production line can be customized with different extruders, molds, auxiliary machines, and automation systems.
1. What Is a PVC/PE/PP WPC Profile Production Line?
A PVC/PE/PP wood plastic composite profile production line is an automated manufacturing system that produces wood-plastic profiles through extrusion technology.
The production process combines:
l PVC resin / PE resin / PP resin
l Wood powder
l Natural fiber
l Stabilizers
l Lubricants
l Color masterbatch
l Processing additives
After mixing, extrusion, molding, cooling, cutting, and surface treatment, the materials are transformed into durable WPC products.
Compared with traditional wood materials, WPC profiles offer:
l Waterproof performance
l Anti-corrosion properties
l Termite resistance
l Weather resistance
l Low maintenance requirements
l Environmental sustainability
l Long service life

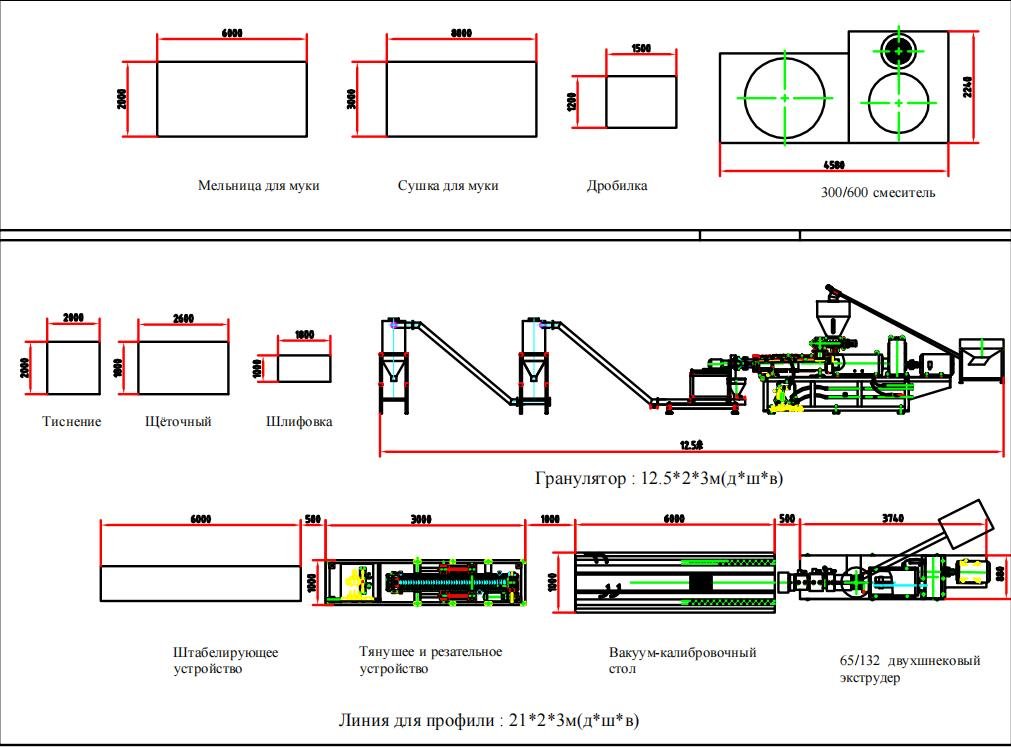

2. Main Components of PVC/PE/PP WPC Profile Production Line
A complete WPC profile extrusion line consists of several major systems, including material preparation equipment, extrusion equipment, forming equipment, cooling equipment, cutting equipment, and surface treatment machines.
2.1 Automatic Feeding System
The automatic feeding system is the first step of the wood plastic composite profile production line.
Main functions:
l Transport raw materials automatically
l Reduce manual operation
l Improve production efficiency
l Ensure stable material supply
Common equipment includes:
l Vacuum loader
l Screw conveyor
l Spring loader
l Automatic weighing system
The feeding system can accurately transport PVC, PE, PP resin, wood powder, and additives into the mixing system.
2.2 Mixing System
The mixing system is an essential auxiliary machine for WPC production.
It ensures uniform blending of plastic materials and wood fibers.
Main equipment:
l High-speed mixer
l Cooling mixer
l Automatic dosing system
The mixing process includes:
l Adding plastic resin
l Adding wood powder
l Adding additives
l High-speed mixing
l Cooling and storage
A high-quality mixing system improves:
l Material stability
l Product strength
l Surface appearance
l Extrusion performance

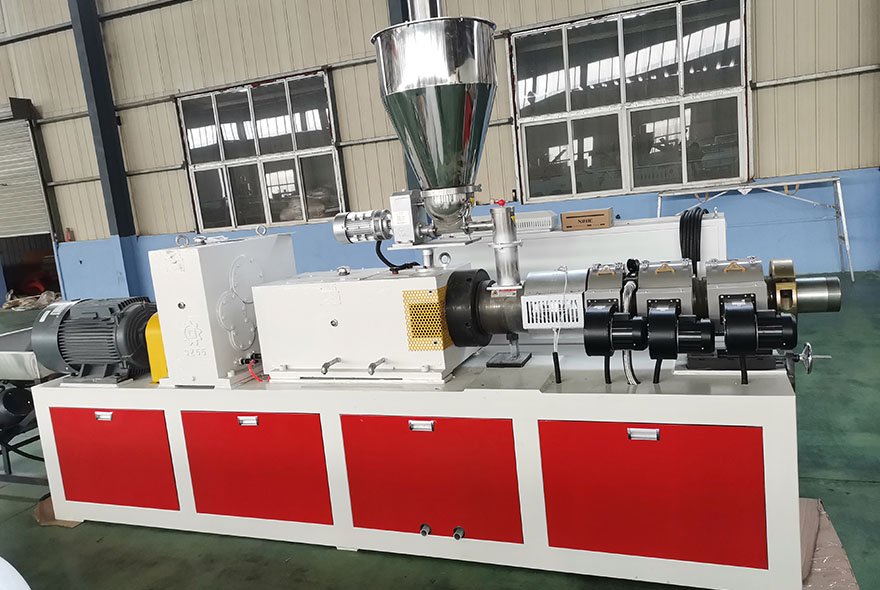

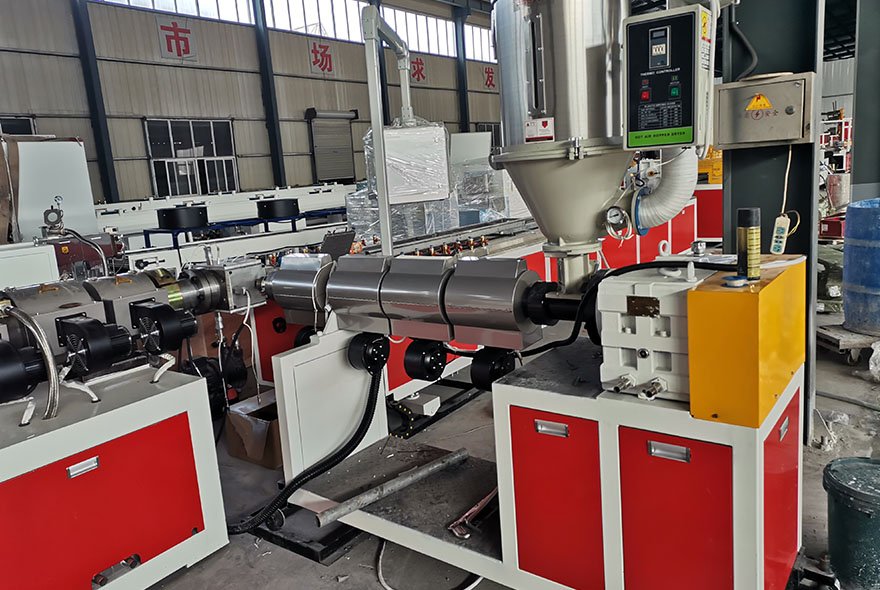

2.3 WPC Extruder
The extruder is the core machine of the PVC/PE/PP WPC profile extrusion line.
Different materials require different extrusion technologies.
PVC WPC Profile Production Line
Usually equipped with:
Conical twin screw extruder
Advantages:
l Excellent plasticizing performance
l Stable extrusion pressure
l Suitable for PVC heat-sensitive materials
l High filling capacity
PE/PP WPC Profile Production Line
Usually equipped with:
Parallel twin screw extruder or single screw extruder
Advantages:
l High mixing efficiency
l Suitable for high wood fiber content
l High production capacity
l Lower energy consumption
The extruder performs:
l Heating
l Melting
l Mixing
l Plasticizing
l Material conveying

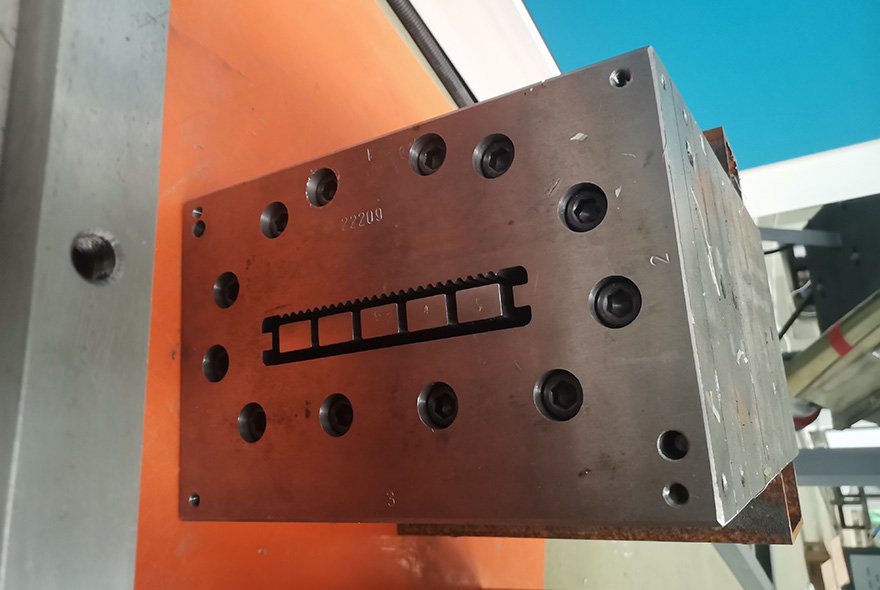

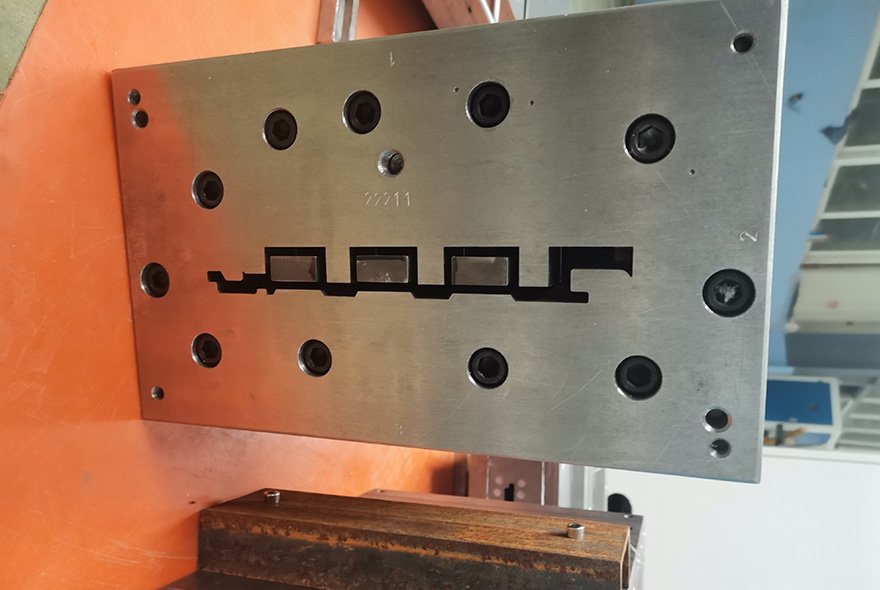

2.4 WPC Profile Extrusion Die
The extrusion die determines the final shape and size of the WPC profile.
Different molds are available for:
l WPC decking profiles
l WPC wall panels
l WPC fencing profiles
l WPC door frames
l Decorative profiles
l Outdoor landscape products
High-quality extrusion molds provide:
l Uniform material flow
l Smooth surface
l Accurate dimensions
l Stable production

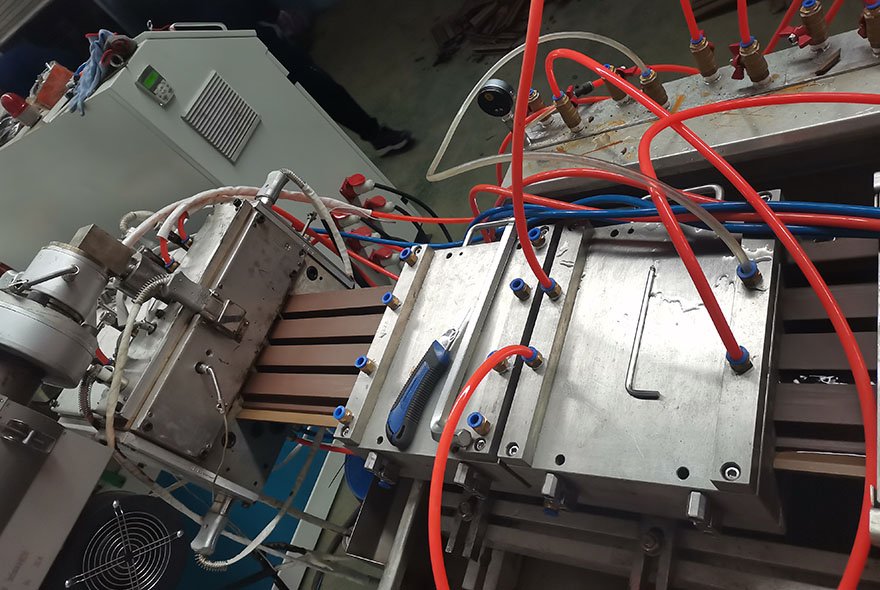

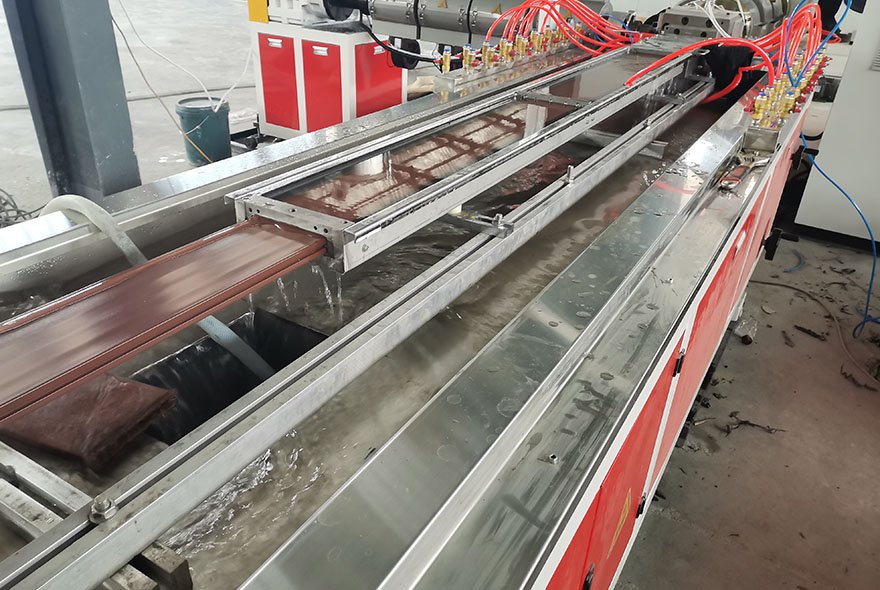

·2.5 Vacuum Calibration Table
The vacuum calibration table is used to shape and stabilize the hot extruded profile.
Main functions:
l Maintain profile dimensions
l Improve surface quality
l Reduce deformation
The system includes:
l Stainless steel tank
l Vacuum pump
l Water circulation system
l Adjustable calibration plates
2.6 Cooling System
After vacuum calibration, the WPC profile enters the cooling section.
Cooling methods include:
l Water spray cooling
l Circulating water cooling
l Cooling tanks
The cooling system helps achieve:
l Better dimensional accuracy
l Higher product strength
l Reduced internal stress

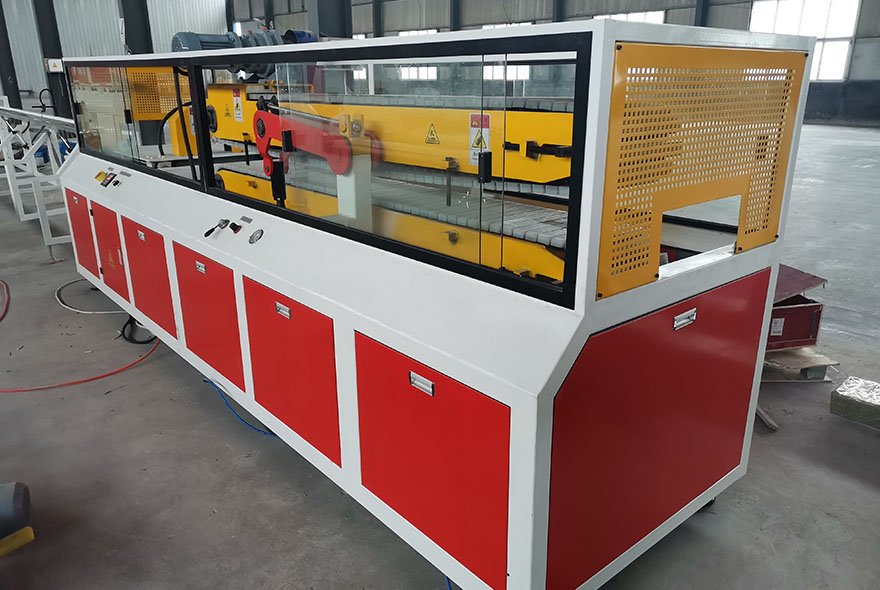

2.7 Haul-Off Machine
The haul-off machine continuously pulls the WPC profile through the production line.
Features:
l Variable speed control
l Stable pulling force
l Automatic adjustment
Functions:
l Maintain extrusion speed
l Prevent profile deformation
l Improve production efficiency
2.8 Automatic Cutting Machine
The cutting machine cuts finished profiles according to required lengths.
Features:
l Automatic length measurement
l Precision cutting
l Dust collection system
It is suitable for:
l WPC decking boards
l Wall panels
l Fence profiles
l Decorative profiles

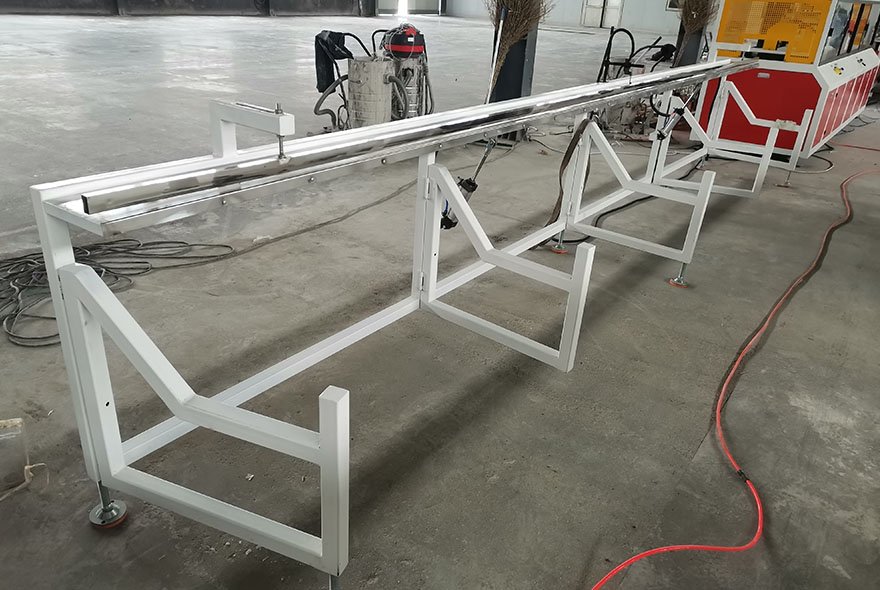

2.9 Automatic Stacking Machine
The stacking system automatically collects finished products.
Advantages:
l Reduces labor costs
l Improves packaging efficiency
l Keeps products organized
3. Auxiliary Machines Required for WPC Profile Production
To operate a complete PVC/PE/PP wood plastic composite production line, several auxiliary machines are required.
3.1 Wood Powder Processing Equipment
For preparing wood fiber materials:
l Wood crusher
l Wood powder grinder
l Screening machine
l Drying machine
Functions:
l Produce uniform wood powder
l Control moisture content
l Improve material quality
3.2 Plastic Recycling Equipment
For recycling production waste:
l Plastic crusher
l Pulverizer
l Recycling pelletizing machine
Benefits:
l Reduce material waste
l Lower production costs
l Improve environmental performance

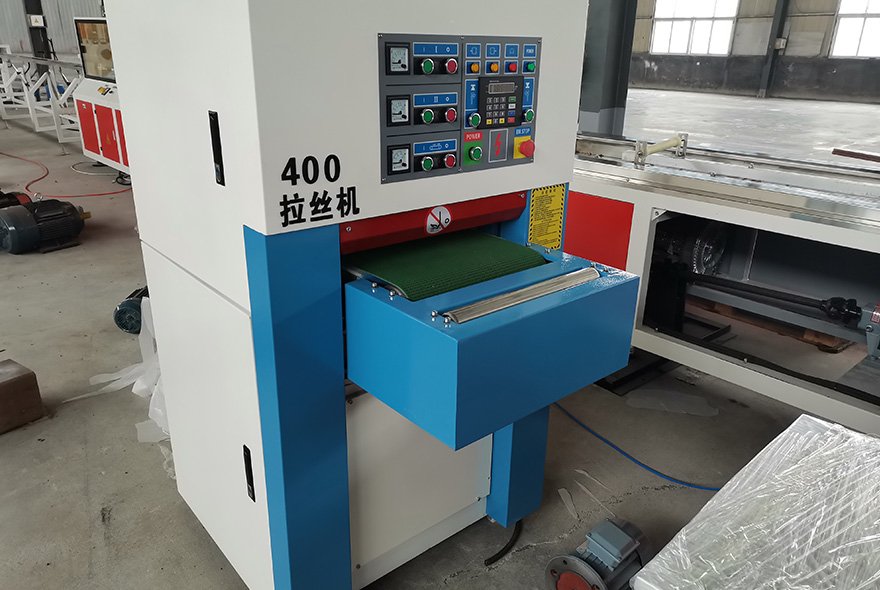

3.3 Surface Treatment Equipment
Depending on product requirements, additional machines can be installed.

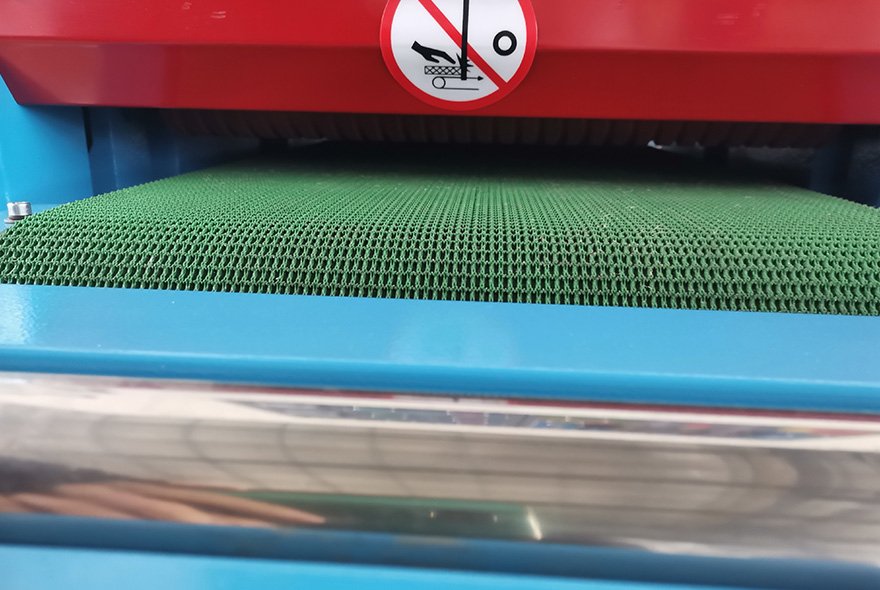

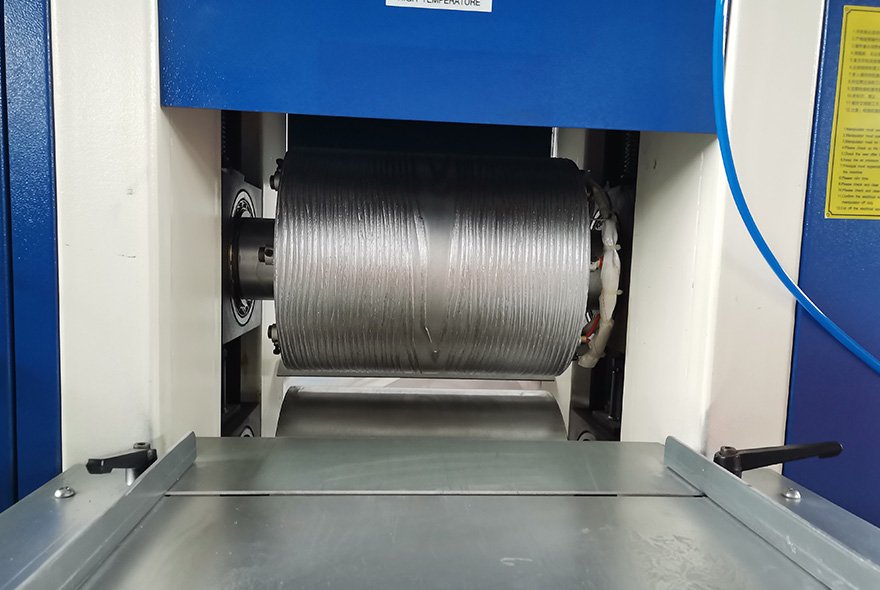

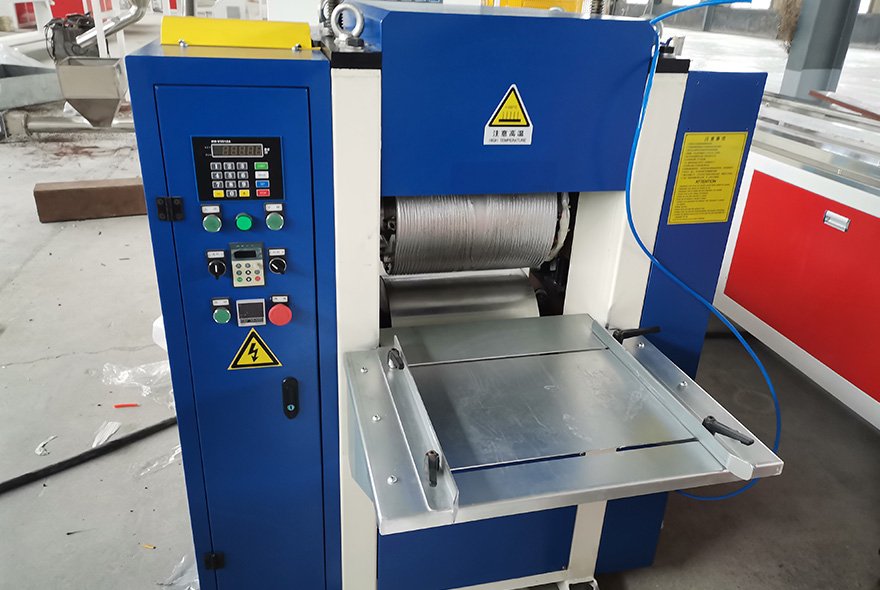

Embossing Machine
Creates natural wood grain patterns.
Hot Stamping Machine
Provides decorative wood effects.
Lamination Machine
Adds protective surface layers.
Online Co-extrusion System
Produces multi-layer WPC profiles with:
l Better UV resistance
l Higher durability
l Improved appearance
4. Production Process of PVC/PE/PP WPC Profile Production Line
The complete manufacturing process includes the following steps:
Step 1: Raw Material Preparation
Main materials:
l PVC resin
l PE resin
l PP resin
l Wood powder
l Additives
l Pigments
The raw materials are prepared according to the product formula.
Step 2: Material Mixing
All materials are mixed in the high-speed mixer.
Purpose:
l Uniform distribution
l Better plasticization
l Stable extrusion performance
Step 3: Extrusion and Plasticization
The mixed material enters the extruder.
Inside the extruder:
l Heating occurs
l Materials are melted
l Wood fibers are evenly dispersed
l The compound becomes homogeneous
Step 4: Profile Forming
The molten material passes through the extrusion die and forms the required WPC profile shape.
Step 5: Vacuum Calibration and Cooling
The hot profile enters the vacuum calibration table.
Processes:
l Vacuum shaping
l Cooling
l Dimension stabilization
Step 6: Pulling and Cutting
The haul-off machine transports the profile forward.
The cutting machine cuts products into specified lengths.
Step 7: Surface Treatment
Optional processes:
l Embossing
l Printing
l Laminating
l Brushing
These processes improve:
l Appearance
l Durability
l Market value
5. Applications of PVC/PE/PP WPC Profiles

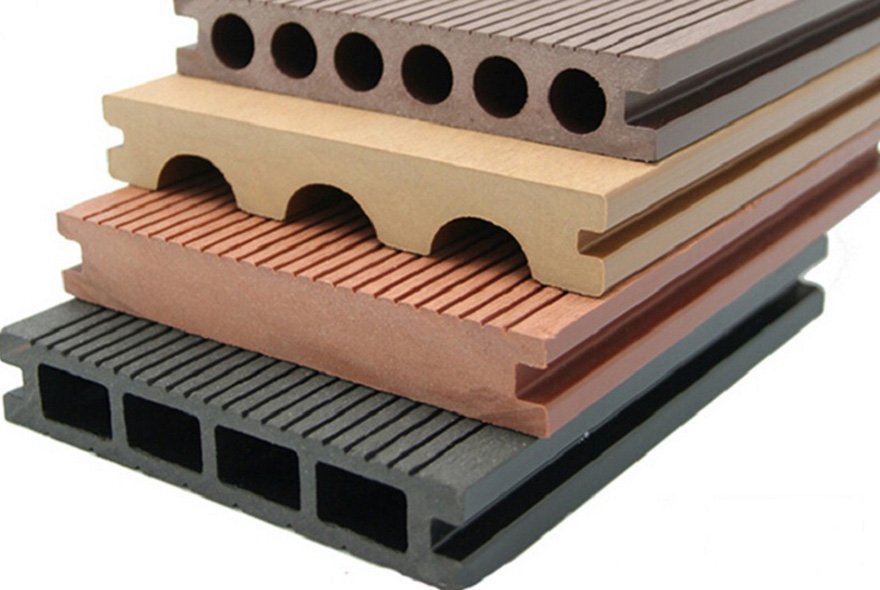

5.1 Outdoor Decking
PE and PP WPC profiles are widely used for:
l Garden decking
l Balcony flooring
l Terrace boards
l Landscape platforms
Advantages:
l Waterproof
l Anti-aging
l Weather resistant
5.2 Building Decoration
PVC WPC profiles are commonly used for:
l Wall panels
l Door frames
l Window profiles
l Decorative boards
Advantages:
l Easy installation
l Low maintenance
l Good appearance
5.3 Garden and Landscape Construction
Applications include:
l Fences
l Railings
l Flower boxes
l Outdoor furniture
l Pavilion structures
5.4 Commercial and Public Facilities
WPC materials are used in:
l Parks
l Resorts
l Public walkways
l Outdoor facilities
5.5 Furniture Industry
Applications:
l Cabinet panels
l Decorative boards
l Indoor furniture components
6. Advantages of PVC/PE/PP WPC Profile Production Line
A modern WPC extrusion line provides:
High Production Efficiency
Continuous extrusion production increases output.
Energy Saving Design
Advanced motors and control systems reduce power consumption.
Flexible Production
One production line can manufacture different WPC profiles by changing molds.
Environmental Benefits
WPC products use recycled plastics and natural fibers, reducing dependence on traditional wood resources.
Stable Product Quality
Automatic control systems ensure consistent dimensions and appearance.
7. Future Development Trends of WPC Profile Extrusion Technology
The global demand for sustainable materials continues to grow. Future PVC/PE/PP WPC profile production lines will focus on:
l Intelligent automation
l Energy-saving technology
l Higher wood fiber filling ratios
l Multi-layer co-extrusion technology
l Smart factory integration
l Recycling technology
![_0056_IMG_20221129_133957[1]](//vhost-ln-s07-cdn.hcwebsite.com/a86f4603ca735355359cea0c1c608e41/data/thumb/res/en/20260813/0e0042a2fdb608f7.jpg_20260813095252_1920x0.jpeg?v=2OTgPArI "_0056_IMG_20221129_133957[1]")
Conclusion
A PVC/PE/PP wood plastic composite profile production line is an advanced extrusion solution for manufacturing environmentally friendly and durable WPC products.
A complete system includes:
l Automatic feeding system
l Mixing system
l Twin screw extruder
l Extrusion die
l Vacuum calibration table
l Cooling system
l Haul-off machine
l Cutting machine
l Stacking system
l Surface treatment equipment
With proper auxiliary machines and optimized production technology, the WPC profile extrusion line can produce high-quality decking, fencing, wall panels, decorative profiles, and outdoor construction materials.
As a professional PVC/PE/PP WPC profile production line manufacturer, we provide customized extrusion solutions according to different materials, product designs, production capacities, and market requirements.
Модель | Потребляемая мощность (кВт) | Производительность (кг/час) | Габариты (мм) | Вес (кг.) |
SJSZ-51/105 | 30-45 | 50-150 | 16000*1450*2200 | 6000 |
SJSZ-65/132 | 65-80 | 80-250 | 18000*2500*3000 | 8500 |
SJSZ-80/156 | 115-155 | 120-360 | 215000*2500*3500 | 10000 |
SJSZ-92/188 | 185-245 | 250-650 | 23000*3000*3800 | 14500 |
