PVC/PE/PP Profile Production Line: Complete Guide to Equipment, Production Process and Applications
Introduction of PVC/PE/PP Profile Production Line
With the rapid development of the construction, decoration, furniture, automotive, and industrial sectors, the demand for high-performance plastic profiles continues to grow. A PVC/PE/PP profile production line is an advanced extrusion system designed for manufacturing various plastic profiles with excellent mechanical properties, weather resistance, corrosion resistance, and long service life.
As a professional PVC profile extrusion line manufacturer, we provide complete extrusion solutions for producing different types of profiles, including PVC profiles, PE profiles, PP profiles, WPC profiles, decorative profiles, construction profiles, and industrial plastic profiles.
The PVC/PE/PP profile extrusion line uses extrusion technology to process PVC, polyethylene (PE), and polypropylene (PP) raw materials into continuous profiles through processes including material feeding, extrusion, molding, cooling, hauling, cutting, and stacking.
According to different materials and applications, the production line can be customized with different extruders, molds, auxiliary equipment, and automation systems.
1. What Is a PVC/PE/PP Profile Production Line?

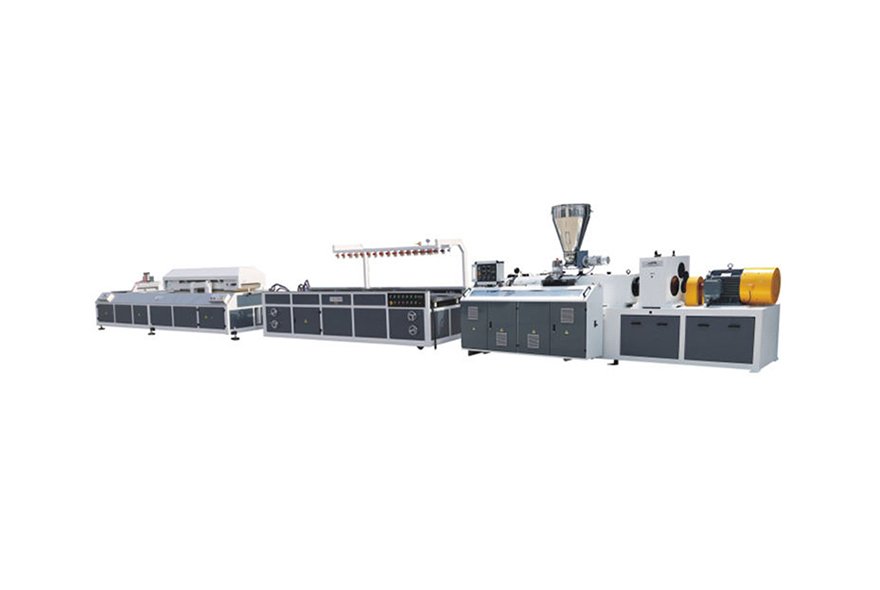

A PVC/PE/PP profile production line is a complete plastic extrusion manufacturing system used to produce rigid or flexible plastic profiles with different shapes and sizes.
The production line mainly processes:
l PVC resin
l PE resin
l PP resin
l Calcium carbonate filler
l Stabilizers
l Lubricants
l Color masterbatch
l Processing additives
Through precise extrusion technology, the raw materials are melted, mixed, shaped, cooled, and cut into finished profiles.

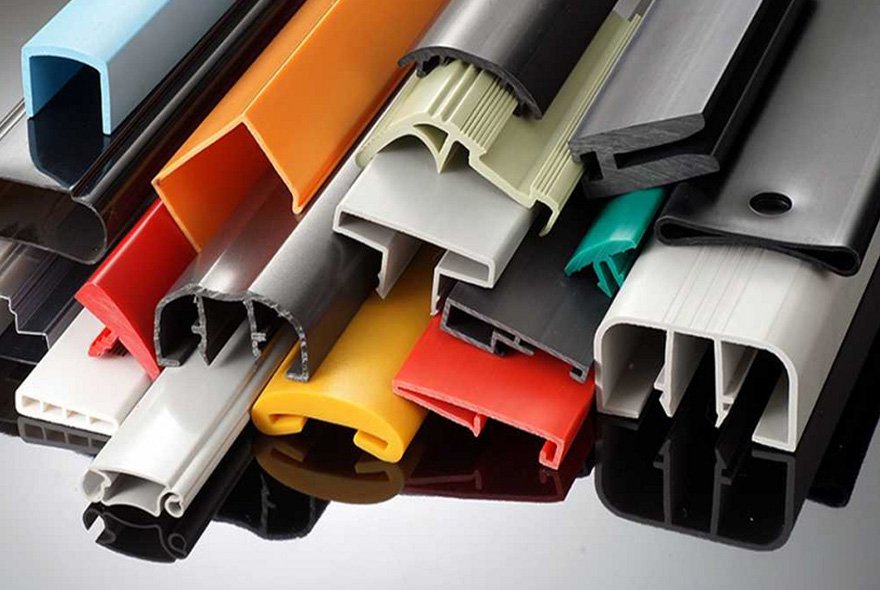

A complete plastic profile extrusion line can manufacture:
l PVC window and door profiles
l PVC decorative profiles
l PE construction profiles
l PP industrial profiles
l Cable duct profiles
l Edge sealing profiles
l Automotive plastic profiles
l Furniture profiles
l WPC profiles
2. Main Components of PVC/PE/PP Profile Production Line

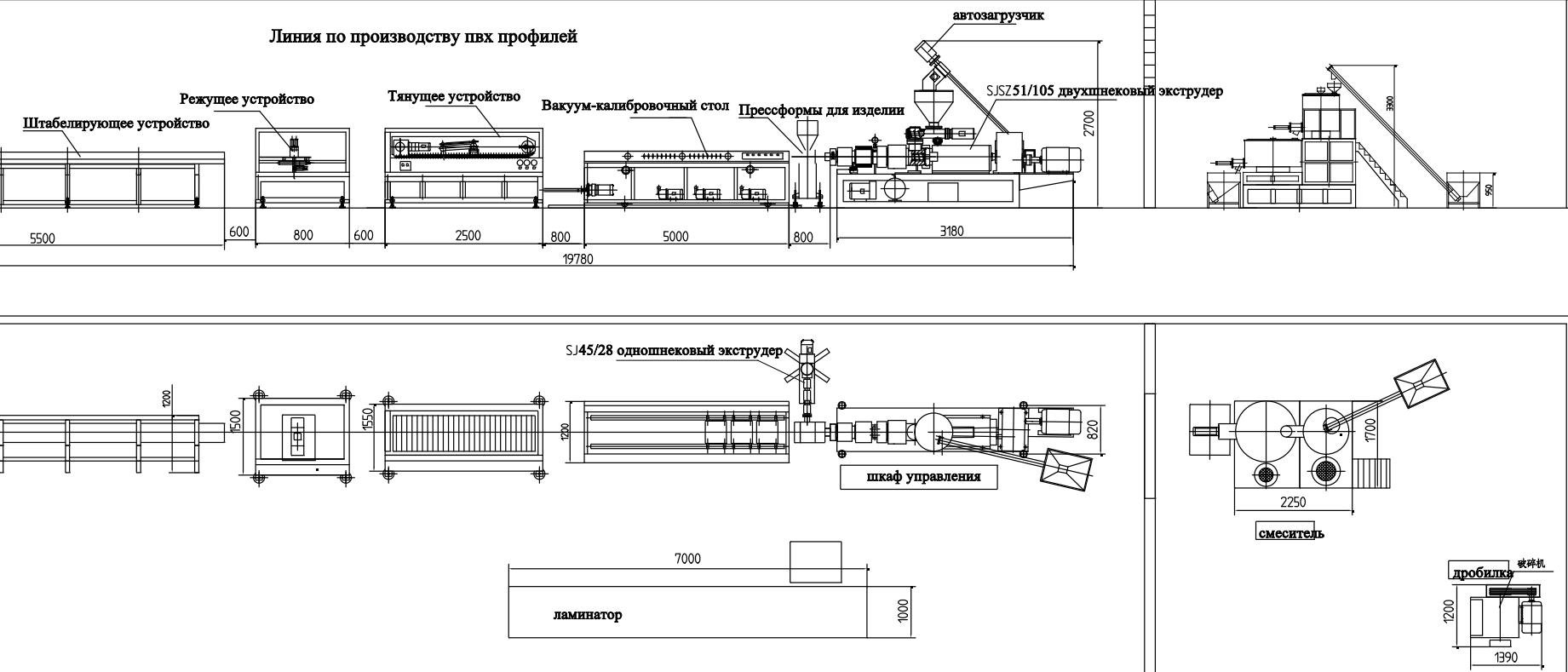

A complete PVC/PE/PP plastic profile extrusion line consists of several main systems:
l Raw material feeding system
l Mixing system
l Extrusion system
l Profile extrusion die
l Vacuum calibration table
l Cooling system
l Haul-off machine
l Cutting machine
l Stacking system
Each unit plays an important role in ensuring stable production and high-quality profiles.
2.1 Automatic Feeding System
The automatic feeding system is the first part of the profile extrusion production line.
Its main functions include:
l Automatic transportation of raw materials
l Accurate material feeding
l Reduction of labor costs
l Continuous production operation
Main equipment:
l Vacuum loader
l Screw conveyor
l Spring loader
l Automatic dosing system
The feeding system supplies:
l PVC powder
l PE granules
l PP granules
l Additives
l Color masterbatch
to the mixing or extrusion process.
2.2 Mixing System
The mixing system ensures that all raw materials are evenly distributed before extrusion.
For PVC profile production, a hot and cold mixing system is usually required.
Main equipment:
High Speed Mixer
Functions:
l Uniform mixing
l Moisture removal
l Additive dispersion
Cooling Mixer
Functions:
l Material cooling
l Temperature stabilization
l Prevention of material degradation
The mixing process directly affects:
l Profile surface quality
l Mechanical strength
l Extrusion stability
2.3 Extruder System
The extruder is the core equipment of the PVC/PE/PP profile extrusion line.
Different materials require different extrusion solutions.
PVC Profile Production Line
PVC profiles usually use:
Conical Twin Screw Extruder
Advantages:
l Excellent plasticizing performance
l Suitable for PVC heat-sensitive materials
l Stable output
l Low energy consumption
Applications:
l PVC window profiles
l Door frames
l Decorative profiles
l Building profiles
PE Profile Production Line
PE profiles usually use:
Single Screw Extruder or Twin Screw Extruder
Advantages:
l Good melting performance
l High production efficiency
l Strong impact resistance
Applications:
l Industrial profiles
l Protective profiles
l Outdoor products
PP Profile Production Line
PP profile production generally uses:
Single Screw Extruder or Parallel Twin Screw Extruder
Advantages:
l High temperature resistance
l Good mechanical strength
l Excellent chemical resistance
Applications:
l Industrial components
l Automotive profiles
l Technical plastic products
2.4 Profile Extrusion Die
The extrusion die determines the final shape and size of the profile.
Different molds can produce:
l PVC window profiles
l Door profiles
l Decorative strips
l Cable channels
l Industrial profiles
l Special-shaped profiles
A high-quality extrusion die provides:
l Uniform material flow
l Smooth profile surface
l Accurate dimensions
l Stable production

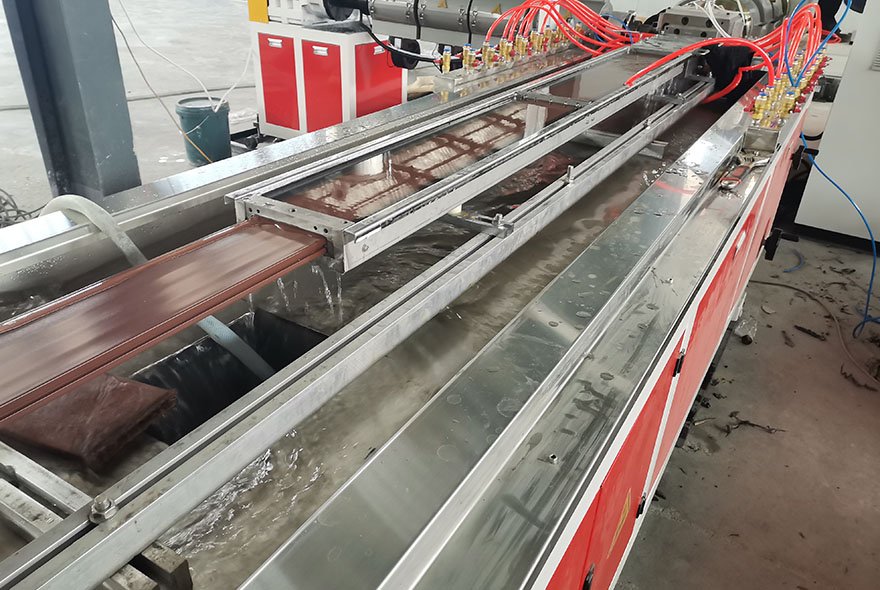

2.5 Vacuum Calibration Table
The vacuum calibration table is used to shape the hot profile after extrusion.
Main functions:
l Maintain profile dimensions
l Improve surface finish
l Prevent deformation
The system includes:
l Stainless steel tank
l Vacuum pump
l Water circulation system
l Calibration plates
It is an essential part of a high-quality plastic profile extrusion line.
2.6 Cooling System
After calibration, profiles enter the cooling section.
Cooling methods include:
l Water cooling
l Spray cooling
l Circulating cooling
The cooling system ensures:
l Stable size
l High strength
l Low internal stress
2.7 Haul-Off Machine
The haul-off machine pulls the profile continuously from the extrusion line.
Features:
l Variable frequency speed control
l Stable traction force
l Easy operation
Functions:
l Maintain production speed
l Prevent profile bending
l Improve production efficiency
2.8 Automatic Cutting Machine
The cutting machine cuts profiles into required lengths.
Features:
l Automatic length measurement
l Precision cutting
l Dust collection
Cutting methods:
l Saw cutting
l Flying knife cutting
l Automatic cutting system
2.9 Automatic Stacking Machine
The stacking machine automatically collects finished profiles.
Advantages:
l Reduces manual handling
l Improves packaging efficiency
l Keeps products organized
3. Auxiliary Equipment for PVC/PE/PP Profile Production Line
A complete plastic profile extrusion line requires several auxiliary machines to achieve stable production.
3.1 Crusher and Recycling System
Production waste can be recycled through:
Equipment:
l Plastic crusher
l Pulverizer
l Recycling system
Advantages:
l Reduce raw material waste
l Lower production cost
l Improve environmental performance
3.2 Material Drying System
For materials requiring moisture control:
Equipment:
l Hopper dryer
l Dehumidifying dryer
l Hot air dryer
Functions:
l Remove moisture
l Improve extrusion quality
l Prevent surface defects
3.3 Online Printing Machine
Used for decorative profiles.
Functions:
l Logo printing
l Pattern printing
l Surface decoration
3.4 Embossing Machine
Used for creating special surface textures.
Applications:
l Wood grain profiles
l Decorative panels
l Flooring profiles
3.5 Co-extrusion System
A co-extrusion system can add a protective layer to profiles.
Advantages:
l Better UV resistance
l Improved appearance
l Longer service life
Applications:
l Outdoor profiles
l High-end decorative profiles
4. Production Process of PVC/PE/PP Profile Production Line
The complete manufacturing process includes the following steps:
Step 1: Raw Material Preparation
Raw materials are prepared according to product requirements:
l PVC resin
l PE pellets
l PP pellets
l Stabilizers
l Lubricants
l Pigments
Step 2: Mixing
Materials are mixed evenly through a high-speed mixer.
Purpose:
l Improve material uniformity
l Enhance plasticization
l Ensure stable extrusion
Step 3: Extrusion and Plasticization
The mixed material enters the extruder.
Inside the extruder:
l Heating
l Melting
l Mixing
l Plasticizing
l Pressurizing
l are completed.
Step 4: Profile Forming
The molten plastic passes through the extrusion die and forms the required profile shape.
Step 5: Vacuum Calibration and Cooling
The hot profile enters the vacuum calibration table.
Processes:
l Vacuum shaping
l Cooling
l Size stabilization
Step 6: Hauling and Cutting
The haul-off machine pulls the profile forward.
The cutting machine cuts the profile according to customer requirements.
Step 7: Surface Treatment and Packaging
Optional processes:
l Embossing
l Printing
l Laminating
l Coating
After inspection, finished profiles are packed and shipped.
5. Applications of PVC/PE/PP Profiles
5.1 Construction Industry
PVC profiles are widely used for:
l Window frames
l Door profiles
l Building decoration materials
l Wall panels
Advantages:
l Weather resistance
l Low maintenance
l Good insulation performance
5.2 Furniture Industry
Applications:
l Furniture edge profiles
l Decorative strips
l Cabinet components
5.3 Automotive Industry
PP and PE profiles are used for:
l Interior parts
l Protective strips
l Sealing profiles
Advantages:
l Lightweight
l Chemical resistance
l High durability
5.4 Electrical Industry
Applications:
l Cable ducts
l Wire protection profiles
l Electrical channels
5.5 Industrial Applications
Plastic profiles are used in:
l Machinery protection
l Conveyor systems
l Equipment sealing
l Industrial decoration
6. Advantages of PVC/PE/PP Profile Production Line
A modern plastic profile extrusion machine provides:
High Efficiency
Continuous production improves output capacity.
Stable Quality
Automatic control ensures consistent dimensions.
Flexible Production
Different profiles can be produced by changing molds.
Energy Saving
Modern extrusion technology reduces power consumption.
Wide Applications
Suitable for construction, industry, furniture, and automotive sectors.
7. Future Development Trends of Plastic Profile Extrusion Technology
The future development of PVC/PE/PP profile extrusion lines focuses on:
l Intelligent automation
l Energy-saving extrusion technology
l High-speed production
l Multi-layer co-extrusion
l Digital factory management
l Recycling technology
Conclusion
A PVC/PE/PP profile production line is a complete extrusion solution for manufacturing high-quality plastic profiles. The production line integrates feeding, mixing, extrusion, molding, cooling, hauling, cutting, and stacking systems.
With suitable auxiliary equipment, manufacturers can produce a wide range of products including PVC window profiles, PE industrial profiles, PP technical profiles, decorative profiles, and customized plastic profiles.
As an experienced PVC/PE/PP profile extrusion line manufacturer, we provide customized extrusion solutions with different production capacities, profile designs, and automation levels to meet global market requirements.
