What Are the Advantages of a Two-Stage Water Ring Pelletizing Line?

Why Is a Two-Stage Water Ring Pelletizing Line a Good Choice for Plastic Recycling?

As the demand for recycled plastic materials continues to grow, more manufacturers are looking for reliable equipment to process plastic waste into reusable pellets. A Two-Stage Water Ring Pelletizing Line is designed to melt, process, filter, and pelletize thermoplastic materials through a continuous production process.

Compared with a single-stage configuration, a two-stage system provides an additional processing stage for treating the plastic melt. This design can be particularly useful when processing recycled materials with varying properties. Depending on the raw material and equipment configuration, the line can help improve melt uniformity, support effective degassing, and produce plastic pellets suitable for further manufacturing.

For plastic recycling companies, choosing the right plastic pelletizing machine is an important step toward improving production stability and making better use of recycled raw materials.

How Does a Two-Stage Water Ring Pelletizing Line Work?

The production process generally begins with feeding plastic materials into the first extruder. Heat and mechanical shearing gradually melt the material and form a continuous polymer melt.

The melt then passes through a filtration system, depending on the selected configuration, before entering the second extrusion stage. This stage provides additional melt processing and helps prepare the material for pelletizing.

At the end of the process, the molten plastic passes through a die head. Rotating cutting blades cut the extruded material into small pellets, while circulating water around the cutting area helps cool the pellets and remove heat.

The finished pellets are then separated from the water and collected for storage or further use.

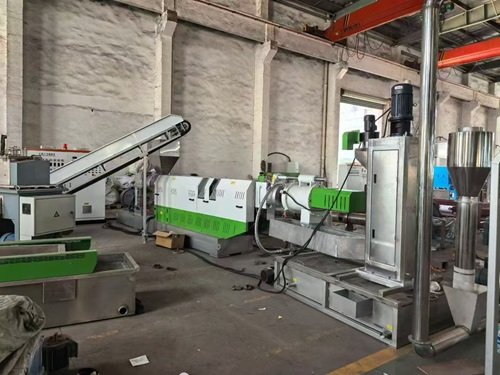

A typical two-stage plastic pelletizing line may include a feeding system, two extruders, a melt filtration unit, a water ring pelletizer, a water circulation system, and a pellet collection unit. Additional equipment can be selected according to the material characteristics and production requirements.

What Are the Main Advantages of Two-Stage Pelletizing?

One of the main advantages is the ability to divide the melting and melt-processing work between two stages. This provides greater flexibility when handling certain types of recycled plastic.

Other important advantages include:

• Improved melt processing: The second stage provides additional opportunities to homogenize the polymer melt.

• Flexible material handling: The system can be configured for different thermoplastic materials and recycling applications.

• Continuous pellet production: An appropriately designed feeding, extrusion, and cutting system supports continuous operation.

• Compact cutting arrangement: Water ring pelletizing integrates cutting and cooling around the die face.

• Optional degassing and filtration: Depending on the material, additional systems can help remove volatile substances and solid contaminants.

• Adaptable production capacity: Screw design, motor power, filtration equipment, and cutting systems can be selected according to the customer's needs.

Actual performance depends on the plastic material, contamination level, moisture content, machine configuration, and operating conditions.

Why Choose Water Ring Pelletizing Technology?

Water ring pelletizing is widely used in plastic recycling and compounding applications. In this process, molten plastic exits the die holes and is cut by rotating blades positioned near the die face. Circulating water helps cool the freshly cut pellets and carries them away from the cutting area.

Compared with systems that require long strands to be cooled and cut separately, water ring pelletizing offers a compact cutting arrangement. It can also support continuous production when the die temperature, blade speed, melt pressure, and water flow are properly controlled.

The water ring pelletizer is suitable for various thermoplastics, provided that the machine design and process parameters match the characteristics of the polymer.

Consistent pellet quality requires more than the cutting system alone. Stable extrusion, suitable filtration, properly maintained blades, and correct temperature settings all play important roles.

Which Plastic Materials Can Be Processed?

A Two-Stage Water Ring Pelletizing Line can be configured to process different thermoplastic materials, including:

• Polyethylene (PE)

• Polypropylene (PP)

• Compatible recycled plastic film

• Plastic production scrap and offcuts

• Selected post-industrial plastic waste

The most suitable configuration depends on the type and condition of the raw material. For example, lightweight plastic film may require a suitable feeding or compacting system, while contaminated material may need more effective filtration or pretreatment.

Materials with excessive moisture may require drying or an appropriate degassing solution. PVC and other heat-sensitive polymers require particular attention to temperature control and residence time, so compatibility should be confirmed before selecting the equipment.

Before purchasing a plastic recycling pelletizing machine, manufacturers should evaluate the material composition, bulk density, moisture content, contamination level, and target output.

How Does the Two-Stage System Help Improve Recycled Pellet Quality?

Recycled plastic can vary considerably in composition and processing behavior. Some materials contain residual moisture, trapped air, printing ink, or small solid contaminants. These factors can affect extrusion stability and the quality of the finished pellets.

The two-stage design provides additional opportunities for melt processing and, when included, degassing and filtration. These features can help improve process consistency when the equipment is properly matched to the raw material.

However, a two-stage extruder does not automatically remove every contaminant or guarantee a specific pellet quality. The result depends on the effectiveness of the filtration system, the condition of the incoming material, the polymer's thermal stability, and the operating parameters.

For manufacturers producing recycled pellets for injection molding, extrusion, or other applications, the complete production process should be selected according to the quality requirements of the final product.

Can the Pelletizing Line Be Customized?

Yes. Different recycling businesses have different production targets, raw materials, and factory layouts. A plastic pelletizing line can therefore be configured according to the customer's actual requirements.

Customization options may include screw diameter and design, motor power, feeding equipment, melt filtration, vacuum degassing, water circulation, pellet drying, and automatic control systems.

The required output should also be considered carefully. Actual production capacity depends on the polymer type, bulk density, contamination, moisture, screen condition, and processing temperature. For this reason, equipment selection should be based on the intended material and operating conditions rather than nominal capacity alone.

A suitable configuration can help manufacturers balance production efficiency, pellet quality, energy consumption, and maintenance requirements.

What Should You Consider Before Buying a Two-Stage Water Ring Pelletizing Machine?

Before choosing a two-stage plastic pelletizing machine, it is important to clarify several practical points.

First, identify the main raw material and whether it comes from post-industrial scrap, used plastic film, or another recycling source. Second, determine whether the material requires washing, drying, compacting, or additional filtration before extrusion.

Next, compare the required output with the machine's recommended processing range. It is also useful to evaluate the availability of spare parts, ease of blade replacement, operator safety, and access to technical support.

A properly selected production line should match the factory's real operating conditions and leave sufficient flexibility for future production needs.

Why Is a Two-Stage Water Ring Pelletizing Line Worth Considering?

For plastic recycling companies, a Two-Stage Water Ring Pelletizing Line offers a practical way to process compatible thermoplastic waste into reusable plastic pellets. Its two-stage extrusion arrangement, combined with water ring cutting, provides flexibility for different recycling applications.

With suitable feeding, filtration, degassing, and cooling systems, the line can be adapted to the requirements of various materials and production targets.

Choosing the right plastic pelletizing machine requires careful consideration of raw material properties, production capacity, pellet specifications, and maintenance needs. When these factors are properly evaluated, a well-configured pelletizing line can support stable operation and more efficient use of recycled plastic resources.
