As the global plastics industry continues to focus on recycling, material recovery, and efficient polymer processing, advanced pelletizing technology is becoming increasingly important. A two-stage pelletizing line provides an efficient solution for processing recycled plastics, production scrap, and various polymer compounds into uniform, reusable pellets.
Compared with conventional single-stage systems, a two-stage plastic pelletizing line combines two extrusion stages to improve material melting, mixing, filtration, and homogenization. This configuration is particularly useful when processing materials with different levels of contamination, moisture, or varying melt characteristics.
The latest generation of two-stage pelletizing machines is designed to provide stable production, improved pellet quality, and flexible processing capabilities for plastic recycling and compounding applications.
A two-stage pelletizing line is a plastic recycling and granulation system that uses two interconnected extrusion stages to process polymer materials.
In the first stage, the material is melted, compacted, and initially plasticized. Depending on the system configuration, contaminants and volatile components can also be reduced during this stage.
The partially processed melt then enters the second extrusion stage. The second pelletizing extruder further homogenizes the material and provides stable melt pressure before the polymer reaches the filtration and pelletizing system.
This two-stage structure allows manufacturers to achieve better control of the material processing process and is particularly suitable for applications where consistent melt quality is important.
A complete two-stage plastic pelletizing line normally consists of several interconnected units.
The feeding system provides a stable supply of raw materials to the first extruder. Depending on the material, the feeding system may include a conveyor, hopper, force feeder, or other auxiliary equipment.

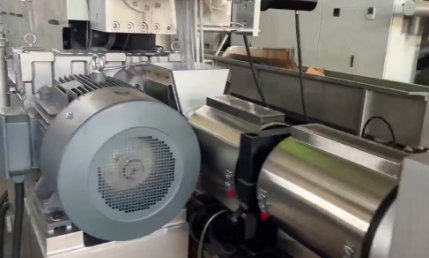

The first recycling extruder performs initial melting, plasticization, and mixing of the material. The design of the screw and barrel can be optimized according to the characteristics of the processed polymer.
The second pelletizing extruder receives the melt from the first stage and further improves homogenization and pressure stability.
A melt filtration system removes solid contaminants before the material reaches the pelletizing unit. Depending on the application, manufacturers can select manual, hydraulic, or automatic screen changers.

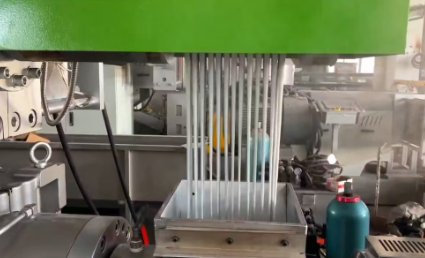

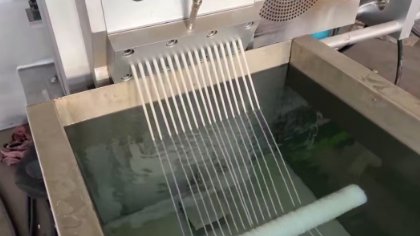

The final pelletizing system cuts the molten polymer into uniform pellets. Cooling and pellet drying equipment can then prepare the finished material for packaging or further processing.
One of the most important advantages of a two-stage pelletizing line is improved material processing capability.
The two extrusion stages divide the processing tasks, allowing the first stage to focus on melting and plasticization while the second stage provides additional homogenization and pressure stabilization.
This configuration can be particularly beneficial when processing recycled materials containing varying levels of contamination or different material characteristics.
Another advantage is improved pellet consistency. Stable melt pressure and controlled extrusion conditions can contribute to more uniform pellet size and shape.
A properly designed plastic pelletizing machine can also reduce material waste and improve the overall utilization of recycled plastics.
Two-stage pelletizing lines are widely used in plastic recycling and material processing applications.
Typical materials include:
l Recycled PE;
l Recycled PP;
l Recycled HDPE;
l Recycled LDPE;
l Plastic film waste;
l Production scrap;
l Industrial plastic waste;
l Plastic compounds;
l Selected engineering plastics.
The exact equipment configuration should be selected according to the material type, contamination level, moisture content, required output, and final pellet specifications.
Energy efficiency is an important consideration for modern plastic recycling companies.
Advanced two-stage pelletizing machines can incorporate energy-efficient motors, optimized heating systems, improved insulation, and precise temperature control.
The two-stage structure can also help distribute the mechanical and thermal processing load more effectively. This may contribute to stable processing conditions and consistent output.
Automatic control systems can monitor key parameters such as barrel temperature, melt pressure, screw speed, feeding rate, and pelletizing speed. This allows operators to adjust the process quickly when production conditions change.
Melt filtration plays an important role in the production of high-quality recycled pellets.
During plastic recycling, raw materials may contain paper, aluminum particles, dust, wood fibers, or other solid contaminants. A suitable filtration system installed between the extrusion stages or before pelletizing can remove a significant portion of these unwanted materials.
A plastic recycling extruder combined with an appropriate screen changer can therefore improve melt cleanliness and help protect downstream components.
Stable filtration also helps reduce the risk of pellet defects caused by contaminants and contributes to more consistent recycled material quality.
Automation is becoming increasingly important in modern two-stage plastic pelletizing lines.
PLC control systems can monitor temperature, pressure, feeding speed, screw speed, and other important operating parameters.
More advanced systems can also provide alarm functions, production data recording, automatic pressure adjustment, and equipment status monitoring.
The integration of automation can reduce operator workload, improve production consistency, and help manufacturers identify potential problems at an early stage.
As regulations and market demand continue to encourage plastic recycling, the demand for efficient recycling and pelletizing equipment is expected to increase.
A two-stage pelletizing line can provide manufacturers with greater flexibility when processing different types of plastic waste and recycled materials.
For companies that need to upgrade existing recycling operations, a modern plastic pelletizing line can help improve production capacity, pellet quality, and overall process stability.
The technology also provides opportunities for manufacturers to develop recycled polymer materials for injection molding, extrusion, blow molding, and other downstream applications.
The development of the two-stage pelletizing line represents an important advancement in plastic recycling and polymer processing technology.
By combining two extrusion stages, efficient melt filtration, precise temperature control, and automated pelletizing systems, manufacturers can achieve stable processing and consistent recycled pellet quality.
The use of advanced pelletizing extruders, automatic screen changers, and intelligent control systems further improves production efficiency and operational reliability.
As the global plastics industry continues to move toward more efficient resource utilization and circular manufacturing, two-stage plastic pelletizing lines are expected to play an increasingly important role in recycling, compounding, and sustainable polymer production.
