With the rapid development of the global plastics industry, increasing attention is being paid to improving production efficiency and automation. One of the most promising developments is the application of modern extrusion systems, among which the PVC double pipe production line plays an increasingly important role. This technology enables two PVC pipes to be produced simultaneously, significantly increasing production capacity, reducing production costs, and optimizing raw material utilization.
Modern manufacturers are increasingly choosing PVC double pipe extrusion lines because they combine compact equipment design, energy efficiency, high production capacity, and a high level of automation. This article examines the technical characteristics, production advantages, applications, and future development prospects of modern PVC double pipe extrusion technology.
Overview of PVC Double Pipe Extrusion Technology
A PVC double pipe production line is a complete extrusion system designed to simultaneously form two parallel streams of molten PVC material and subsequently cool, calibrate, haul, and cut the finished pipes.
The key component of the system is a high-performance PVC pipe extruder, which provides stable material feeding, melting, plasticization, and homogenization. The molten PVC then enters a distribution die, where the material flow is divided into two independent channels. This allows two pipes with consistent quality and dimensional accuracy to be produced simultaneously.
Modern PVC double pipe extrusion lines are also equipped with intelligent control systems that monitor and regulate temperature, pressure, extrusion speed, hauling speed, and other critical production parameters.
To understand the efficiency of this technology, it is important to examine the main components of the production system:
1. PVC pipe extruder – The main processing unit responsible for melting, plasticizing, and homogenizing the raw material.

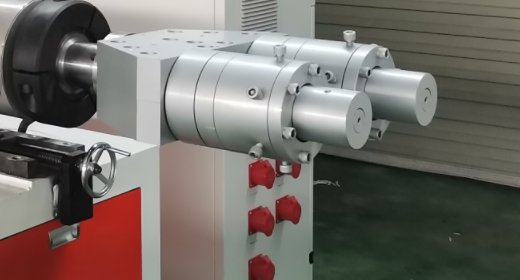

2. Two-channel extrusion die – Divides the molten material flow and forms two PVC pipes simultaneously.

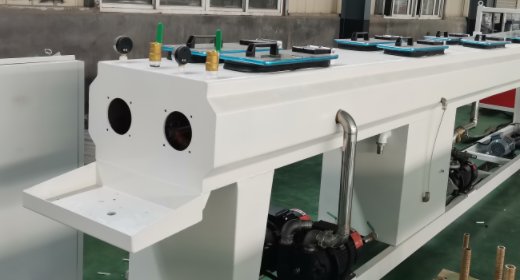

3. Vacuum calibration tank – Precisely controls the diameter and shape of the extruded pipes.
4. Cooling system – Gradually reduces the temperature of the pipes and stabilizes their dimensions.

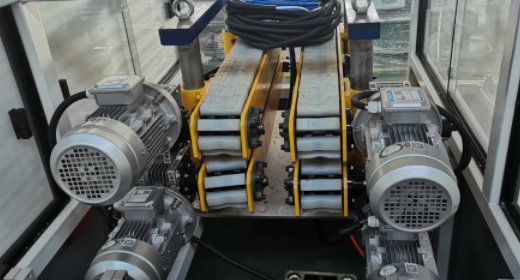

5. Haul-off unit – Provides stable and synchronized pipe pulling throughout the production process.
6. Cutting unit – Cuts the finished pipes to the required length with high accuracy.
7. Automatic control system – Monitors and controls the entire PVC double pipe production line.
The coordinated operation of these components is essential for maintaining stable production and consistent finished-product quality.
The production process begins with feeding PVC material into the hopper. The material then enters the PVC pipe extruder, where it is melted and plasticized through controlled heating and mechanical shear.
The molten PVC is subsequently delivered to the distribution die, which divides the material into two uniform flow channels. The two material streams then enter the calibration sections, where vacuum pressure helps form the pipes to the required diameter and geometry.
After calibration, the pipes pass through the cooling system. They are then transported by the haul-off unit, which controls the pipe pulling speed and helps maintain consistent dimensions.
Finally, the pipes enter the cutting unit, where they are cut into predetermined lengths.
Through the synchronized operation of all components of the PVC double pipe extrusion line, the production process can achieve continuous operation, stable output, and consistent product quality.
Using a PVC double pipe production line provides manufacturers with several important advantages:
l Increased production capacity compared with conventional single-pipe extrusion lines;
l Lower energy consumption per unit of finished product;
l More efficient use of production space;
l Stable and consistent product quality;
l Flexible adjustment of production parameters;
l Reduced equipment maintenance costs;
l Improved utilization of extrusion equipment.
One of the most important advantages is that a PVC double pipe extrusion line can produce two pipes simultaneously with consistent technical characteristics. This is particularly valuable for applications in construction, water supply, drainage, and engineering infrastructure.
Pipes manufactured on a PVC double pipe production line can be widely used in different fields, including:
l Water supply and drainage systems;
l Sewer and wastewater systems;
l Drainage applications;
l Cable protection systems;
l Agricultural irrigation;
l Industrial construction;
l Building infrastructure.
PVC offers good resistance to corrosion, many chemicals, moisture, and mechanical stresses. As a result, properly manufactured PVC pipes can provide reliable long-term performance in a wide range of applications.
Modern manufacturers are continuously introducing new technologies into the PVC double pipe extrusion line, including:
l Digital control systems;
l Automatic diameter calibration;
l Intelligent temperature control;
l Equipment self-diagnostic systems;
l Energy-efficient motors and drives;
l Advanced production monitoring systems.
Particular attention is being given to the integration of IoT technologies. These systems can allow manufacturers to remotely monitor operating conditions, production data, equipment status, and maintenance requirements across the entire PVC double pipe production line.
Pipe quality is a key factor in the competitiveness of manufacturers. For this reason, modern extrusion systems can incorporate multiple levels of quality monitoring, including:
l Wall thickness monitoring;
l Pipe diameter measurement;
l Vacuum calibration pressure monitoring;
l Surface inspection;
l Automatic defect detection.
The integration of these functions into the PVC double pipe extrusion line can help reduce the influence of operator error and improve process consistency.
The implementation of a PVC double pipe production line can help manufacturers reduce the overall cost per unit of production. Key economic benefits may include:
l Reduced electricity consumption per unit of output;
l More efficient raw material utilization;
l Lower labor requirements;
l Higher equipment utilization;
l Increased production capacity;
l Faster return on investment.
By producing two pipes simultaneously, manufacturers can make more effective use of their extrusion equipment and production area. This can be particularly beneficial for companies targeting large-volume PVC pipe production.
Modern PVC double pipe extrusion lines can be designed with energy-saving and environmentally responsible production concepts in mind.
Closed-loop cooling systems can reduce water consumption, while the collection and recycling of production scrap can help minimize material waste.
PVC production waste can also be recycled in appropriate applications and formulations. With proper process management, manufacturers can improve material utilization and reduce the environmental impact associated with plastic pipe production.
Automation plays an important role in the operation of a PVC double pipe production line. Modern control systems can:
l Automatically regulate extrusion parameters;
l Reduce the possibility of operator errors;
l Improve production stability;
l Provide continuous process monitoring;
l Record key production data;
l Improve production consistency.
Automation becomes particularly important in high-volume production, where stable control of temperature, pressure, extrusion speed, haul-off speed, and cutting length is essential.
The future development of PVC double pipe extrusion lines will increasingly focus on digitalization, automation, energy efficiency, and intelligent manufacturing.
l Potential development directions include:
l More highly automated production lines;
l Integration with smart factory systems;
l Predictive maintenance and data analytics;
l Improved energy efficiency;
l Advanced process monitoring;
l Wider ranges of pipe sizes and applications;
l More intelligent production management systems.
These innovations will make the PVC double pipe production line more efficient, flexible, and suitable for the changing requirements of the global plastic pipe industry.
In one modern manufacturing facility, a new PVC double pipe extrusion line was installed to increase production capacity without expanding the existing production area.
Following the installation and optimization of the equipment, the manufacturer reported a significant increase in output, together with improved production efficiency and more stable pipe quality.
The management team considered the installation of the PVC double pipe production line an important step toward improving manufacturing efficiency and strengthening the company's competitiveness in the plastic pipe market.
A modern PVC double pipe production line is a high-performance solution for manufacturers seeking to increase plastic pipe production efficiency. By combining dual-pipe extrusion, automation, energy-efficient technologies, and precise process control, the PVC double pipe extrusion line can provide higher productivity while making better use of production space and equipment.
As demand for PVC pipes continues to grow in construction, water supply, drainage, agriculture, and infrastructure projects, double-pipe extrusion technology is expected to play an increasingly important role in modern plastic pipe manufacturing.
For manufacturers looking to improve production capacity, reduce unit costs, and achieve stable product quality, a properly configured PVC double pipe production line can be an effective solution for modern industrial production.
