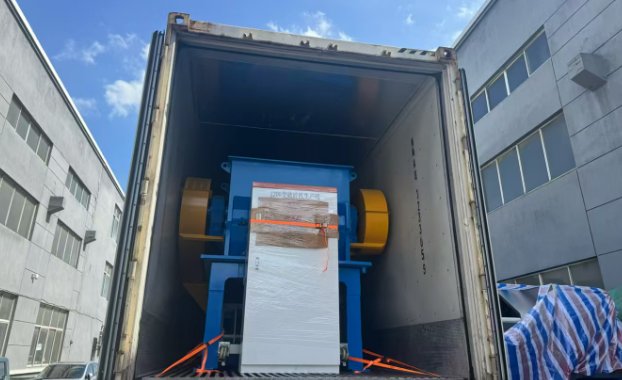

Big-bag Washing and Shredding Line Shipped to Customer

Recently, our company completed the production and delivery of a complete Big-bag washing and shredding line for a customer. The line is designed for recycling used PP big bags and woven bags, helping turn bulky and contaminated plastic waste into clean recycled material for further processing.

As a manufacturer of plastic machinery and recycling equipment, we understand that used big bags can be difficult to handle. They are large in size, lightweight, flexible, and often contain dust, soil, fibers, labels, and other impurities. A suitable recycling process is therefore important for achieving stable production and good-quality recycled material.

For this project, the equipment was arranged according to the customer's raw material and production requirements. The complete line combines shredding, crushing, washing, dewatering, drying, and material conveying processes.

Why Choose a Big-bag Recycling Line?

Big bags are widely used for packaging and transporting powder, granules, agricultural products, chemicals, minerals, and other bulk materials. After use, many of these bags are mainly made from polypropylene and can still be recycled.

Directly disposing of used bags not only creates additional plastic waste but also means losing a potentially useful material resource. Through mechanical recycling, waste big bags can be processed into clean PP flakes and then reused in suitable plastic applications.

The main challenge is that the original bags are much larger than the final recycled flakes. They also tend to wrap around rotating equipment if they are fed into the wrong machine. This is why the first size-reduction stage is particularly important.

A properly designed Big-bag washing and shredding line can gradually reduce the material size while removing contaminants, rather than trying to process the entire bag in a single step.

How Does the Big-bag Washing and Shredding Line Work?

The working process can be adjusted according to the condition of the incoming material. A typical production process starts with feeding the used big bags into the line.

The bags first enter a plastic shredder, which tears and cuts the large bags into smaller pieces. Compared with feeding whole bags directly into a high-speed crusher, shredding makes the material easier to transport and process in the following stages.

After primary shredding, the material can enter a plastic crusher for further size reduction. The crusher cuts the shredded PP material into smaller flakes with a more suitable size for washing.

The material then moves into the washing section. Depending on the level and type of contamination, the line can use washing tanks, friction washing machines, or other cleaning equipment. The washing process removes dust, soil, sand, and other contaminants attached to the plastic surface.

After washing, the wet plastic flakes pass through a dewatering machine. Most of the water is removed mechanically before the material enters the drying section.

Finally, the clean and relatively dry PP flakes are collected and can be stored for further use or sent to a pelletizing system.

What Is the Role of the Plastic Shredder?

The plastic shredder is one of the key machines in the first stage of the recycling process.

Used big bags are large and flexible. If they are fed directly into a high-speed plastic crusher, the material may be difficult to feed continuously and can increase the operating load of the equipment.

The shredder works at a relatively lower speed with high torque. Its main purpose is to tear and cut bulky plastic materials into manageable pieces.

For big bags, this first step can make the entire recycling process more stable. It also prepares the material for the next crushing and washing stages.

The exact shredder configuration depends on factors such as bag size, material thickness, contamination, and required capacity.

Why Is a Plastic Crusher Used After Shredding?

Shredding and crushing are not exactly the same process.

The plastic shredder is mainly responsible for breaking down large bags and bulky waste. The plastic crusher is then used to further reduce the material into smaller flakes.

Using these two machines in sequence allows each machine to perform the job it is designed for. It can also make the material size more suitable for the washing equipment.

For customers who process large quantities of used big bags every day, this combination can provide a practical solution for continuous recycling.

Washing and Drying of Recycled PP

Size reduction alone is not enough to produce usable recycled material. Used big bags can carry a considerable amount of dust and other contaminants, particularly when they have been used outdoors or for agricultural products.

The washing section is therefore designed to separate contaminants from the PP material. The number and type of washing machines can be changed according to the actual condition of the waste.

After washing, effective dewatering and drying are also important. Excessive moisture can affect subsequent storage, transportation, or extrusion.

The dewatering machine removes most of the water mechanically, while the drying system further reduces moisture before the recycled flakes are collected.

Can the Line Produce Recycled Plastic Pellets?

Yes. If the customer requires recycled PP pellets rather than flakes, a pelletizing system can be connected after the washing and drying section.

The clean material is fed into an extruder, where it is heated and plasticized. The molten PP passes through a filtration system before being formed into recycled plastic pellets.

The extrusion and filtration configuration depends on the cleanliness of the recycled material and the required final product quality. For relatively clean material, a standard extrusion system may be suitable. More contaminated material may require stronger melt filtration.

Adding an extruder and pelletizing section allows the recycling process to continue from waste big bags to finished recycled PP pellets.

Equipment Configuration Can Be Customized

There is no single equipment configuration that is suitable for every big-bag recycling project. The condition of waste bags can vary considerably from one application to another.

Some bags may be relatively clean and only require basic washing. Others may contain a large amount of soil, sand, dust, or other contaminants and require a more intensive washing process.

For this reason, we consider several factors when designing a Big-bag washing and shredding line, including the type of raw material, contamination level, required capacity, desired flake size, moisture requirements, available workshop space, and final application of the recycled material.

The line can be supplied as a complete recycling system or configured with selected machines according to the customer's existing equipment.

Reliable Equipment for Plastic Recycling

As a professional plastic machinery manufacturer, our products cover plastic recycling, washing, shredding, crushing, extrusion, and pelletizing applications.

For a Big-bag washing and shredding line, our focus is not simply on supplying individual machines. We pay attention to the complete material flow, equipment matching, operating convenience, and maintenance requirements.

The recently delivered line provides the customer with a practical solution for processing used PP big bags. Through shredding, crushing, washing, dewatering, and drying, waste bags can be converted into cleaner recycled PP flakes. With an additional extruder and pelletizing system, these flakes can be further processed into recycled plastic pellets.

If you are planning a new big-bag recycling project or looking to upgrade an existing plastic recycling system, we can design the equipment configuration according to your material characteristics, production capacity, and final product requirements.
