Advantages and Disadvantages of a Screen Changer for Pipe Dies on a Plastic Pipe Extrusion Line

Questions and Answers About the Advantages and Disadvantages of a Screen Filter (Screen Changer) on a PVC/PP/PE Plastic Pipe Production Line

Introduction

In a modern plastic pipe production line, the quality of the finished products depends not only on the characteristics of the raw materials and the output capacity of the equipment, but also on the stability of the extrusion process. One important component of a pipe extrusion line is the screen filter (screen changer), which is installed between the PVC/PP/PE pipe extruder and the extrusion die. Its main function is to remove impurities and foreign particles from the molten polymer, helping improve the quality and consistency of the finished pipes.

However, despite its many advantages, a screen changer also has certain disadvantages. The following questions and answers explain the role, benefits, limitations, and selection considerations of a screen changer on a PVC/PP/PE plastic pipe production line.

Question 1. What is a screen filter (screen changer) on a PVC/PP/PE pipe extrusion line?

Answer:

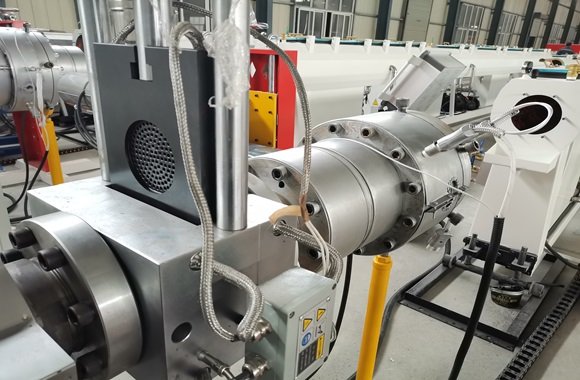

A screen filter is a specialized device installed between the extruder and the forming die on a PVC/PP/PE plastic pipe production line. The device contains metal filter screens with different filtration grades through which the molten polymer passes.

The main function of the filter is to remove metal particles, unmelted material, dust, fibers, and other contaminants that may negatively affect pipe quality. By filtering the melt, the PVC/PP/PE extrusion line can operate more stably and produce higher-quality pipes.

Question 2. Why is a screen changer an important component of a PVC/PP/PE plastic pipe production line?

Answer:

During the processing of PVC or polyolefin materials, various impurities may enter the polymer melt. If these contaminants are not removed, they may cause defects such as:

l Rough surface;

l Black spots;

l Air bubbles;

l Unstable wall thickness;

l Reduced mechanical strength.

Using a screen filter can significantly reduce the possibility of these defects and improve the stability of the PVC/PP/PE plastic pipe extrusion line.

Question 3. What are the advantages of using a screen changer?

Answer:

There are several important advantages.

First, a screen changer can significantly improve the quality of the finished products. The polymer melt becomes cleaner and more uniform, helping produce pipes with a smoother surface and more consistent dimensions.

Second, it can help extend the service life of the extrusion die. Since contaminants are captured by the filter, the working surfaces of downstream components are less likely to be affected by hard particles.

In addition, a PVC/PP/PE pipe production line can operate more consistently when processing certain types of recycled or reprocessed materials.

Another important advantage is the reduction of production waste and defective products, which is particularly valuable for high-output manufacturing facilities.

Question 4. Can recycled materials be used when a screen changer is installed?

Answer:

Yes. This is one of the important advantages of using a screen filter.

In many cases, recycled materials may contain mechanical impurities. Without adequate filtration, these contaminants can affect equipment performance and reduce the quality of the finished pipes.

With a screen filter, the amount of solid contamination entering the extrusion die can be reduced. As a result, a PVC/PP/PE plastic pipe production line can process certain recycled materials more effectively, provided that the material formulation and filtration system are properly selected.

Question 5. What types of screen changers are available?

Answer:

Manufacturers of PVC/PP/PE pipe extrusion lines use several main types of screen-changing systems.

Common types include:

l Manual screen changers;

l Hydraulic screen changers;

l Continuous automatic screen changers;

l Dual-position screen changers;

l Non-stop screen changers.

For modern PVC/PP/PE pipe production lines, hydraulic and automatic models are widely used because they can reduce downtime and, depending on the design, allow filter screens to be changed while maintaining continuous or near-continuous production.

Question 6. What are the disadvantages of a screen changer?

Answer:

Despite its advantages, a screen changer also has several limitations.

The first disadvantage is the additional resistance to the flow of the polymer melt. As the melt passes through the filter screen, pressure upstream of the screen changer may increase.

The second disadvantage is that the filter screens require regular replacement or cleaning. During intensive operation, the screens gradually become clogged with contaminants.

In addition, installing an automatic screen changer increases the initial investment cost of the entire PVC/PP/PE extrusion line.

Question 7. Can a filter reduce production capacity?

Answer:

Yes, if the filter screen becomes heavily contaminated.

As the openings in the screen become blocked by impurities, the pressure before the filter increases. If the pressure becomes excessive, the operating conditions of the PVC/PP/PE pipe extruder may become unstable and the effective output may decrease.

Therefore, it is recommended to replace or clean the filter elements in a timely manner and continuously monitor melt pressure during production.

Question 8. When is a screen changer particularly necessary?

Answer:

A screen changer is especially useful in the following situations:

l Processing recycled or reprocessed materials;

l Manufacturing high-quality plastic pipes;

l Operating a high-speed PVC/PP/PE pipe extrusion line;

l Processing filled or modified polymer compounds;

l Running the extrusion equipment continuously for long periods.

In these applications, effective filtration can improve process stability and reduce the risk of production interruptions caused by contaminants.

Question 9. Does a screen changer require maintenance?

Answer:

Yes.

Regular maintenance generally includes:

l Cleaning the screen changer housing;

l Replacing or cleaning filter screens;

l Checking the hydraulic system;

l Monitoring operating temperature;

l Checking seals and connections for leakage.

Proper maintenance helps reduce the risk of unexpected downtime on a PVC/PP/PE plastic pipe production line.

Question 10. How does a filter affect pipe quality?

Answer:

When properly selected and operated, a screen filter can have a positive effect on pipe quality.

After filtration, the polymer melt can contain fewer solid contaminants and may flow more consistently through the extrusion die.

This can help manufacturers achieve:

l A smoother pipe surface;

l More consistent internal diameter;

l More uniform wall thickness;

l Stable mechanical properties;

l Reliable long-term pipe performance.

For this reason, many modern manufacturers of PVC/PP/PE pipe production equipment use screen changers as an important part of the extrusion system.

Question 11. Is an automatic screen changer always necessary?

Answer:

Not necessarily.

If a factory produces relatively small batches or uses consistently high-quality virgin raw materials, a manual screen changer may be sufficient for certain applications.

However, for factories operating a high-output PVC/PP/PE plastic pipe production line continuously or for long production cycles, an automatic screen changer can reduce downtime, simplify filter replacement, and improve overall production efficiency.

The appropriate configuration should be selected according to the material, output, contamination level, and production requirements.

Question 12. How do you choose a suitable screen changer?

Answer:

Several factors should be considered when selecting a screen changer:

l Output capacity of the PVC/PP/PE pipe extrusion line;

l Type of processed material, such as PVC, PE, or PP;

l Operating melt pressure;

l Extruder screw diameter;

l Required finished-product quality;

l Production volume;

l Level of contamination in the raw material;

l Required production continuity.

For high-output extrusion lines, hydraulic or automatic screen changers may be a suitable choice, particularly when continuous production and rapid screen replacement are important.

Question 13. Does a screen changer affect the service life of extrusion equipment?

Answer:

Yes, proper melt filtration can help protect downstream extrusion components.

By removing hard particles and contaminants from the polymer melt, a screen filter can reduce the potential for contamination-related wear on the extrusion die and other components of the PVC/PP/PE pipe extruder.

This may help reduce maintenance requirements and extend the service life of key components of the plastic pipe production line.

Question 14. What are the future development trends of screen changer technology?

Answer:

Modern manufacturers are developing increasingly intelligent filtration systems for pipe extrusion lines.

New-generation screen changers can be equipped with pressure sensors, automatic filter-contamination monitoring, hydraulic control systems, and remote monitoring functions.

These technologies can help operators identify increasing filter pressure at an early stage, schedule maintenance more effectively, reduce the risk of unexpected shutdowns, and improve the overall efficiency of the extrusion process.

Conclusion

A screen filter (screen changer) is an important component of a modern plastic pipe production line. Its use can help remove contaminants from the polymer melt, improve product quality, protect downstream extrusion components, and enhance the stability of the PVC/PP/PE extrusion line.

At the same time, manufacturers should consider the additional investment, pressure drop, filter replacement, cleaning, and maintenance requirements associated with a screen changer.

When properly selected and operated, a screen changer can be a valuable investment, especially for manufacturers processing recycled materials or operating extrusion equipment for long continuous production cycles.

Therefore, modern PVC/PP/PE pipe production lines focused on stable production, consistent product quality, and high efficiency may be equipped with manual, hydraulic, or fully automatic screen changers according to specific production requirements. A suitable filtration system can help improve process stability, reduce production waste, protect extrusion equipment, and enhance the competitiveness of finished plastic pipes in the market.
